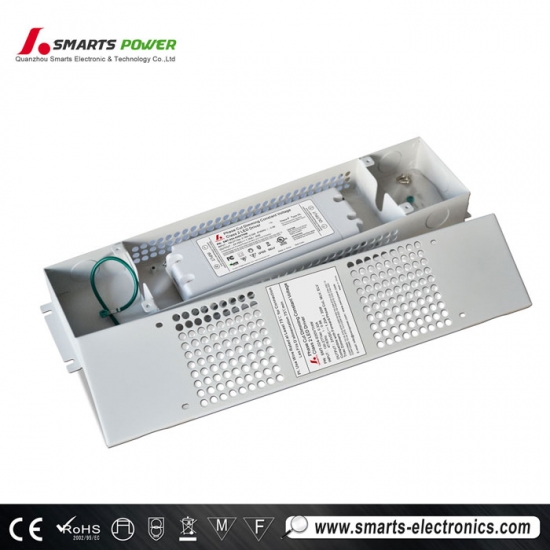

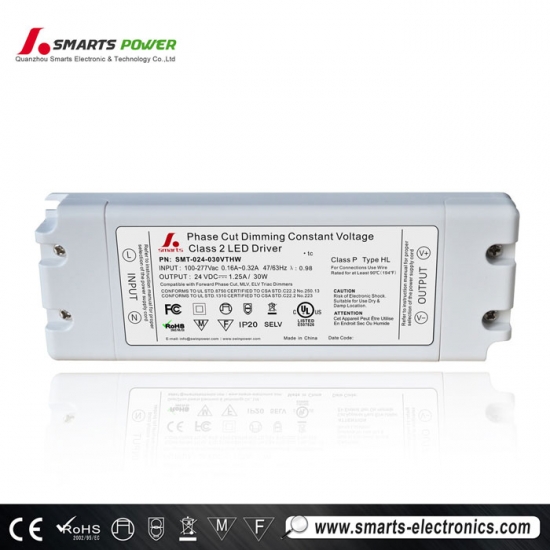

These constant voltage drivers combine a steady 24v dc led driver of output with a range of wattages to LED lighting systems like tape lights, strip lights, puck lights, etc. As you add LEDs to a lighting circuit, the driver will deliver more output current until it reaches its maximum available wattage.
We supply standard variety of Class 2 LED Driver,such as 24v DC LED Driver,30 Watt LED Drivers etc. |
Specification sheet
|
model |
SMT-012-030VTHW |
SMT-024-030VTHW |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
2.50A |
1.250A |
|
|
Load Regulation |
±1% |
||
|
Rated power |
30W |
30W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.98@277VAC |
0.98@120VAC 0.98@277VAC |
|
|
|
Full Load Efficiency（Typ.） |
>82% |
>81% |
|
AC Current（Typ.） |
0.53A/110VAC |
||
|
Inrush Current（Typ.） |
7.1A, 50%, 425us |
||
|
Leakage current |
<0.50mA |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling. |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.95KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level（surge4KV） |
||
|
Others |
Weight |
About 0.25Kg |
|
|
Size |
155*54*20mm (L*W*H) |
||
|
packing |
40PCS/CTN（L*W*H） |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |

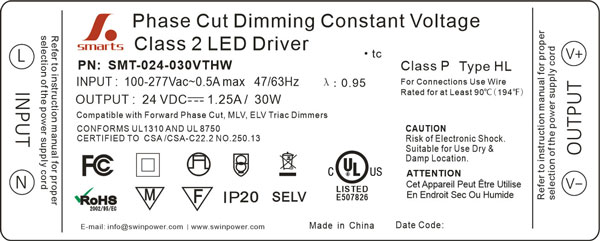

||
| Label |
 |
||
 |
 |
 |
 |

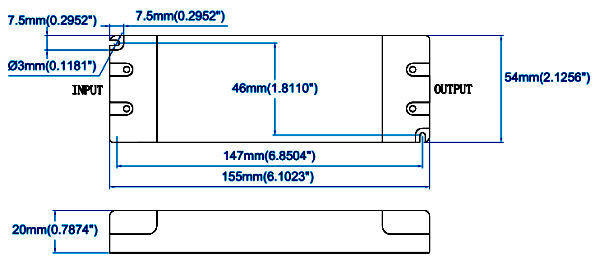

Mechanical Specification
Input (L) and (N) with wires to be connected AC.
Output LED SEC : Red wire to LED+, Black wire to LED-
Note: Any other requests we can customized.

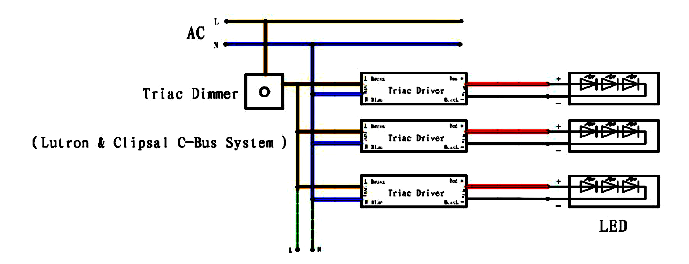

Connecting Diagram:
