Non-dimmable LED Driver

24volt led transformer 200w UL listed led driver switching power supply

Established in 1998, we are China LED lighting supplier and pride ourselves on offering high quality, cost effective LED driver solutions for domestic and overseas applications. Our 24v 200w UL listed led driver is UL/ETL/CE/ROHS listed.



  • item no.:

    SMT-024-200VWJ
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24VDC
  • Output Current:

    8.33A
  • Working Mode:

    Constant Voltage
  • Certification:

    UL cUL CE Rohs Listed
  • Warranty:

    7 Years Warranty
inquiry now
product details
24volt led transformer 200w UL listed led driver switching power supply


24 volt led transformer 200w led driver is 7 years warrantydesigned with full protection aluminum housing, for dry, damp location, suitable for LED lighting and moving sign applications.


  Specifications


Model

SMT-012-200VWJ

SMT-024-200VWJ

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

Rated current

16.67A

8.33A

Rated power

200W

Input

Voltage Range

100-277VAC

Frequency Range

4763HZ

Power FactorTyp.@ full load

0.99@120V ;0.98@230V ;0.97@277V

0.99@120V ; 0.97@230V ;0.96@277V

THDTyp.@ full load

<10% @120V    <20%@230V      <20% @277V

Inrush Current Typ.

15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V

Full Load

EfficiencyTyp.

>88%

>88%

AC CurrentTyp.

2.31A@110VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz 2G 10min./1 cycleperiod for 60min.each along X,Y,Z axes







Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11Surge 4KV

Others

Weight

1.8Kg

Size

260*103*46mm (L*W*H)

packaging

10PCS/CTN385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated

  load and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.

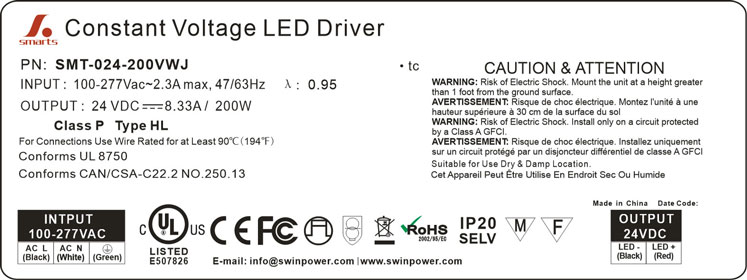

  Label
200w switching power supply

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Features


Output constant voltage type
UL, cUL listed, Class P, Type HL
Input voltage range 100-277VAC
Built-in PFC function / PF>0.97 / ·E fficiency > 88%
Protections:short circuit/over voltage/over heat
IP20 design for indoor or outdoor installations
Cooling by free air convection

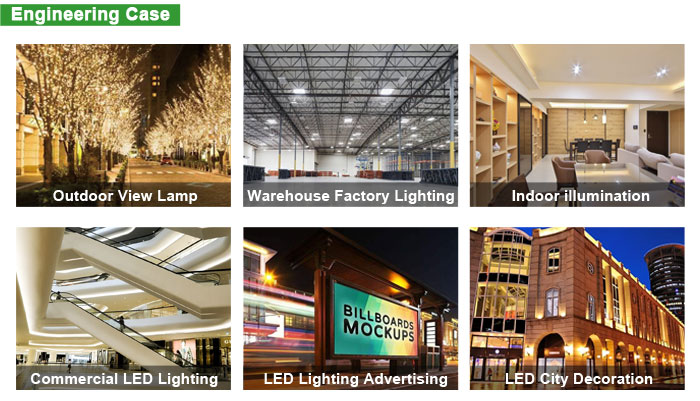

Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting.
7 years warranty


  Mechanical Specification

24v 200w UL listed led driver


※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output:14AWG Red to LED Positive side (+) , Black to LED Negative side (-).


  Instruction for LED Driver Power Supply

※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage


200w switching power supply
