regulated constant voltage 24v 96w led power supply ac to dc
regulated constant voltage 24v 96w led power supply ac to dc from Smarts Electronic offers CE ETL listed LEDs solution, This power supply are IP67 rated and are suitable for both indoor and outdoor installations. With universal input voltage ranging from 100 to 265VAC, this regulated power supply are designed for commercial, industrial and residential applications.
SPECIFICAION
MODEL
SMT-012-096VW
SMT-024-096VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
8.33A
4A
CURRENT RANGE
0~8A
0~4A
RATED POWER
96W
96W
RIPPLE&NOISE(max)
150mV
150mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
SETUP RISE TIME
80ms/110V,220VAC
HOLD UP TIME(Typ.)
60ms/110V,220VAC
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
0.95
EFFICIENCY(Typ.)
﹥87%
AC CURRENT(Typ.)
0.92A/110VAC, 0.86A/220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110VAC, 220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof IP67)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
CE ETL Mark(LVD)
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label
Features of power supply ac to dc
- CE ETL Listed
- Universal Input Voltage
- IP67 - For Both Indoor and Outdoor Use
- Class 2
- Auto-Reset Protection for Short Circuit and Over-Temperature
- Over Load Protection

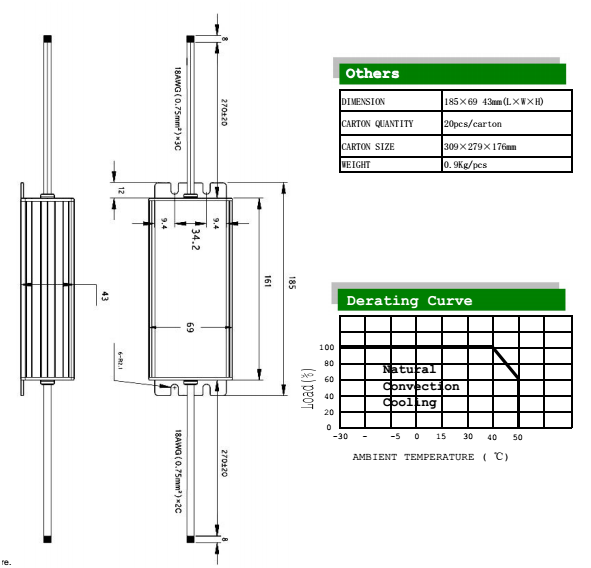

Mechanical Specification of regulated power supply :
- Cable Model of input : VDE H03VV-F 3G0.75mm2
- Cable Model of output: VDE H03VV-F 2*0.75mm2
