Non-dimmable LED Driver

AC 110V/220V to DC 12V 24V Led Regulated Transformer 4a 48w triac dimmable led driver for LED Light

Triac dimmable constant voltage led driver have high efficiency>0.95,high reliablitity and save energy,protected environment,long life time ect advantage.

we give 5 years warranty for 12v 24v dimmable led driver.all power supply are ETL CE ROHS approval.



  • item no.:

    SMT-012-048VT
  • lead time:

    7 working days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Western Union
  • price:

    $17.3
  • market price:

    $17.3
  • price range:

    1-50/17.3$
  • color:

    White
  • Input Voltage:

    100-130V/ 170-265V
  • Output Voltage:

    12
  • Output Current:

    4A
  • Working Mode:

    constant voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    5 years
inquiry now
product details

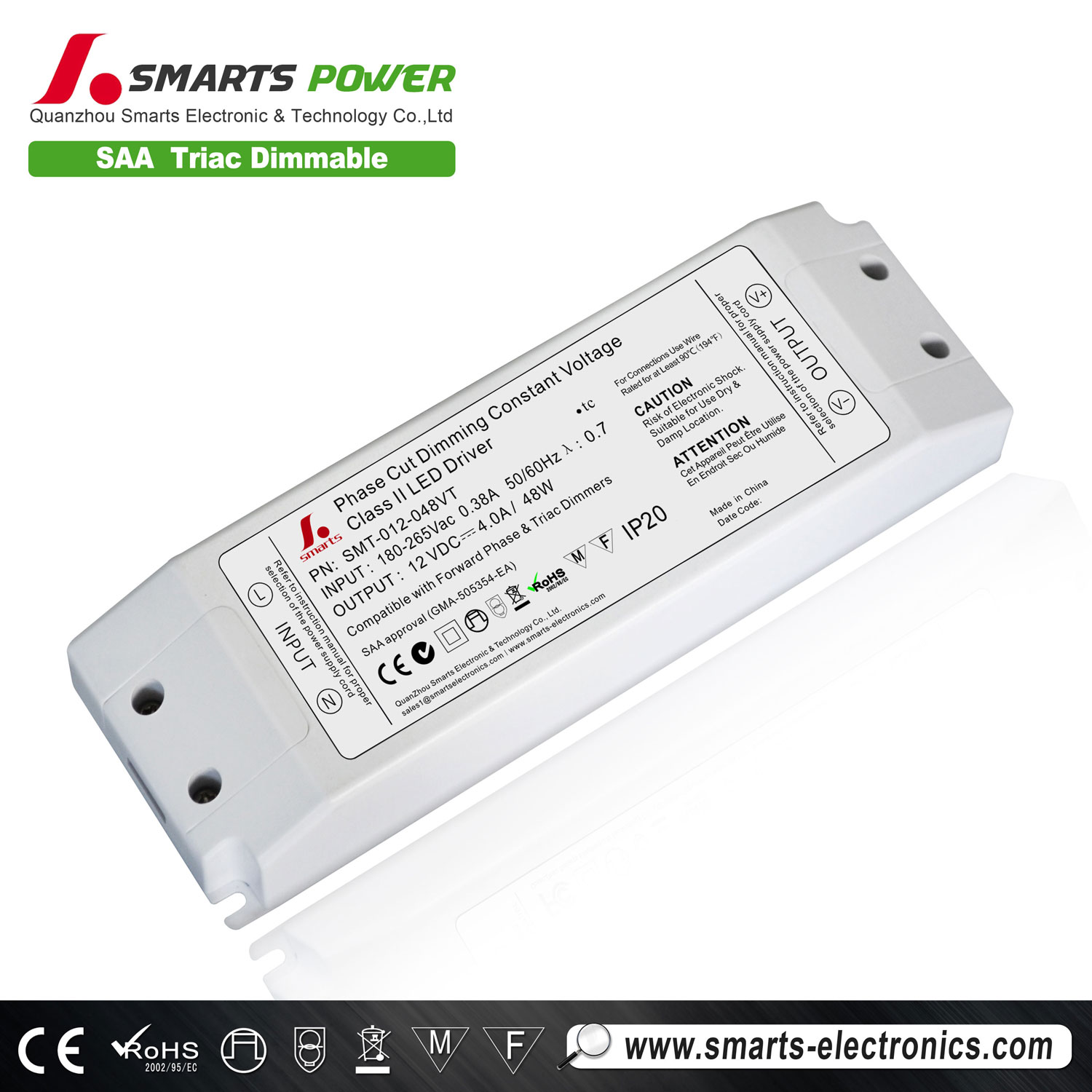

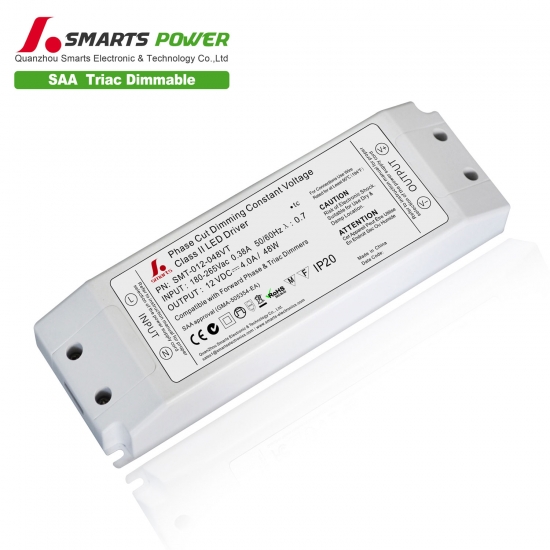

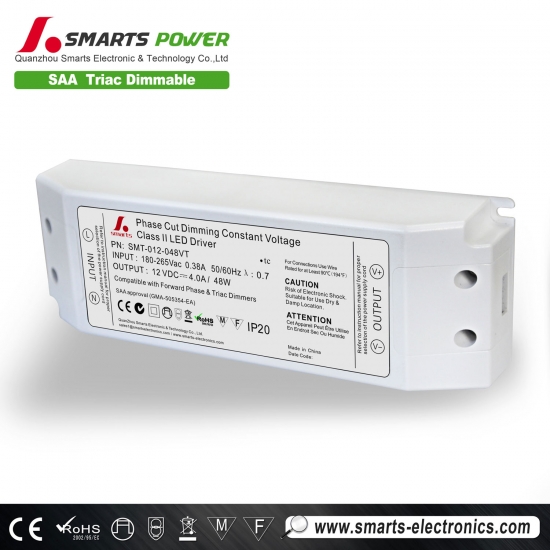

AC 110V/220V to DC 12V 24V Led Regulated Transformer  4a 48w triac dimmable led driver for LED Light


12v 48w triac dimming driver are our competitive product.12v 24v dimmable power supply are Universal AC input:90-135vAC/170-265vAC.It is follow the gloabl lighting safety regulations.


  Product Specification


Model SMT-012-048VT
Output DC Voltage 12V
Rated Current 4A
Rated Power 48w
Input Voltage Range 100-130V AC/170-265V AC
Frequency Range 47-63Hz
PF >0.95
Efficiency >85%
Environment Working Temp. -40~+60℃
Storage Temp.,Humidity -40~+80
Temp. coefficient ±0.03%/℃(0~50℃)
Others Size 178*61*24mm
IP code IP20
Packing 350*195*180mm,30pcs/ctns
Warranty 5 years
Certificate CE/ROHS/ETL/FCC
Delivery 7 working days for sample order,12 working days for 500pcs
Payment terms

T/T,   Western Union,  Paypal, Trade Assurance


12V 48W DIMMABLE LED DRIVER

triac dimmable led driver


  FAQ



Q1.    What's the trade terms you can do??
A1:    We accept EXW,FOB..(Optional)

Q2.    What's shipping mode can we choose?
A2:    Express, Ocean and air transportation (optional).

Q3.    What's the MOQ?
A3:    Our MOQ is 10pcs. better price for large quantity;

Q4.    What can you do if the product is broken?
A4:    We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5.    Can i get products with my own logo??
A5:    Sure, you can, MOQ is 500pcs.



Q6.    Can i get a sample for testing??
A6:    Sure, but sample fees should be charged on your account.

Q7.    What's the mormal lead time??
A7:    7 working days for samples, 15 working days for mass production.

Q8.    What's the payment conditon?
A8:    All are paid before production or 30% deposit and 70% before delivery (optional)

Q9.    What's the Payment do you have?
A9:    We accept payment be sent via T/T, L/C,  Trade Assurance, WESTERN UNION, PAYPAL


triac dimming driver
