Non-dimmable LED Driver

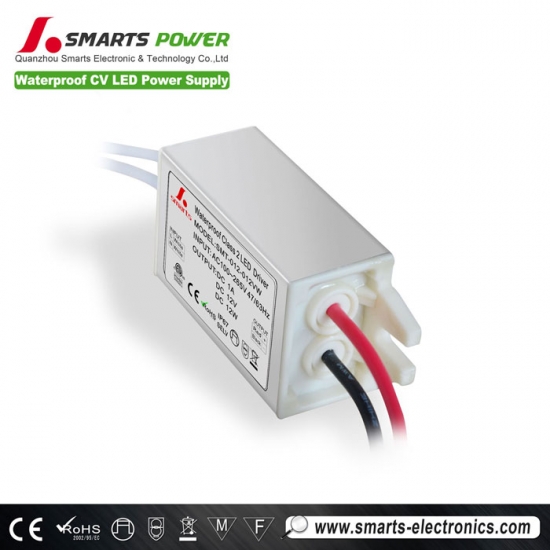

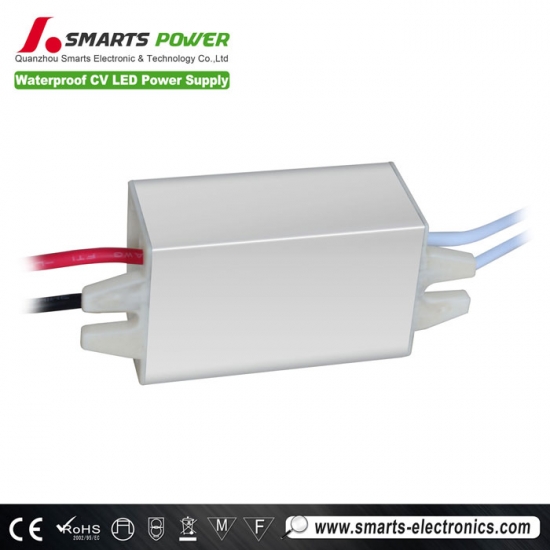

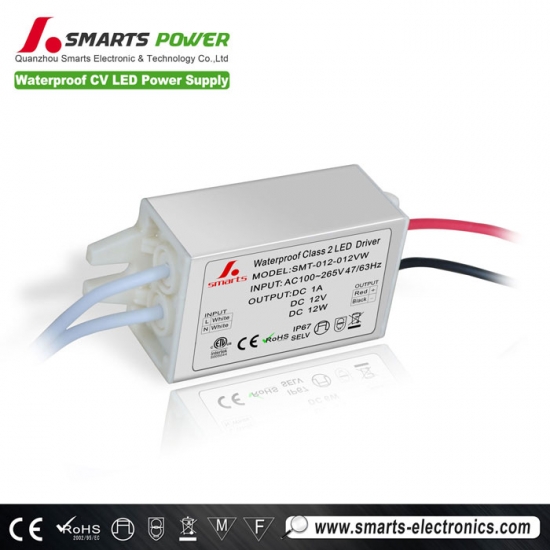

AC to DC 12V 12W Constant voltage LED driver

AC to DC 12V 12W Constant voltage LED power supply
  • item no.:

    SMT-012-012VW
  • lead time:

    15 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Trade Assurance
  • Input Voltage:

    100-265V
  • Output Voltage:

    12VDC
  • Output Current:

    1A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    2 years
inquiry now
product details

Product name: AC to DC 12V 12W Constant voltage LED driver



 SPECIFICAION


MODEL SMT-012-012VW SMT-024-012VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 1A 0.5A
CURRENT RANGE 0~1A 0~0.5A
RATED POWER 12W 12W
RIPPLE&NOISE(max) <700mV <400mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
INPUT VOLTAGE RANGE 90~265VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >81% >81%
AC CURRENT(Typ.) 0.20A @110VAC / 0.099A@220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION IP67 design for indoor or outdoor installations
STORAGE TEMP -40~+80℃
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13;SELV;IP67  UL, CE, ROHS approved
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25 of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label 10 watt 12w led driver IP67 mini led electronic driver


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver


 Specifications


1. Modle: SMT-012-012VW
2. Input: 100~265vAC / 47-63HZ
3. Output : 12V  1.0Amp  12Watt
4. Case material: Aluminum
5. Waterproof rate: IP67
6. Unit weight: 91g
7. Product size: 62*29*20 mm
8. Box size: 299*224*176mm
9. Pack qty: 50pcs/ctn
10.Pack weight: 9.2kg/ctn
11.Produt cord: 18AWG*20CM
13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)


 Features


1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test.
9. Suitable for LED lighting



 Environment


1. Working temp: -30~+50℃ (Refer to output load derating curve)
2. Working humidity: 20~99% RH non-condensing(Waterproof)
3. Storage temp. humidity: -40~+80℃,10~99%RH



 Safety


* Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
* Withstand Voltage : I/P-O/P: 3000KVAC
* Isolation Resistance : I/P-O/P:100M Ohms/500VDC



 Applications


Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks
