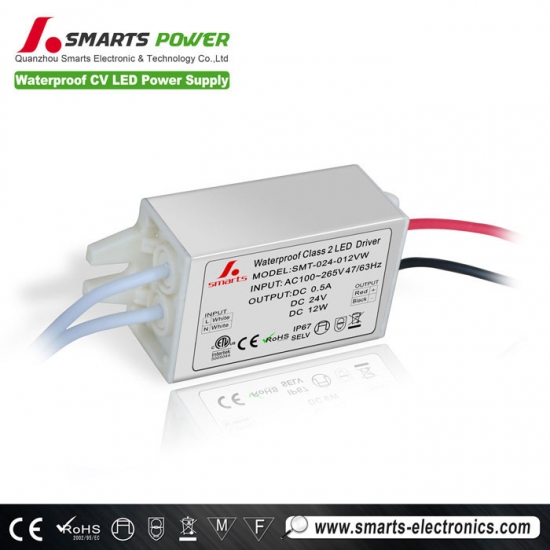

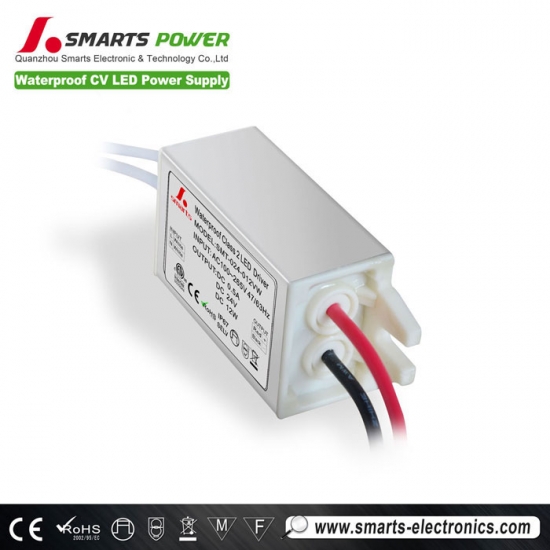

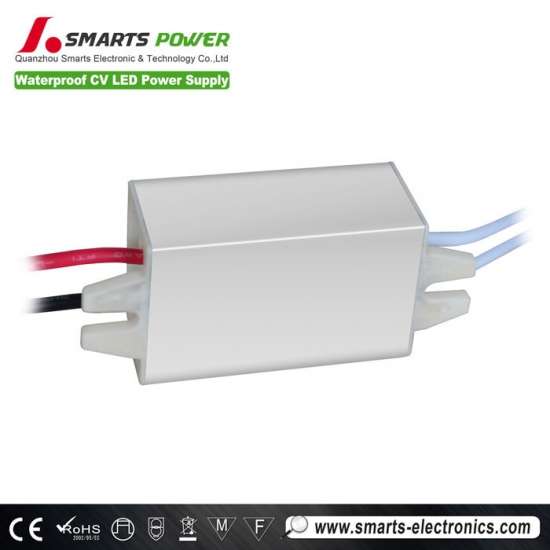

Product name: AC to DC 24V 12W Constant voltage LED power supply
SPECIFICAION
| MODEL | SMT-012-012VW | SMT-024-012VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | ||
| RATED CURRENT | 1A | 0.5A | |||
| CURRENT RANGE | 0~1A | 0~0.5A | |||
| RATED POWER | 12W | 12W | |||
| RIPPLE&NOISE(max) | <700mV | <400mV | |||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | |||
| INPUT | VOLTAGE RANGE | 90~265VAC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR(Typ.) | |||||
| EFFICIENCY(Typ.) | >81% | >81% | |||
| AC CURRENT(Typ.) | 0.20A @110VAC / 0.099A@220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | |||
| INGRESS PROTECTION | IP67 design for indoor or outdoor installations | ||||
| STORAGE TEMP | -40~+80℃ | ||||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||
| Label |
 |
||||
 |
 |
 |
 |
 |
|
Specifications
1. Modle: SMT-024-012VW
2. Input: 100~265vAC / 47-63HZ
3. Output : 24V 0.50Amp 12Watt
4. Case material: Aluminum
5. Waterproof rate: IP67
6. Unit weight: 91g
7. Product size: 62*29*20 mm
8. Box size: 299*224*176mm
9. Pack qty: 50pcs/ctn
10.Pack weight: 9.2kg/ctn
11.Produt cord: 18AWG*20CM
13.Two years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test.
9. Suitable for LED lighting
Environment
1. Working temp: -30~+50℃ (Refer to output load derating curve)
2. Working humidity: 20~99% RH non-condensing(Waterproof)
3. Storage temp. humidity: -40~+80℃,10~99%RH
Safety
* Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
* Withstand Voltage : I/P-O/P: 3000KVAC
* Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications
Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks
* Vehicle Lights Controller Panels，etc.
