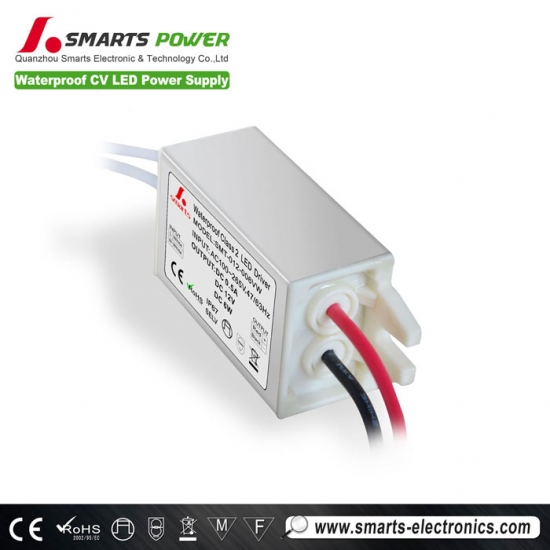

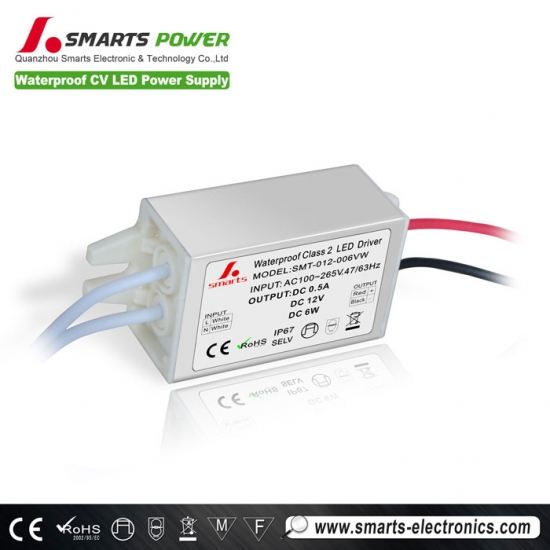

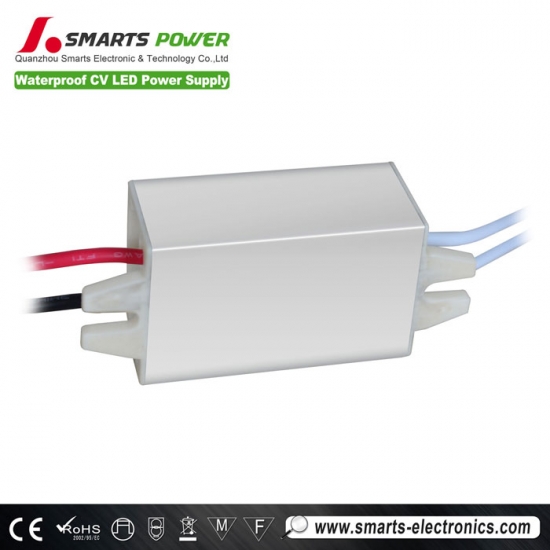

Product Name:AC to DC 12V 6W Constant voltage LED driver SMT-012-006VW
Specifications
1. Modle: SMT-012-006VW
2. Input:100~265vAC / 47-63HZ
3. Output :12V 0.50Amp 6Watt
4. Case material: plastic / Aluminum
5. Waterproof rate: IP20/IP67
6. Unit weight: 29g
7. Product size: 51*27*23 mm(IP20)/62*29*20(IP67)
8. Box size:299*224*176mm
9. Pack qty: 200pcs/ctn
10. Pack weight: 6kg/ctn
11. Produt cord:connecting terminal(IP20) / 18AWG*20CM
SPECIFICAION
MODEL
SMT-012-006VW
SMT-024-006VW
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
1A
0.5A
CURRENT RANGE
0~0.5A
0~0.25A
RATED POWER
6W
6W
RIPPLE&NOISE(max)
<700mV
<400mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
INPUT
VOLTAGE RANGE
100~265VAC
FREQUENCY RANGE
47~63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.)
>80%
>81%
AC CURRENT(Typ.)
0.090A/100~220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentioned are measured at 110V ~ 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Label
 |
 |
 |
 |
Features
1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test.
9. Suitable for LED lighting
Safety
· Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
· Withstand Voltage : I/P-O/P: 3000KVAC
· Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Applications
Our products are widely used in various industries, such as
· indoor LED illuminating lights,
· LED Neon,
· LED urban Decoration
· LED Lighting Advertising,
· LED Display,
· Safety Protection Apparatus,
· Telecommunications,
· Networks,
· Vehicle Lights, Controller Panels, etc.
