Non-dimmable LED Driver

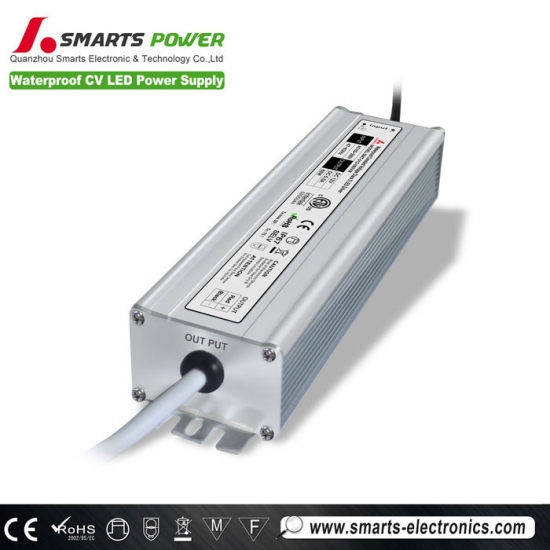

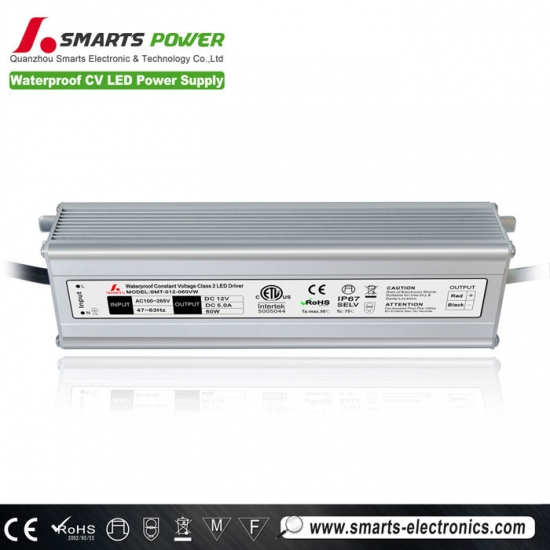

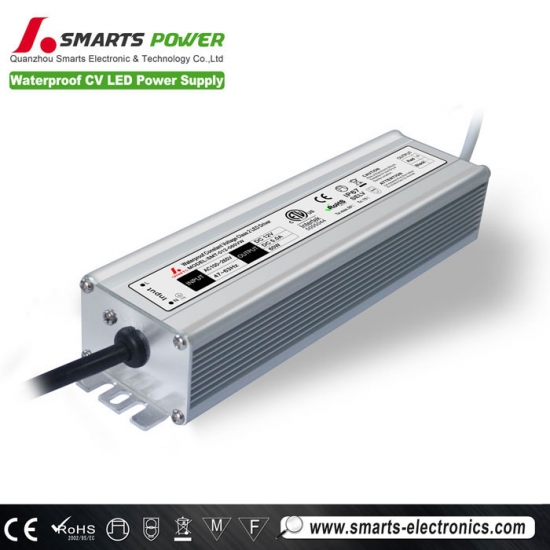

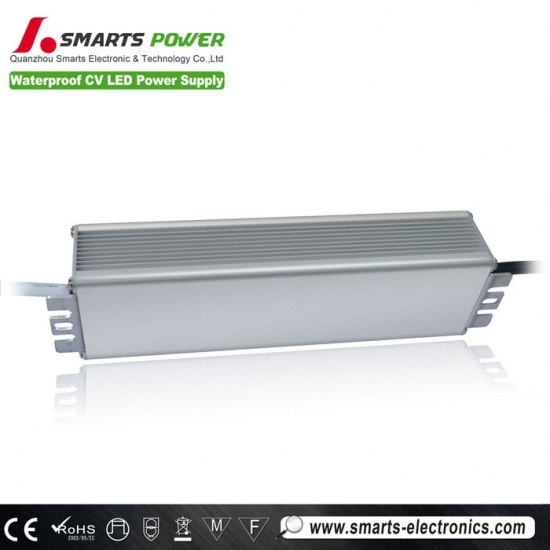

AC to DC 12 Volt 60 Watt Outdoor LED Power Supply

IP67 Outdoor Rating LED drivers step down 100 – 240 V A/C to 12V DC for L.E.D. strip lights and other L.E.D. products.
  • item no.:

    SMT-012-060VW
  • lead time:

    about 7 working days for sample order
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-265V
  • Output Voltage:

    12VDC
  • Output Current:

    5A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    2 years
inquiry now
product details

AC to DC 12 Volt 60 Watt Outdoor LED Power Supply



ETL Listed IP67 Outdoor Rating LED drivers step down 100 – 240 V A/C to 12V DC

for L.E.D. strip lights and other L.E.D. products.


 SPECIFICAION
MODEL SMT-012-060VW SMT-024-060VW SMT-036-060VW
OUTPUT DC VOLTAGE 12V 24V 36V
RATED CURRENT 5.0A 2.5A 1.66A
CURRENT RANGE 0~5.0A 0~2.5A 0~1.66A
RATED POWER 60W 60W 60W
RIPPLE&NOISE(max) 1.2V 1.2V 1.2V
voltage TOLERANCE 12V±5% 24V±5% 36V±5%
SETUP RISE TIME 80ms/110,220VAC 80ms/110,220VAC 80ms/110,220VAC
HOLD UP TIME(Typ.) 60ms/110,220VAC 60ms/110,220VAC 60ms/110,220VAC
INPUT VOLTAGE RANGE 90~135/170~265Vac 90~135/170~265Vac 90~135/170~265Vac
FREQUENCY RANGE 50~60Hz 50~60Hz 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥84% ﹥84% ﹥84%
AC CURRENT(Typ.) 0.5A/110V,220VAC 0.5A/110V,220VAC 0.5A/110V,220VAC
INRUSH CURRENT (Typ.) COLD START 30A/110,220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload [email protected]% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS UL, CE Mark(LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
3.Tolerance:includes set up tolerance,line regulation and load regulation.

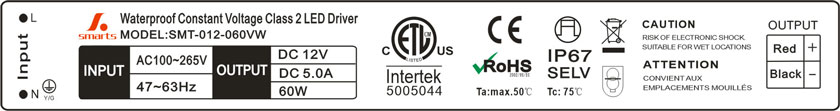

 Label  AC to DC 12 Volt 60 Watt Outdoor LED Power Supply


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver


 Feature of 12v 60w led power supply


IP67 design for indoor or outdoor installations
Protections:Short circuit/Overload/Over temperature
Cooling by free air convection
100% full load burn-in test
Suitable for LED lighting
Products through ETL,CE,RoHS Certification

2 years warranty




 Mechanical Specification of 60w 12v dc power supply


DIMENSION 190*48*34mm (L×W×H)

CARTON QUANTITY 30pcs/carton

CARTON SIZE 324×298×188mm

WEIGHT 550g/pcs




 SAFETY&EMC of 12v 60w power supply


SAFETY STANDARDS :CE Mark(LVD),IP67

WITHSTAND VOLTAGE : I/P-O/P:1.5KVAC IP-GND:1.5KVAC

EMC Test Standards:

EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006

EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006



 ENVIRONMENT


WORKING TEMP. : -30~+50℃ (Refer to output load derating curve)

WORKING HUMIDITY : 20~99% RH non-condensing(Waterproof)

STORAGE TEMP.,HUMIDITY : -40~+80℃,10~99%RH



 PROTECTION


Short circuit

Protection type:recovers automatically after condition is removed

Overload

overload [email protected]% above peak rating

Over temperature

Protection type:Shut down o/p voltage,re-power on to removed
