Non-dimmable LED Driver

best Electronic Eall LED Dimmer Switch 230v

SMT300-R-T2 is the best led dimmer switch which provides the best dimming performance for dimmable LED bulbs

  • item no.:

    SMT300-R-T2
  • lead time:

    About 7 days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen Port, Shenzhen Port, Ningbo Port etc.
  • payment:

    T/T, Paypal, Western Union, Creadit Card
  • market price:

    $16.67
  • color:

    White
  • Input Voltage:

    220-240V
  • Working Mode:

    Trailing edge
  • Certification:

    CE certification
  • Warranty:

    2 years
inquiry now
product details


best Electronic Eall LED Dimmer Switch 230v



Smarts Electronics provide wall dimmer switch for Single Color LED Strip, which is easy Installation. Without extra wiring as traditional switch.  You can manually turn on or off your strip or adjust the light intensity by turning the knob.


1.Technical Patermeters for wall dimmer switch:

Input Voltage: 220V/240V

Frequency: 50/60Hz

Working temp.: -20-40℃

Load: 12W-300W

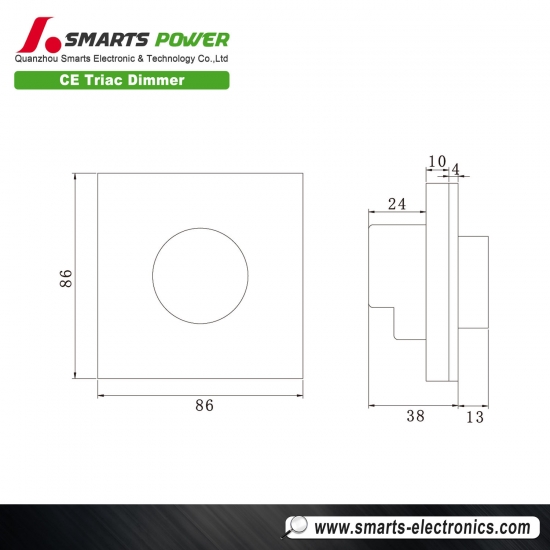

Size: 86*86*51mm(L*W*H)

Weight: 190G


2. Feature for electronic dimmer:

1) Soft locking.

2) Only connect L(LIVE).

3) Dimming operation: Knob pannel with a rotary.

4) Phase-cut model: trailing edge dimming.

5) Memory function: remember the last brightness when turn on dimmer again

6) Over current protection.

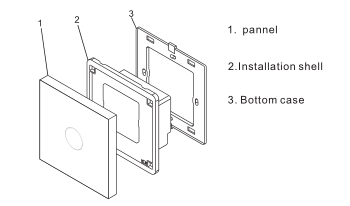

3. Part of device for best led dimmer switch:

electronic dimmer switch

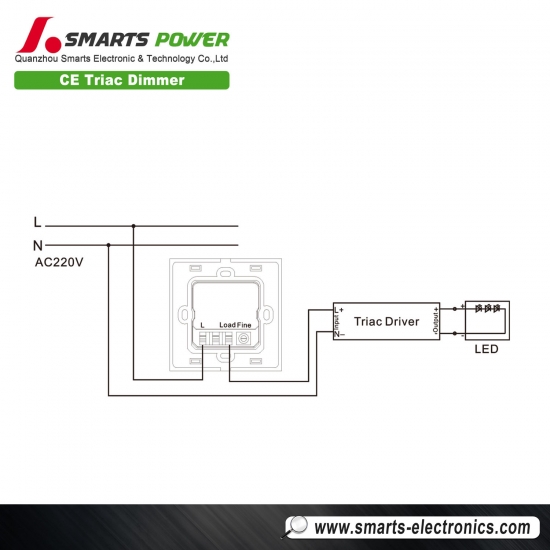

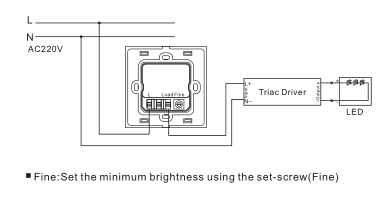

4. Wiring diagram for electronic dimmer switch:


electronic dimmer switch


5.Operation for dimmer 230v:

Turn on/off dimmer by short press knob.

When dimmer is on, turn knob to dim brightness

Turn off dimmer and then turn on again, dimmer will remember the last brightness


6.Working principle for dimmer 230v:

1. Dimming pinciple: Phase-cut sine wave.

2. Control the driver to soft start to achieve continuous, soft dimming.

3. Over-current protection, pretend the driver and dimmer from the damage caused by huge current

4.A fine to set the minimum brightness to prevent the flicker caused by the influence when it is starting.

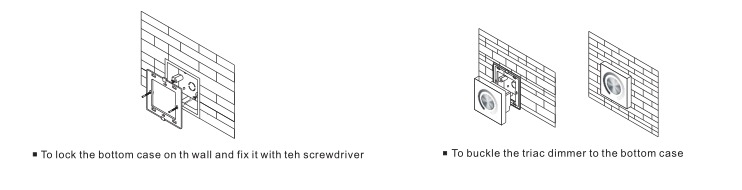

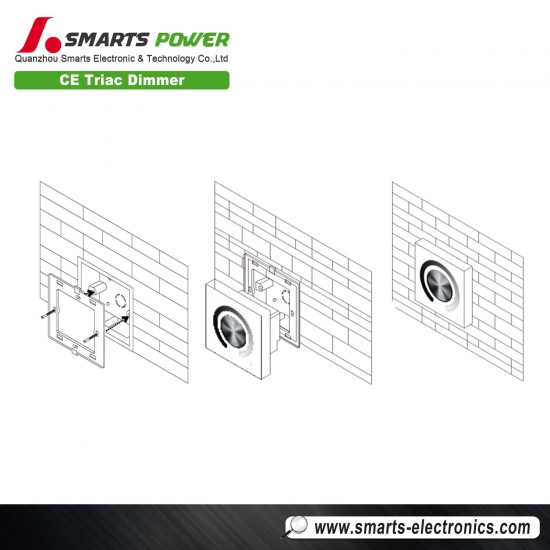

7. Instruction mannal for electric dimmer:

electronic dimmer switch
