LED Lamp Dimmable Wall Switch 220v
Smarts Electronics has issued series 220v dimmer which are suitable for Europen. Those lamp dimmer switch are overload & overheat protections, make your home safer. Single live wire control, easy to install, replace the old switch directly.
1.Technical Patermeters for lamp dimmer switch:
Input Voltage: 220V/240V
Frequency: 50/60Hz
Working temp: -20-40℃
Load: 12W-300W
Size: 86*86*51mm(L*W*H)
Weight: 190G
2. Feature for wall switch:
1) Only connect L(LIVE).
2) Dimming operation: Knob pannel with a rotary.
3) Phase-cut model: leading edge dimming.
4) Memory function: remember the last brightness when turn on dimmer again.

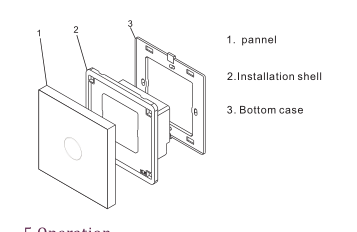

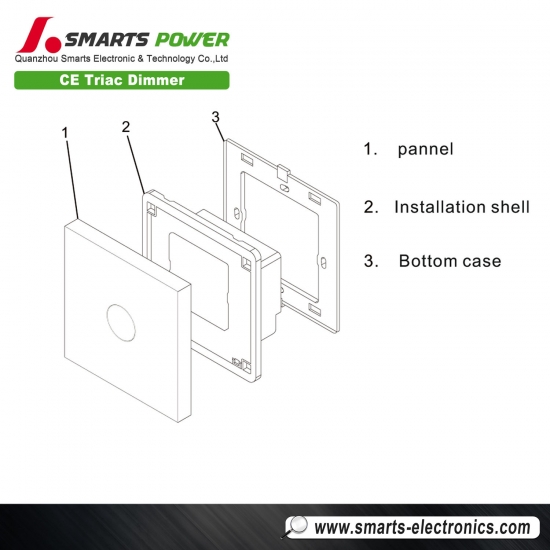

3. Part of device for dimmable switch:

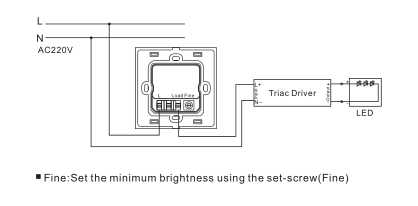

4. Wiring diagram for dimmer 220v dimmer
Fine:Set the minimum brightness using the set-screw(Fine)
5.Operation for 220v dimmer:
Turn on/off dimmer by short press knob.
When dimmer is on, turn knob to dim brightness.
Turn off dimmer and then turn on again, dimmer will remember the last brightness.
6. Working principle for led dimmable switch:
1. Dimming pinciple: Phase-cut sine wave.
2. A fine to set the minimum brightness to prevent the flicker caused by the influence when it is starting

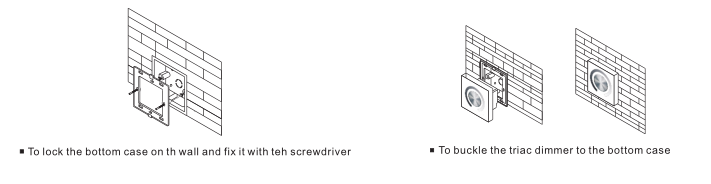

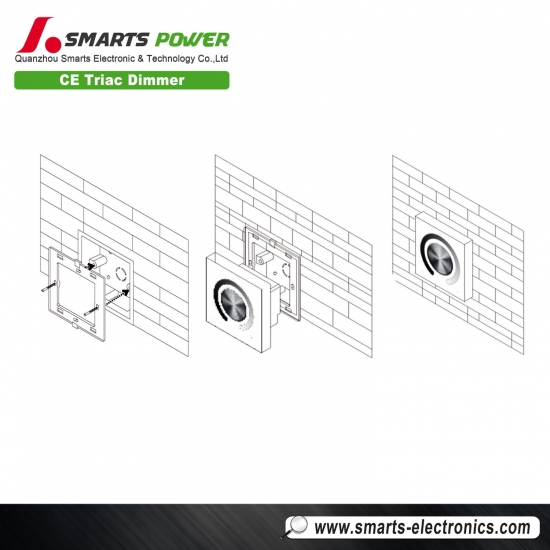

7. Instruction mannal for dimmable switch
If we found any defective products within warranty ,what Smarts should us do for the defective product ?
We give 3 years warranty for 220v dimmer. If clients use properly, hardly any of feedback from our clients about the led drivers can not work or damaged during warranty time..
We do not make up for new replacement if we find damage cames from inappropriate use of clients, But if confirm that damage cames from 220v dimmer itself, pls collect and keep all defective 220v dimmer. We promised to replace a new one/
