Touch Trailing Edge Dimmer LED Light Switch

This sturdy wall mounted trailing edge dimmer is reliable, easy to install and easy to use. Its compatible will all single color LED strips and silent touch, keep your home or office silence. Smarts Electronics has Triac dimmable led driver, 0-10V dimmable led driver and DALI dimmable led driver, and we have dimmer light switch can match with our dimmable led drivers.

1.Technical Patermeters for dimmer led:

Input Voltage: 220V/240V

Frequency: 50/60Hz

Working temp: -25-40℃

Load: 12W-250W

Size: 86*86*38mm(L*W*H)

Weight: 170G

2. Feature for dimmer light switch:

1) Only connect L(LIVE).

2) Dimming operation: Touch pannel with three touch botton.

3)Phase-cut model: trailing edge dimming.

4)Memory function: remember the last brightness when turn on dimmer again.
5) Over current protection

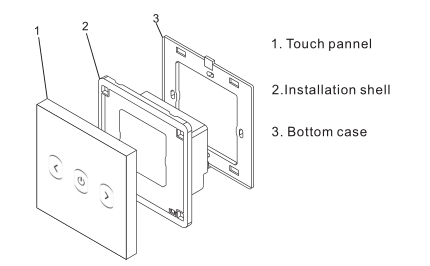

3. Part of device for dimmer for led lights

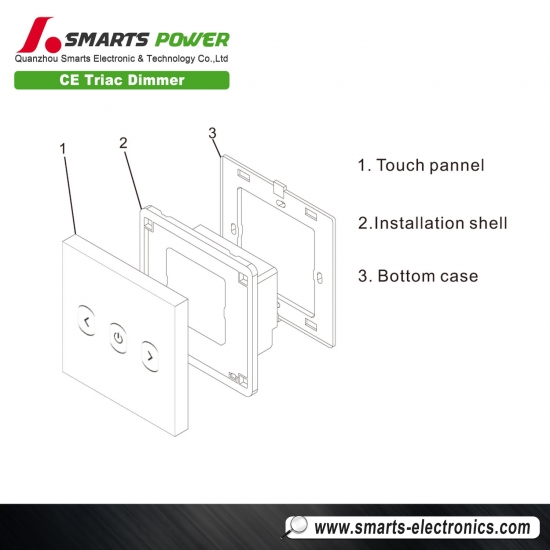

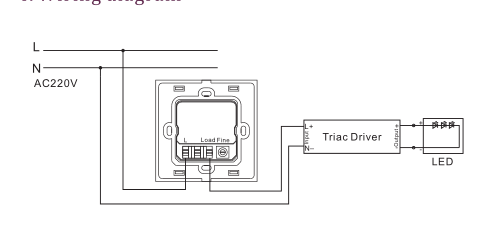

4. Wiring diagram for trailing edge dimmer

Fine:Set the minimum brightness using the set-screw(Fine)

5.Operation for touch dimmer switch

When dimmer under turn off status,Press the Touch key ( ) to turn on the dimmer,and dimmer recover the status(dimming level ) same as last time before it turning off.
When dimmer under turn on status, press the Left ( ) Key the brightness down; press the Right ( ) Key,the brightness up; press on the ON/OFF ( ) Key ,dimmer shut down.

6.Working principle for touch dimmer switch

1. Working pinciple :Sine wave phase-cut.

2. Control the driver to soft start to achieve continuous,soft dimming.

3. Over-current protection,pretend the driver and dimmer from the damage caused by huge current.

4. A load fine to set the minimum brightness to prevent the flicker caused by the influence when it is starting.

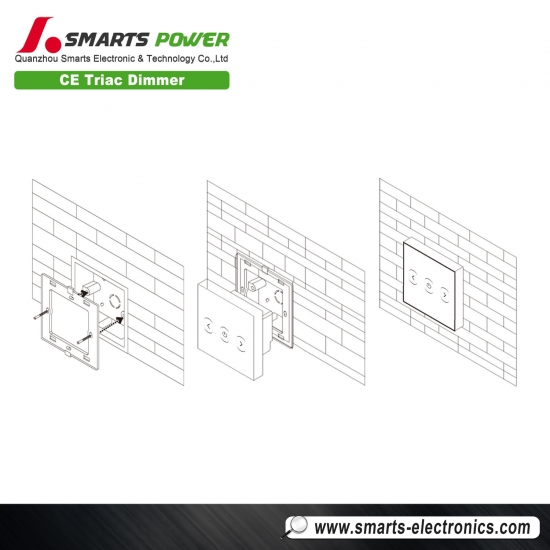

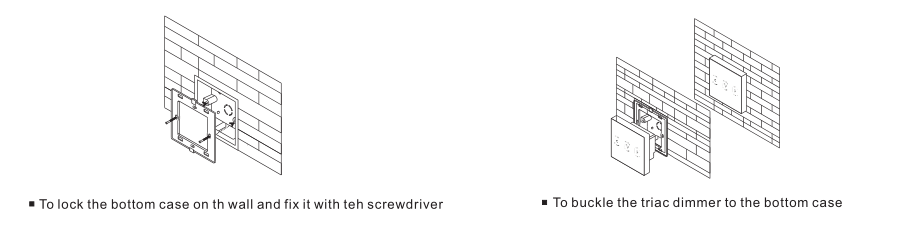

7. Instruction mannal for touch dimmer switch

Can you please confirm lead time?

Lead time for sample order takes about 7 working days. It takes about 12-15 working days for production order. It depends on the quantities.
