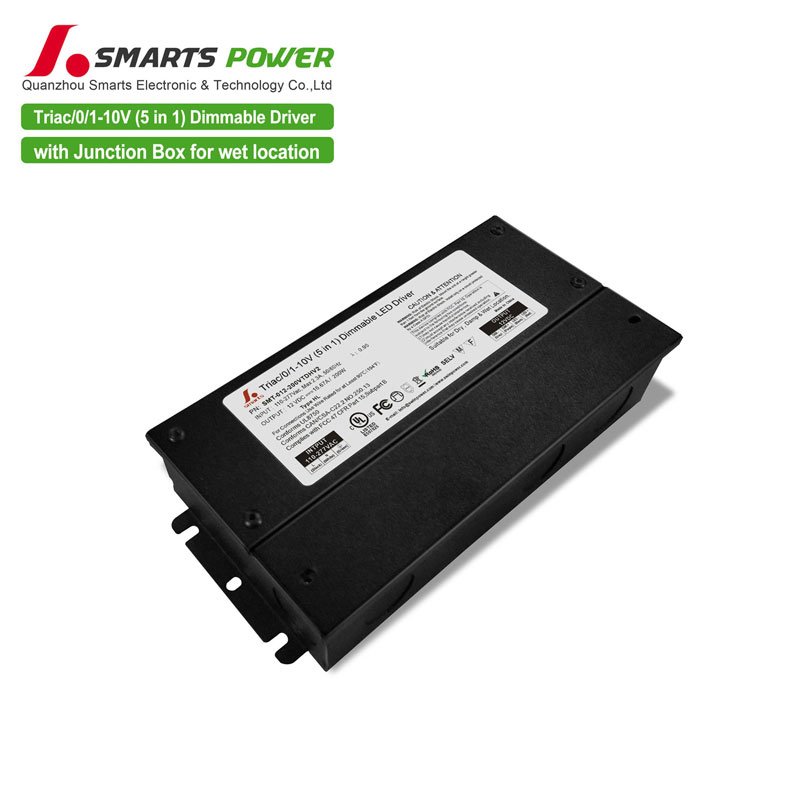

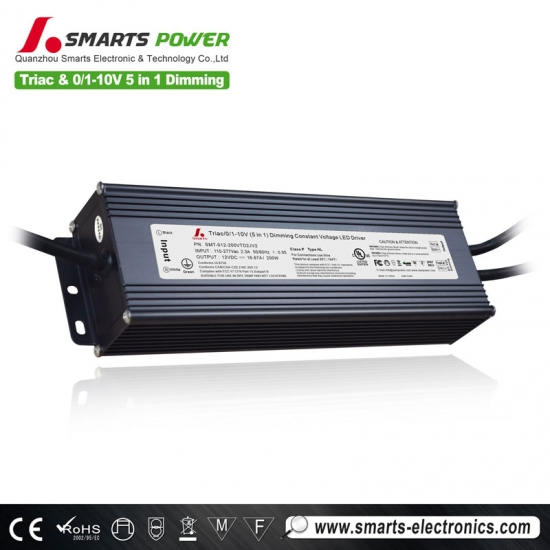

12v led strip light transformer waterproof led driver with built in junction box


12v led strip light transformer comes with 100-277V AC, 60Hz input, FCC compliant, UL listed junction box, Forward phase and reverse phase compatible, Dimmable with Lutron ELV dimmer

MSCELV-600M, PWM output with 0-100% load operation.


  Product parameters


model

SMT-012-200VTD2JV2

SMT-024-200VTD2JV2

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Rated current

16.66A

8.33A



Load Regulation

±2%

±1%



Rated power

200W

200W

Input

Voltage Range

100~277V AC



Frequency Range

4763HZ



THD(Typ.) @full load

<20%@120VAC &277VAC



Power Factor ( Typ.

[email protected]   0.9[email protected]277VAC

[email protected]   0.9[email protected]277VAC



Full Load Efficiency(Typ.)

84%@120VAC   87%@277VAC

85%@120VAC   88%@277VAC



AC CurrentTyp.

2.3A



Inrush Current Typ.

15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC



Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed.



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Over Loading

≤120% constant current limiting, auto-recovery

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750 , CAN/CSA-C22.2 No.250.13



Withstand voltage

I/P-O/P:1.88KVac



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Net Weight

1.5Kg



Size

256*78*47mm (L*W*H)



packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final

equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

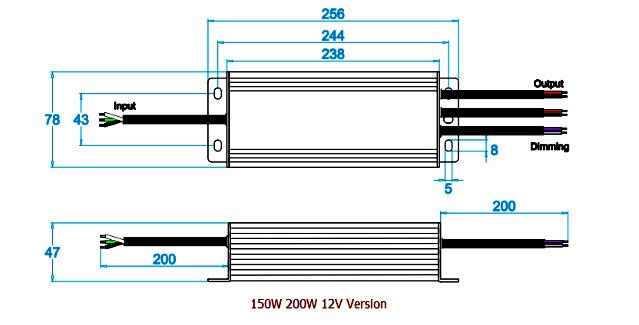

  Mechanical Specification


12v led strip light transformer

Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC

Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

noted that 12V 200W is with 2 group of  2*16AWG output wires to separate the output current.)

Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.


  Compatible Strip Lighting Type


Ottawa LED single color strip lights are easy to make graphics, text and other modeling, it has been widely used to decorate and illuminate construction objects with 12v led strip light transformer , Bridges, pathways, gardens, courtyards, floors, decor boards, furniture, buses, lakes, underwater, posters, posters, signs, etc.

12v led strip light transformer
