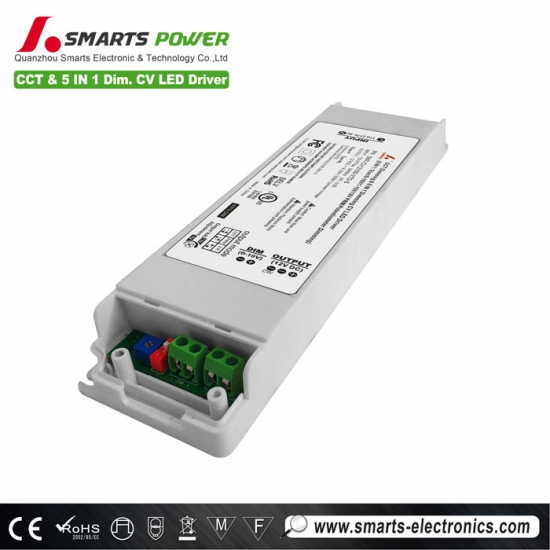

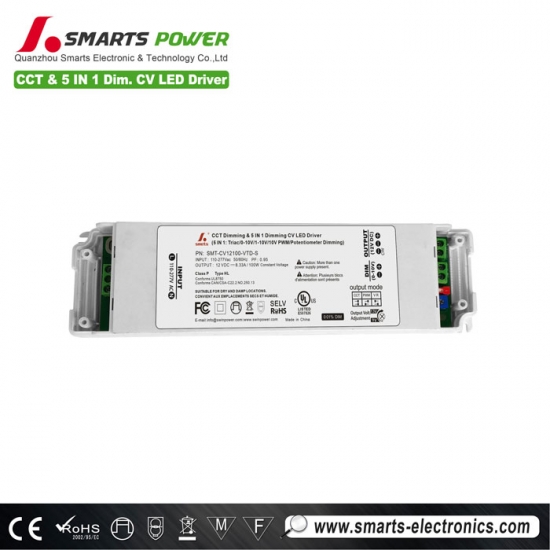

CCT 5 in 1 Dimming IP20 constant voltage 100W LED strip light driver 12Vdc-48Vdc


5 in 1  constant voltage LED driver 100WWork with Two Channel

CCT warm-dim LED strip/tape (3 wires) compatible with RGBCW

different LED fixture




  Specification


Model Number SMT-CV12100-VTD-S SMT-CV24100-VTD-S SMT-CV36100-VTD-S SMT-CV48100-VTD-S
OUTPUT
Rated Power     100W
Rated Voltage 12V 24V 36V 48V
Rated Current 8.33A 4.16A 2.77A 2.08A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98 @120VAC  0.9 [email protected]  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 83%@120VAC   84%@277VAC  84% @ 120VAC  85% @277VAC
AC Current(Typ.) 0.9A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load ≤120% Hiccup mode, recovers automatically after fault condition is removed.
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 212x56x24mm (L*W*H)    N.W:0.38kg
Packing 20pcs/CTN   G.W:8.2KG   SIZE: 270*220*140mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Feature


•Dim-all: Triac/0-10V/1-10V/10V PWM/Potentiometer

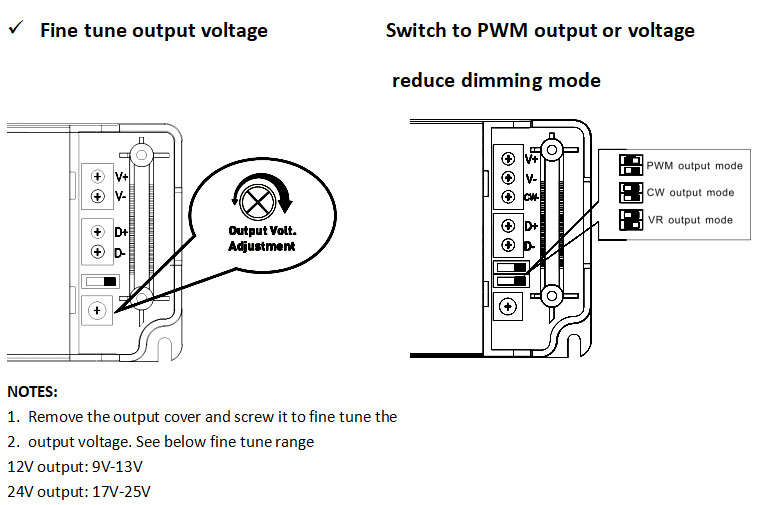

•Switch to PWM or Voltage Reduce output  ref. To Unique Selling Points
•Switch to dual color temperature LED strips
•Dimming effect:
Voltage Reduce mode: 100%-0.01% dim, stepless dimming, flicker-free
PWM dim mode: 100-0.1% dim, flicker-free
•Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
•UL cUL listed, Class 2, Class P, Type HL, FCC, NEMA 4X, CE, RoHs
•Wet, damp, and dry location,
•Title 24 JA8 compliant
•Universal input, 100-277Vac
•Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load
•Constant voltage type, fine tune of output voltage
•Super low loading request, works perfect at 10-100% load.
•Short-circuit, over-temperature, over-load protection.
•7 years warranty

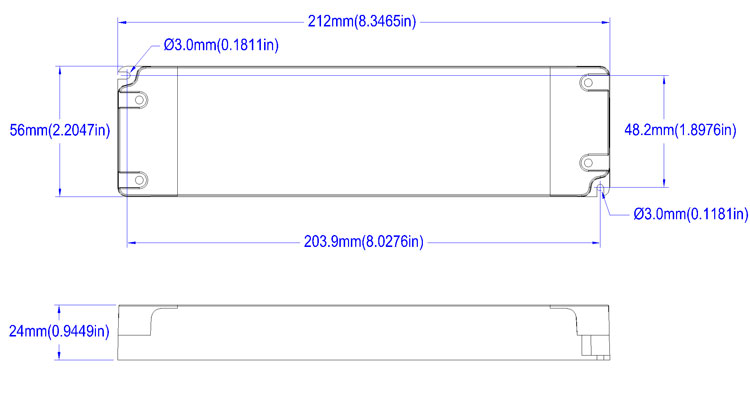

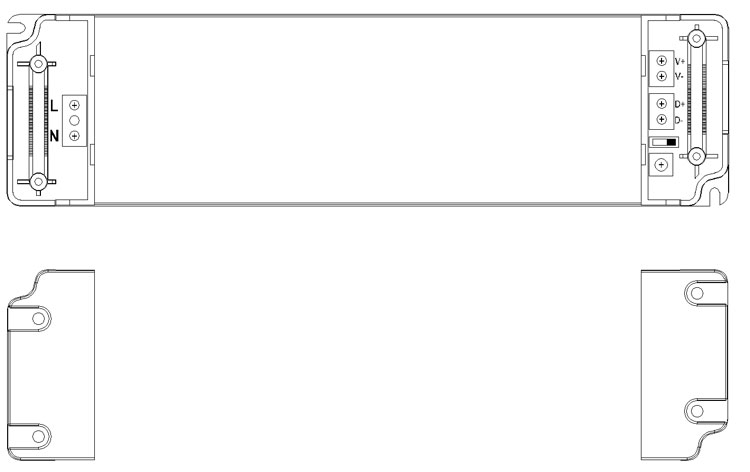

  Mechanical Diagram


Triac & 0-10V Dimmable LED driver 100W

Triac & 0-10V Dimmable LED driver 100W

  Series Information


Include 30-340W, single & multiple outputs



SMT-xxyyy-VTD-S   no Junction box



xx=12/24V/36V/48V

yyy=30/60/80/96/100/120/150/200/300W/340W




  Wiring Diagram

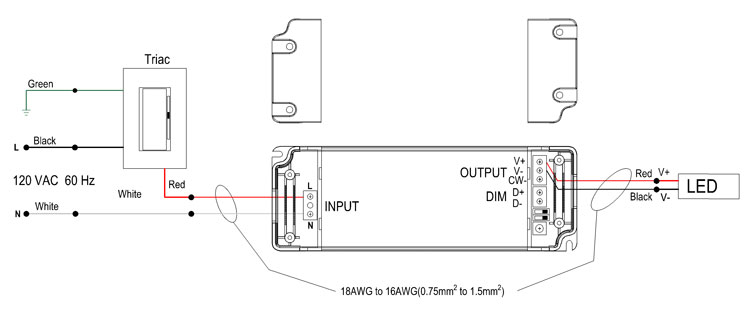

1) Triac dimming -Triac/MLV load type

Notice: Not request neutral wire of dimmer.

Triac & 0-10V Dimmable LED driver 100W


2) 0-10V dimming-only dimming

Notice: The dimmer cant cut off the power in this connecting way.

Triac & 0-10V Dimmable LED driver 100W


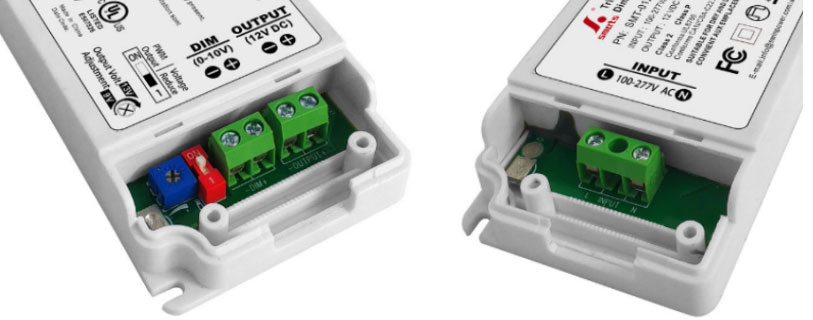

  product detail presentation


Triac & 0-10V Dimmable LED driver 100W




Triac & 0-10V Dimmable LED driver 100W


  Related Products

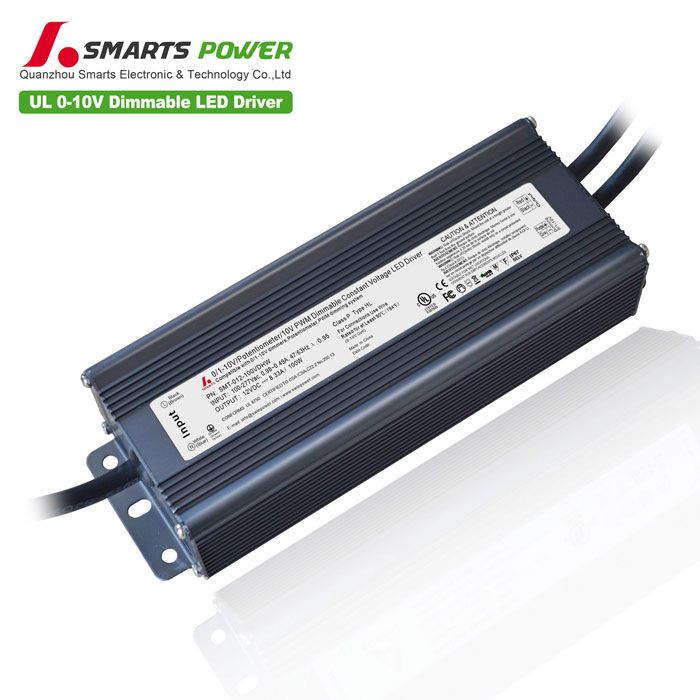

0-10V Dimmable LED driver 100WSMT-012-100VDHW is  0-10V dimmable waterproof led driver 100W, 0-10V/Potentiometer/10V PWM Dimming(3 in 1)
