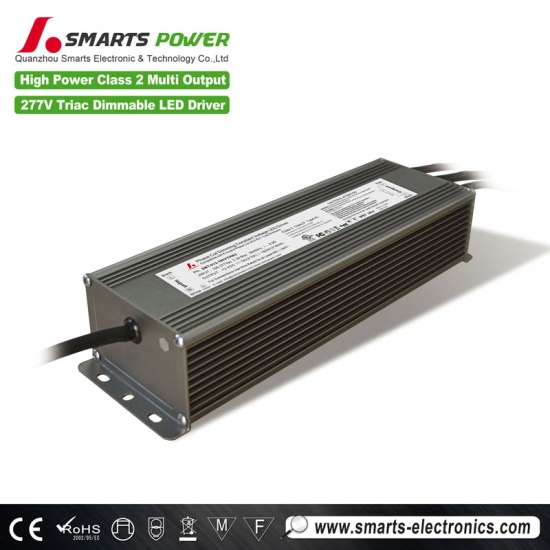

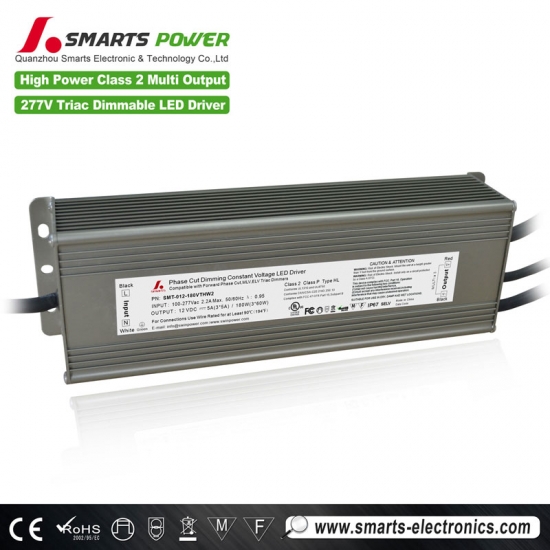

CE UL ROHS listed class 2 power supply 180w for christmas lights
The class 2 power supply for christmas lights are quite useful for Commercial, Educational Setting, Hallways & Stairways, Offices, Parking Garage Structures, Residential, Retail, Storage Facilities, Task & Workshop Lighting.
Specification
|
model |
SMT-012-180VTHW2 |
SMT-024-192VTHW2 |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
15.0A (3*5A) |
8.0A (2*4A) |
|
|
Rated power |
180W |
192W |
|
|
|
Voltage Tolerance |
±0.5V |
±0.5V |
|
|
Load Regulation |
±1%
|
±1%
|
|
|
Voltage Regulation |
±0.5% |
±0.5% |
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ.) @full load |
<20% |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency(Typ.) |
86%@120V 88%@277VAC 79% |
87%@120V 89%@277VAC
|
|
|
AC Current（Typ.） |
2.2A@100VAC |
2.3A@100VAC |
|
|
Inrush Current （Typ.） |
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC
|
||
|
Leakage current |
﹤0.50mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
||
|
Others |
Net Weight |
1.7Kg |
|
|
Size |
276*78*47mm (L*W*H) |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |

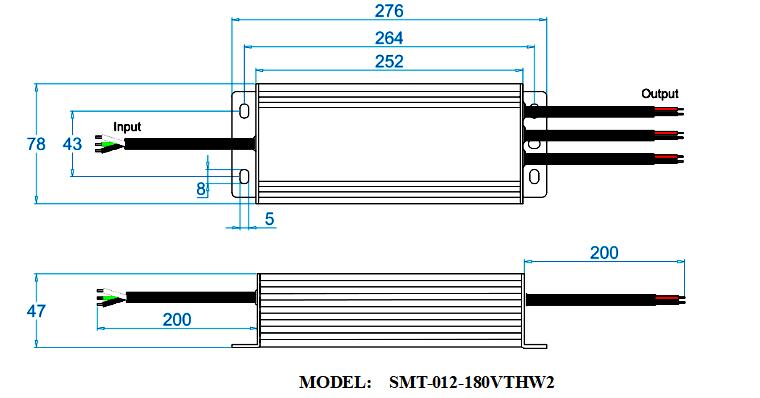

Mechanical Specification
1) Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
2) The Pulse-Width Modulation (PWM) of output voltage can be adjusted by the input terminal of the AC phase line(L) by connection a phase/triac dimmer.
3) Compatible with Forward phase, leading edge, Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
4) Please try to use the small power dimmers with power at least 1.5 times as the output power of the driver., which can be accessed to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.
Dimming operation
lInput wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
lOutput wire 14AWG Red to LED Positive side (+) , Black to LED Negative side (-).
Compatible with warehouse LED lights
When warehouse lights fail, so do critical operations in 24/7 facilities with led power supply class 2. This can mean a huge loss in time, productivity, and—of course—money. This is something your industrial client used to think about. You know, before you introduced them to us. Great move, by the way.
Related Products
|

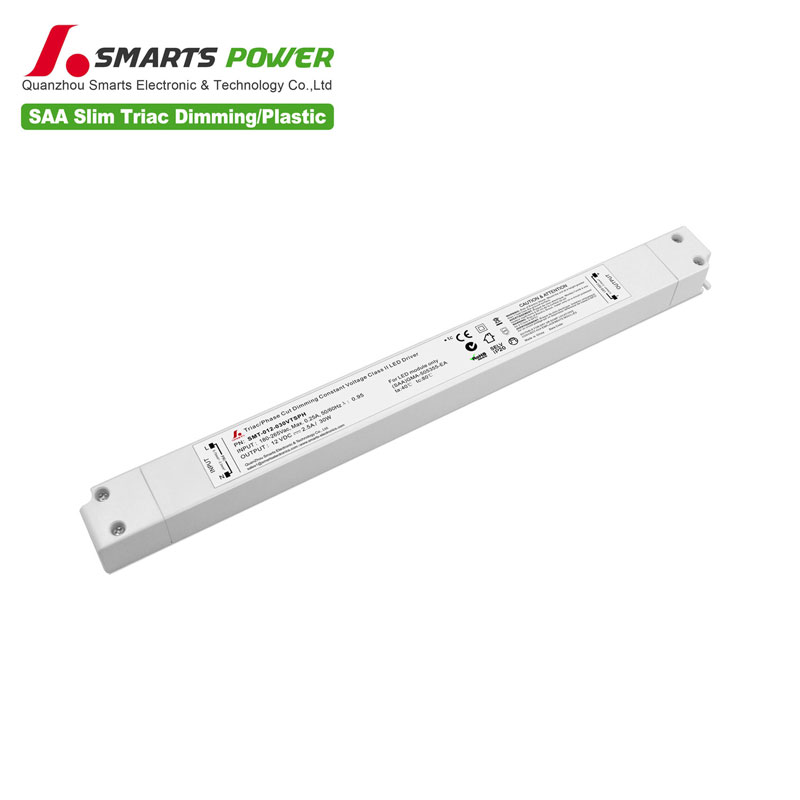

Mode：SMT-012-030VTSPH intput voltage：100~277V AC
Size : 260*30*18.5mm |
