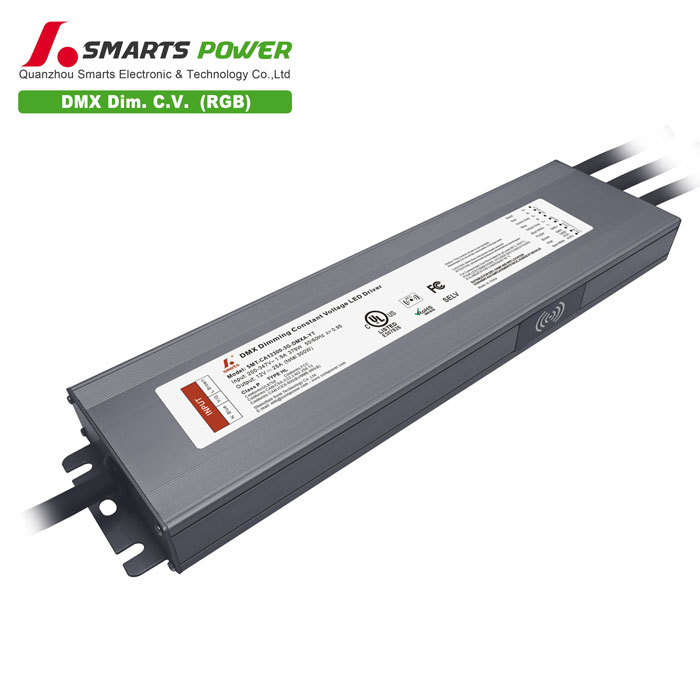

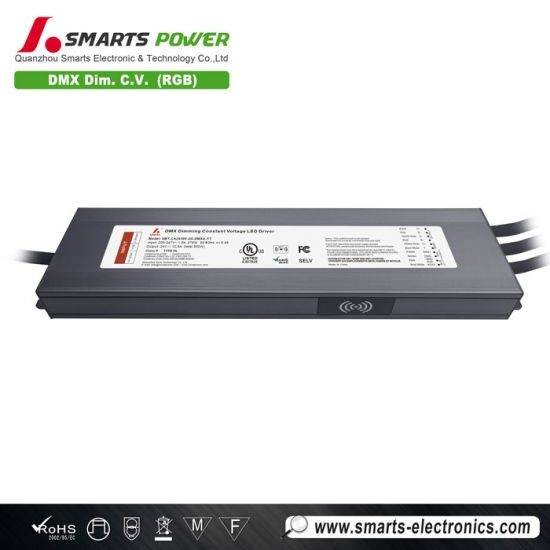

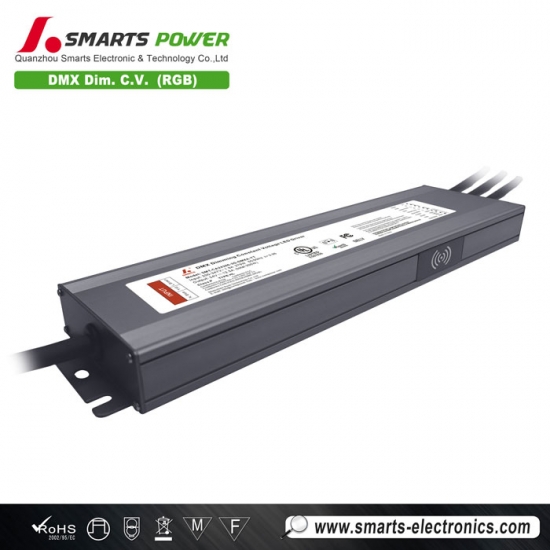

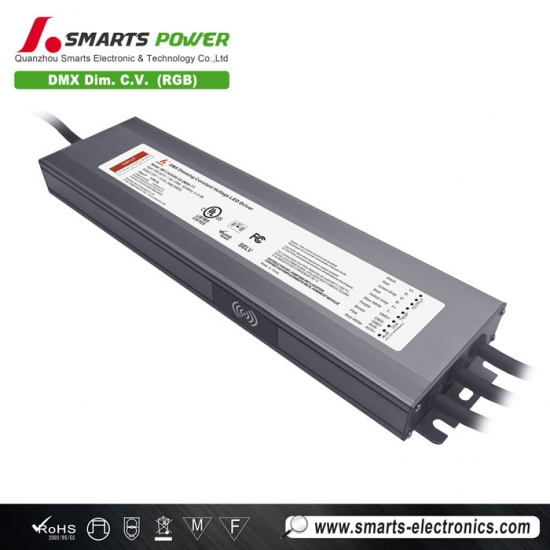

This 288W DMX-dimmable LED power supply features a 347VAC input voltage range and a 0.18%-100% ultra-deep dimming range. Multiple frequency options are available. Ideal for indoor and outdoor smart LED lighting projects in wet areas.
Specification
| Model | SMT-CA24288-3G-DMXA-Y | SMT-CA48288-3G-DMXA-Y | |
| Certificate | cUL / FCC / Class P /TYPE HL /Class2 | ||
| Output | DC Voltage | 24V | 48V |
| Fine-tune Voltage | 24-25.5V | 48-50V | |
| Rated current | 3*4A | 3*2A | |
| Rated power | 288W | ||
| Voltage Tolerance | ±2% | ±1% | |
| Voltage Regulation | <1% | <1% | |
| Load Regulation | ±2% | ±1% | |
| Overshoot | <3% | <11% | |
| RIPPLE & NOISE (max.) | 312mVp-p | 300mVp-p | |
| Input | Voltage Range | 200-347VAC | |
| Frequency Range | 47 - 63Hz | ||
| Standby power | ≤0.5W | ||
| Power Factor (Typ.) @ full load |
≥0.98@277VAC ≥0.96@347VAC |
≥0.98@277VAC ≥0.96@347VAC |
|
| Efficiency(Typ.) @ full load |
≥94.2%@277VAC ≥94.4%@347VAC |
≥93.9%@277VAC ≥94.0%@347VAC |
|
| THD(Typ. ) @ full load |
<5%@277VAC <7%@347VAC |
<5%@277VAC <7%@347VAC |
|
| AC Current (Max.) | 1.1A@277VAC 0.9A@347VAC | ||
| Inrush Current (Typ.) | 79A,332us@50%Ipeak 277VAC 99A,384us@50%Ipeak 347VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Load | ≥110% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||
| Safety & EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P: 3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| EMC Immunity(EMS) | FCC/ICES do not request this test (US) | ||
| EMC Emission(EMI) | FCC Part15 Subpart B;ANSI C63.4:2014 | ||
| Surge Immunity Test | AC Power Line:Differential Mode 4 kV, Common Mode 6 kV | ||
| Others | Net Weight | 1.35kg each | |
| Dimension | 302*78*25.1mm(L*W*H) | ||
| Packing | 350*300*215mm 20pcs/CTN | ||
| Notes | 1. Unless otherwise specified, all specifications are measured at 277V input, rated load, and 25℃ ambient temperature. | ||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 4KHZ. | |||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||

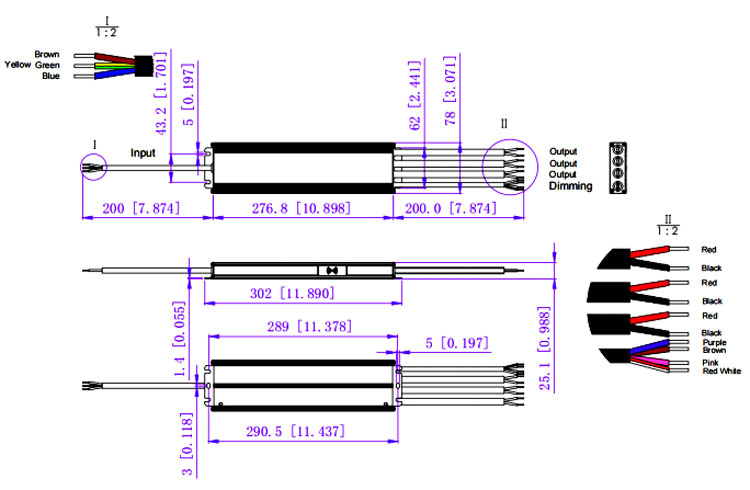

Mechanical Specification
MCB recommendation
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 4 |
| 13A | 5 | |
| 16A | 6 | |
| 20A | 8 | |
| 25A | 10 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 5 |
| 13A | 6 | |
| 16A | 8 | |
| 20A | 10 | |
| 25A | 12 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 6 |
| 13A | 8 | |
| 16A | 10 | |
| 20A | 12 | |
| 25A | 16 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| Global wire gauge | |
| DT300 | |
| Input wire(24V&48v) | Brown(L) Blue(N) Yellow&Green(G)(3*17AWG/3*1.04mm²) |
| Output wire(24V&48v) | Red(V+) Black(V-) (2*18AWG)*3 |
| Dimming wire | Purple(DMX+) Pink(GND/AUX 12V-) Brown(DMX-) Red White(AUX 12V+)(4*18AWG) |
Warm tips:
Please make sure you connect these correctly, otherwise your product will not function correctly and could be damaged.

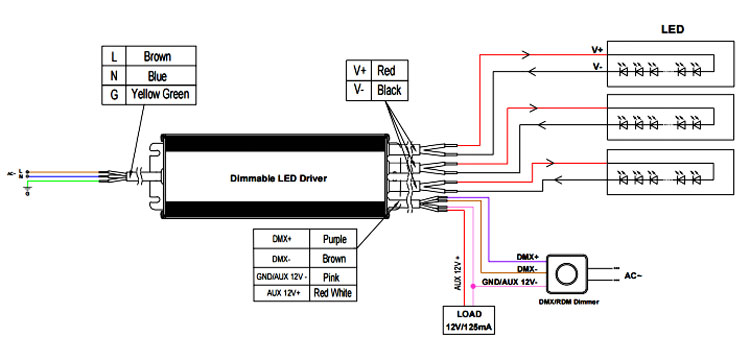

Dimming Operation
Note：
1. The model name SMT-CAxx288-DMXA means that there is no auxiliary power supply,so there is no corresponding wiring
2. The model name SMT-CAxx288-DMXA-Y means that there is an auxiliary power supply.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
| NFC voltage regulation level | ||||||||||
| level 1 | level 2 | level 3 | level 4 | level 5 | level 6 | level 7 | level 8 | level 9 | level 10 | |
| 12V | 12.0V | 12.2V | 12.3V | 12.5V | 12.6V | 12.8V | 13V | 13.1V | 13.3V | 13.5V |
| 24V | 24.0V | 24.2V | 24.4V | 24.7V | 24.9V | 25.1V | 25.3V | 25.6V | 25.8V | 26.0V |
| 48V | 48.0V | 48.2V | 48.4V | 48.7V | 48.9V | 49.1V | 49.3V | 49.6V | 49.8V | 50V |
