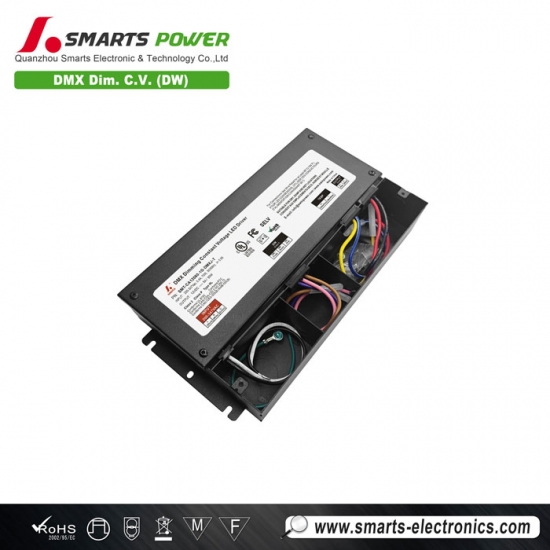

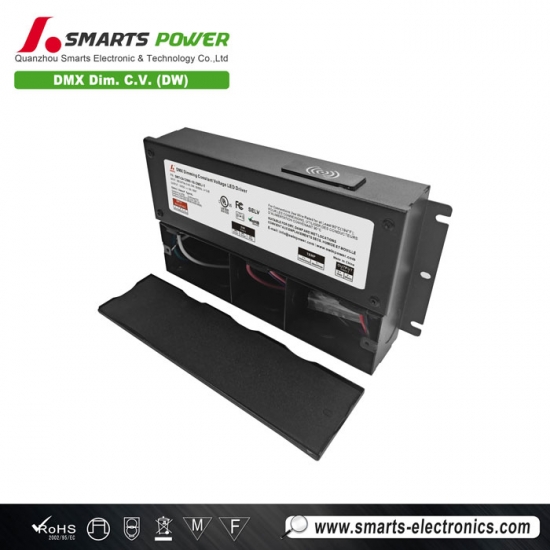

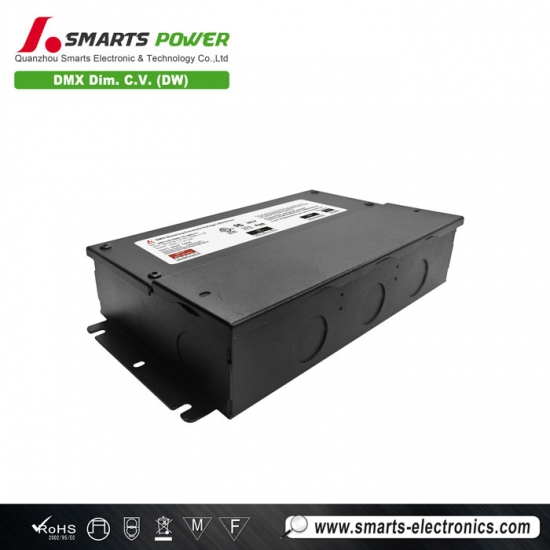

347vac waterproof DMX dimmable led power supply 12V/24V/48V 60w with junction box
347vac waterproof DMX dimmable led power supply 12V/24V/48V 60w with junction box
347vac waterproof DMX dimmable led power supply 12V/24V/48V 60w with junction box
This DMX intelligent dimmable 60W LED power supply features an integrated junction box and a fully iron housing. It offers multiple frequency options and an adjustable dimming curve. It also includes an auxiliary power supply. Driver parameters can be adjusted via the NFC app.
Specification
| Model | SMT-CA12060-1G-DMXJ-T | SMT-CA24060-1G-DMXJ-T | SMT-CA48060-1G-DMXJ-T | |
| Certificate | UL / FCC / Class P / Class 2 / TYPE HL | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Fine-tune Voltage | 12~13.5V | 24-26V | 48-50V | |
| Rated current | 5A | 2.5A | 1.25A | |
| Rated power | 60W | |||
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Voltage Regulation | ≤1% | ≤1% | ≤1% | |
| Load Regulation | ±1% | ±1% | ±1% | |
| Overshoot/Undershoot | <10% (full load) | |||
| RIPPLE & NOISE (max.) | 350mVp-p | 530mVp-p | 695mVp-p | |
| Input | Voltage Range | 200-347VAC | ||
| Frequency Range | 47 - 63Hz | |||
| Power Factor (Typ.) @ full load |
≥0.98@277VAC ≥0.95@347VAC |
≥0.98@277VAC ≥0.95@347VAC |
≥0.98@277VAC ≥0.95@347VAC |
|
| Efficiency(Typ.) @ full load |
≥87%@277VAC ≥87.5%@347VAC |
≥88%@277VAC ≥88%@347VAC |
≥88%@277VAC ≥88.5%@347VAC |
|
| THD(Typ. ) @ full load | ≤7%@277V ≤5%@347V | |||
| AC Current (Max.) | <0.27A@277VAC <0.22A@347VAC | |||
| Inrush Current (Typ.) | 21.6A,194us@50%Ipeak 277VAC 22.4A,276us@50%Ipeak 347VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Load | ≥110% Hiccup mode,recovers automatically after fault condition is removed | |||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. Ambient temperature over 75℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers. |
|||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13(US) | ||
| Withstand voltage | I/P-O/P:1.88KVAC(MAX 3.75KV) I/P-FG:1.88KVAC O/P-FG:0.5KVAC(US) | |||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |||
| EMC Immunity(EMS) | FCC/ICES do not request this test (US) | |||
| EMC Emission(EMI) | FCC Part15 Subpart B;ANSI C63.4a-2017,ICES-005 Issue 5(US) | |||
| Surge Immunity Test | AC Power Line:Differential Mode 4 kV, Common Mode 6 kV | |||
| Others | Net Weight | 1.2kg | ||
| Dimension | 202.5*125*42.7mm(L*W*H) | |||
| Packing | 293*260*265mm 10pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 277V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 4KHZ. The dimming curve is a logarithmic curve. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||

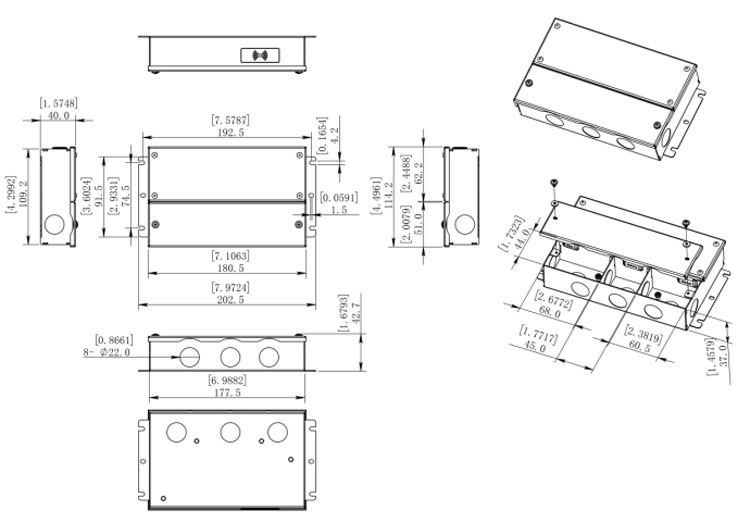

Mechanical Specification
MCB recommendation
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 22 |
| 13A | 29 | |
| 16A | 36 | |
| 20A | 45 | |
| 25A | 56 | |
| When the input voltage is 347Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 27 |
| 13A | 35 | |
| 16A | 44 | |
| 20A | 55 | |
| 25A | 69 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.

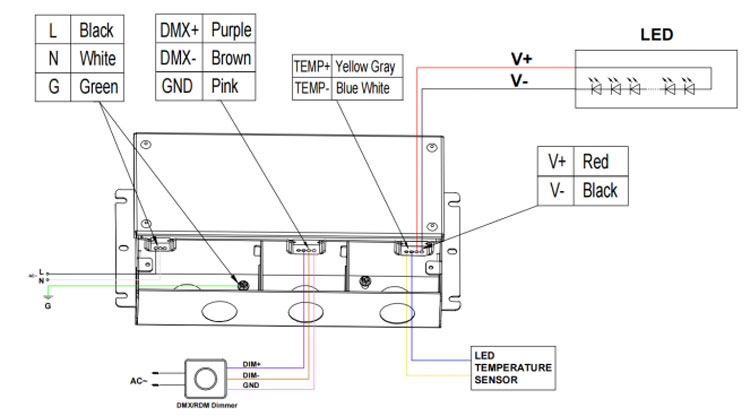

| JD61 | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire | Red(V+) Black(V-)(2*18AWG) |
| Dimming wire | Purple(DMX+) Brown(DMX-) Pink(GND)(3*18AWG) |
| External temperature wire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG) |
Warm tips:
Please make sure you connect these correctly, otherwise your product will not function correctly and could be damaged.
Dimming Operation
Note：
1. The model name SMT-CAxx060-DMXJ means that there is no lamp temperature detection,so the LED driver has no lamp temperature detection wiring.
2. The model name SMT-CAxx060-DMXJ-T means that there is lamp temperature detection.
NFC function：
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
Related Products
|

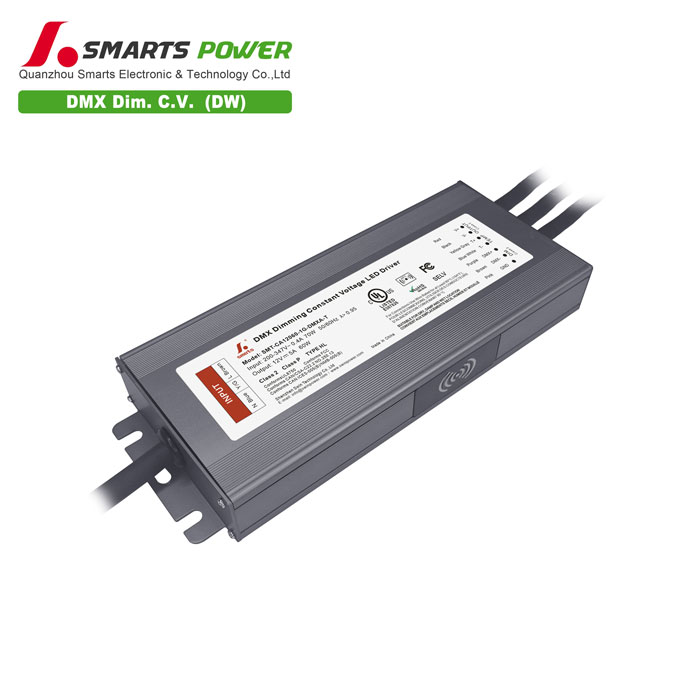

Mode：SMT-CA12060-1G-DMXA intput voltage：200-347vac
