Non-dimmable LED Driver

ETL listed 24v 96w 100w triac pwm dimmable led driver

24v 96w 100w triac dimmable led driver, class 2 led driver, PWM output dimmable led driver
  • item no.:

    SMT-024-096VT
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen
  • payment:

    T/T; Paypal; Western Union
  • Input Voltage:

    100-130vac/170-265vac
  • Output Voltage:

    96w
  • Output Current:

    4.0a
  • Working Mode:

    constant voltage
  • Certification:

    CE/ETL/ROHS
  • Warranty:

    5 Years
inquiry now
product details

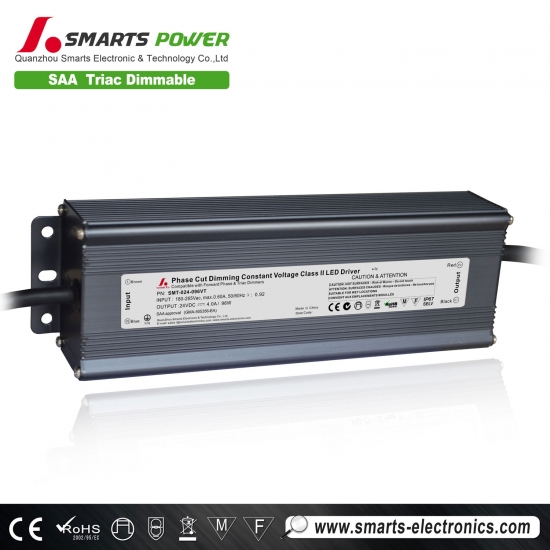

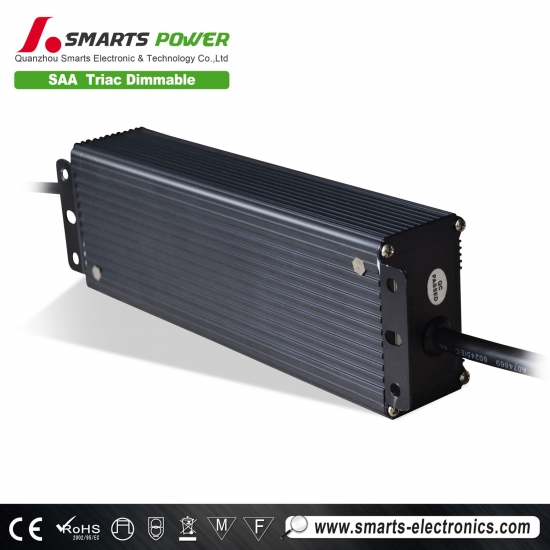

ETL listed 24v 96w 100w triac pwm dimmable led driver

Product Description

SMT-024-096VT is a constant voltage Class 2 LED driver which is paired with junction box with most LEDs and compatible Lutron dimmers. These drivers are IP67 rated for indoor or outdoor use on most residential, commercial or industrial applications.


Product parameters:

model

SMT-012-096VT

SMT-024-096VT

Output

DC Voltage

12V

24V


Voltage Accuracy

±0.5V

±0.5V


Rated current

8.33A

4.16A


Rated power

100W

Input

Voltage Range

90~135V AC/170~265V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.93/110V,PF>0.94/170V,PF>0.95/220V,PF>0.95/265V

Full Load Efficiency(Typ.)

>85%

>86%

>85%

>85%

AC Current(Typ.)

0.61A/110VAC  0.58A/170VAC  0.46A/220VAC  0.41A/265VAC

Leakage current

<0.25mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

<140VAC(90~135V) , <270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes







Safety&EMC

Safety standards

EN-60950-1, EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level (surge4KV)

Others

Weight

1.3Kg

Size

230*70*46mm(L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

    25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

    pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

Specifications:

·Built-in PFC function, PF> 0.70
·Efficiency > 84%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor or outdoor installations
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers available
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·5 years warranty



Features:

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting

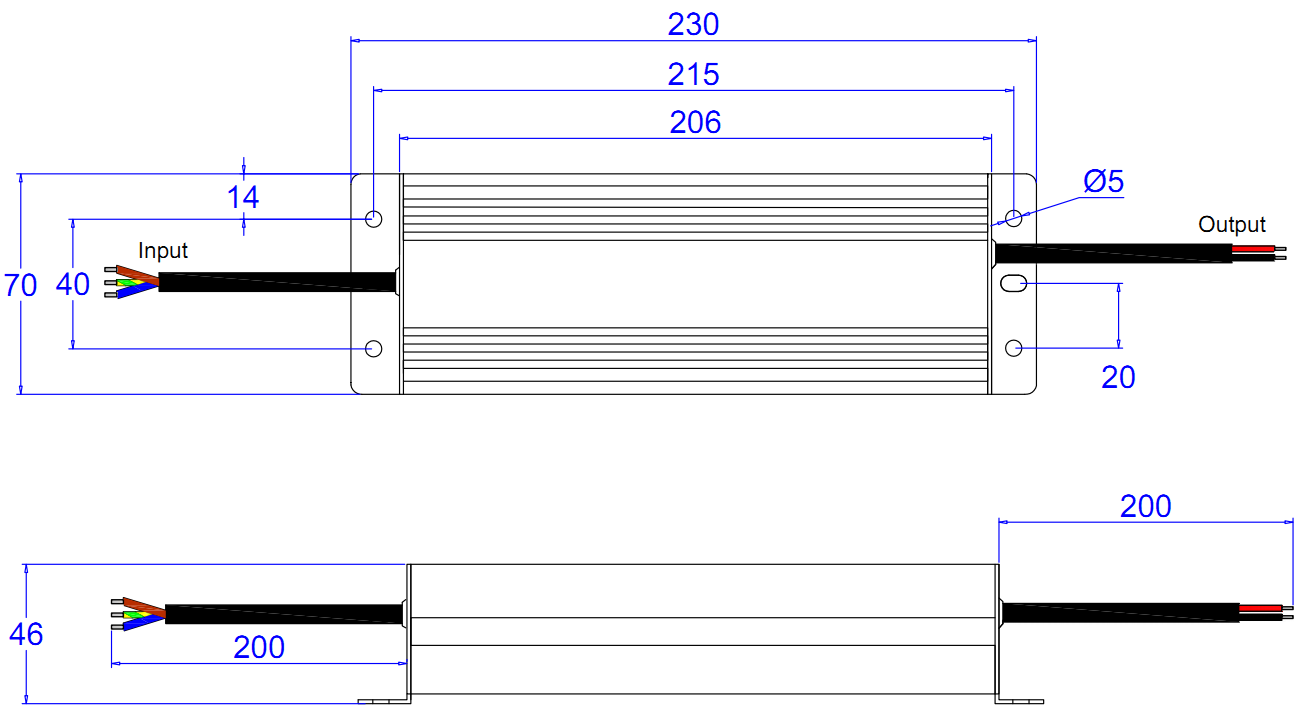

Mechanical Specification:

class 2 dimmable led driver
