Non-dimmable LED Driver

ETL listed intertek 48W 24VDC Class 2 LED Dimmable LED Strip Driver

Lightweight, compact size ETL Listed 24V 48W TRIAC Dimmable LED Driver. Outstanding LED dimming performance for architectural-quality brightness control, and wide range dimmer compatibility.
  • item no.:

    SMT-024-048VT
  • brand:

    SMARTS
  • Input Voltage:

    170-265V
  • Output Voltage:

    24VDC
  • Output Current:

    2A
  • Working Mode:

    Constant Voltage
  • Certification:

    CE ETL ROHS
  • Warranty:

    3 years
inquiry now
product details

ETL listed intertek 48W 24VDC Class 2 LED Dimmable LED Strip Driver



 Parameter of the 24v 48w ETL Listed Dimmable LED Driver


SMT-024-048VT

Output: 24Vdc @2.00Amp 48Watt)

Output Type: Single

Input Voltage: 90-135V/170-265V

Output Frequency: 47-63Hz

working mode: constant voltage type

dimming mode: triac dimmable

IP40 / plastic housing

PF: >0.95

Efficiency > 88%

size:178*61*24mm

CE ETL ROHS approval

3 years warranty



Model

SMT-012-048VT

SMT-024-048VT

Certificates

ETLCETLCEROHS

ETLCETLCEROHS

output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

4.00A 1.25A

2.00A

Rated power

48W

input

Voltage Range

100130VAC / 170~265VAC

Frequency Range

4763HZ

Power Factor Typ.

PF≥0.70

EfficiencyTyp.

>84%

>84%



AC CurrentTyp.

0.68A @120VAC 0.4A

0.37A@220VAC



Leakage current

0.70mA/110VAC , 0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Current

1.4*I output

Over Loading

≤120%

Over temperature

100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic

Environment

Working TEMP.

-40+60

Working Humidity

2090%RH, non-condensing

Storage TEMP. Humidity

-40+801095%RH

TEMP .coefficient

±0.03%/050

Vibration

10500Hz2G 10min./1 cycle,period for 60min. each along X,Y,Z axes



Safety& EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1500KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25/70%RH

EMC EMISSION

FCC Part 15 B

others

Net. Weight

0.45Kg

Size

178*61*24mmL*W*H

packing

350*195*180mm  30PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC / 220VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

3.Loading should be 5-100%.

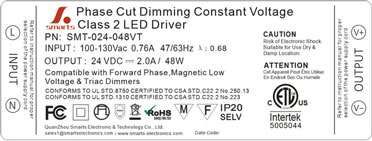

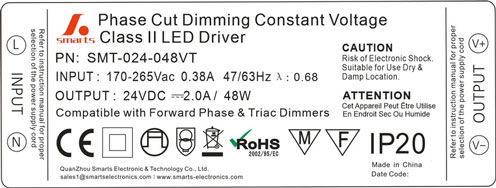

  Label   Class 2 LED Dimmable LED Strip Driver Class 2 LED Dimmable LED Strip Driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

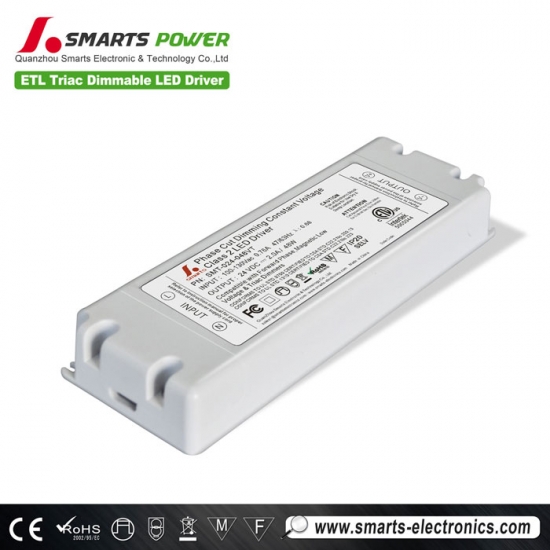

 Product Description of 48W 24VDC led dimmable driver


Lightweight, compact size power supply. Dimming LED drivers feature an integrated microprocessor that automatically senses and optimizes dimming performance based on the load and type of dimming technology being used. What is more, this 24v 48w dimmable led driver is no load limitation. That is to say, you can load is LED Driver in 1-48w..


 Features of 48W 24VDC triac dimmable led driver


  • Output constant voltage
  • Universal AC input: 100-130VAC/170-265VAC
  • Power Factor> 0.65
  • High efficiency> 84%
  • Protection:short circuit/over loading/over current/ Over temperature
  • Full protection plastic housing
  • Easy installation
  • Cooling by free air convection
  • Compatible with Forward phase,Magnetic low voltage,Triac Dimmers
  • Strong compatibility, flicker-free dimming, PWM output
  • Suitable for LED lighting and moving sign applications and others
  • Compliance to worldwide safety regulations for lighting

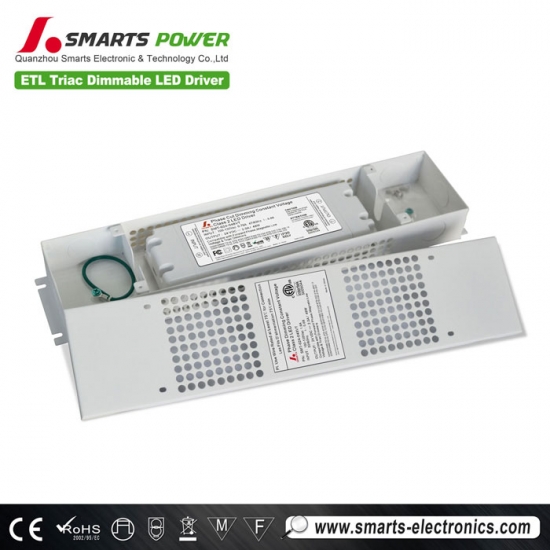

 Mechanical Specification of 48W 24vdc dimmable led strip driver


led dimmable driver



Input (L) and (N) with wires to be connected AC.

Output  LED SEC :(LED+) (LED-)


 Warning


  • Prevent to reverse polarity;
  • Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
  • Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
  • Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.

 Derating Curve


led dimmable driver

  • To extend their life, please refer to the Derating Curve and derate according to the temperature
