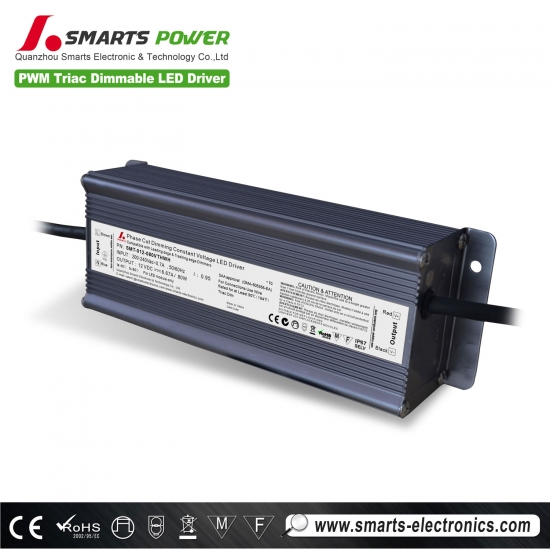

12vdc 80w outdoor lighting transformers triac dimmable led driver
As a led driver manufacturer in China, we are delicating in various of LED dimmable led driver. These low maintenance LED fixtures are 80% more efficient than incandescent recessed fixtures, designed to reduce lighting costs without compromising lighting levels with Lithonia Lighting brands.
Specification
model
SMT-012-080VTHW
SMT-024-080VTHW
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
6.66A
3.33A
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Rated power
80W
Input
Voltage Range
100~277VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
Full Load Efficiency(Typ.)
>82%
AC Current（Typ.）
1.33A/110VAC
Inrush Current （Typ.）
20A, 50%, 1.6ms
Leakage current
﹤0.5mA/110V
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Loading
≤120% constant current limiting, auto-recovery
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz,2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Net Weight
1.05Kg

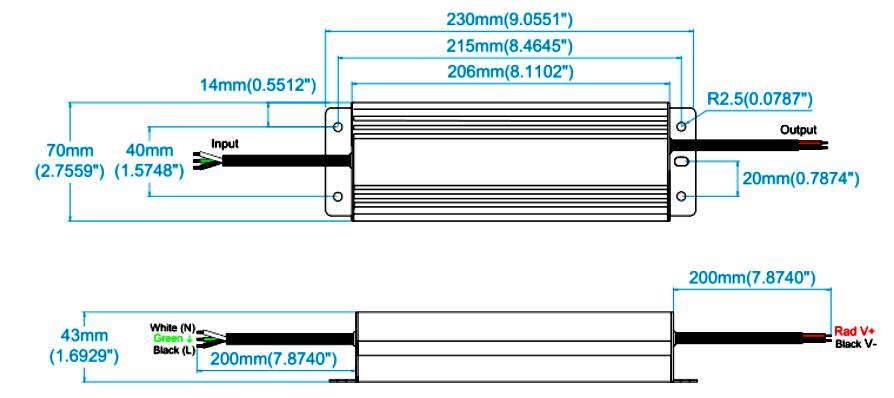

Size
230*70*43mm (L*W*H)
packing
329*279*176mm , 10PCS/ctn
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |
Mechanical Specification
Input Rubber wire 3*18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output Rubber wire, 2*16AWG Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming operation

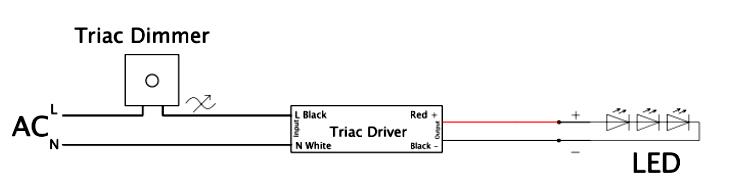

The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Compatible with High Bay Retrofit System
Integrating a Linmore HBR System involves replacing fluorescent lamps, reflectors, and ballasts with Linmore LED’s patented High Bay ParaBar’s™, class 2 dimmable power supplies, and Adapter Plate. When the objective is to go LED by leveraging an existing fluorescent high bay light fixture.
