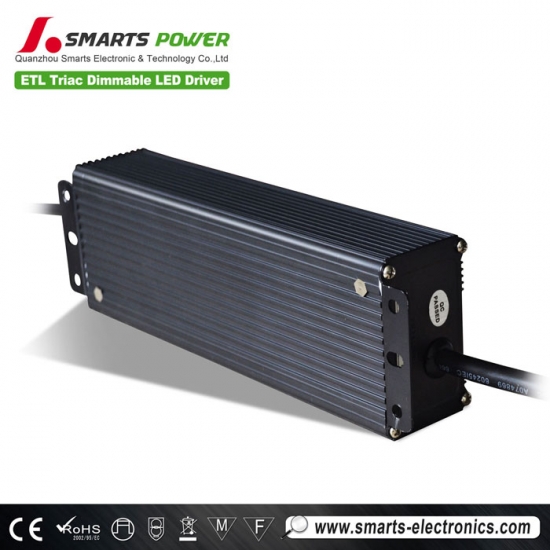

Product name: high power 24v 120w triac dimmable LED driver for outdoor lamp
AC-DC Triac Dimmable LED Driver
Input:90~135V/ 170~265V, 47~63Hz
Output:24v @5A 120w
packing: 10pcs/ctn
Specifications
model
SMT-012-120VT
SMT-024-120VT
SMT-036-120VT
SMT-048-120VT
Output
DC Voltage
12V
24V
36V
48V
Voltage Accuracy
±0.5V
±0.5V
±0.5V
±0.5V
Rated current
10.00A
5.00A
3.33A
2.50A
Rated power
120W
Input
Voltage Range
100~130V AC/170～265V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.70/110V,PF≧0.70/170V,PF≧0.70/220V,PF≧0.70/265V
Full Load Efficiency（Typ.）
>84%
>84%
>84%
>84%
AC Current（Typ.）
1.86A/110VAC 1.20A/170VAC 0.93A/220VAC 0.77A/265VAC
Leakage current
﹤0.27mA/110V/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over voltage
≦140VAC(100~130V) , ≦270VAC(170~265V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN-60950-1, EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV）
Others
Weight
1.3Kg
Size
230*70*46mm（L*W*H）
packing
329*279*176mm , 10PCS/ctn
Notes
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Label
Environment parameter
Case: Aluminum case
Product Features
Safety
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
