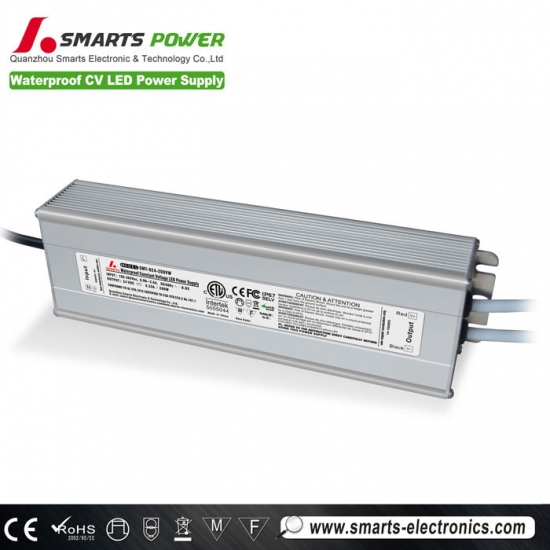

High PF universal input 100-265vac 24v 200w led tape light power supply
High PF universal input 100-265vac 24v 200w led power supply is an IP67 unit which is suitable for outdoor use or use in wet or damp areas. Supplied with a generous 1m mains input cable and two output cable to devide power into two equal .
SPECIFICAION
MODEL
SMT-012-200VW
SMT-024-200VW
SMT-036-200VW
OUTPUT
DC VOLTAGE
12V
24V
36V
RATED CURRENT
16.67A
8.33A
5.55A
CURRENT RANGE
0~16.67A
0~8.33A
0~5.55A
RATED POWER
200W
200W
150W
RIPPLE&NOISE(max)
150mV
150mV
150mV
VOLTAGE TOLERANCE
±0.5V
±0.5V
±0.5V
SETUP RISE TIME
80ms/110VAC, 220VAC
HOLD UP TIME(Typ.)
60ms/110VAC, 220VAC
INPUT
VOLTAGE RANGE
90~265VAC
FREQUENCY RANGE
50~60Hz
POWER FACTOR(Typ.)
>0.95@110VAC ; >0.98@220VAC
EFFICIENCY(Typ.)
﹥91%
AC CURRENT(Typ.)
2.10A@110VAC; 1.01A@220VAC
INRUSH CURRENT (Typ.)
COLD START 50A/110VAC, 220VAC
PROTECTION
Short circuit
Protection type:recovers automatically after condition is removed
Overload
overload protected@145-160% above peak rating
Over temperature
Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT
WORKING TEMP.
-30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY
20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY
-40~+80℃,10~99%RH
SAFETY&EMC
SAFETY STANDARDS
CE ETL Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE
I/P-O/P:3.0KVAC IP-GND:3.0KVAC
EMC Test Standards
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

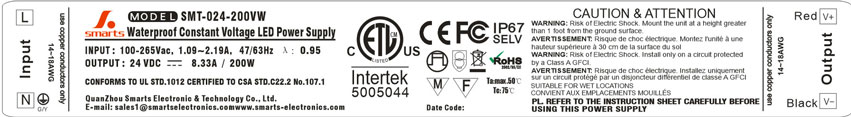

Label
Features
2.With the functions of over voltage protection, short circuit protection and over load protection
3.Constant voltage output, to ensure the stability of the power supply
4.With the anti-interference function, to ensure the long-life LED lamps
5.With waterproof function
6.High PF>0.95, High Efficiency>0.91
7. led tape 200w power supply
Specifications
2.Output voltage: DC 24V
3.Electric current: 8.33A
5.Power: 200W
6.Material: aluminum
7.Color: silver
8.Size: 245(L) x 70(W) x 48(H)mm
9.Weight: 1300g/pcs
Notes
1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
Applications
Widely used in Landscape lighting, advertising lighting, Indoor Lighting, Special lighting.
Landscape scene / spot lighting,Architectural lighting,Display scene,Artwork lighting,general lighting.
Amusement park scene,Aquarium lighting and so on.
Why choose us
1. We guaranteed for 2 years warranty for 200w led light power supply, any quality problem happened in this period of time for our reason, we will send the replacement parts to you.
2. we accept OEM , MOQ for OEM is 500pcs , Our Month Supply Ability is 50000PCS. the more qty of your order has , you will get more discounts. If you have a regular monthly order volume, we also would like to give you the appropriate discount.
3. We have professional R & D staff and a complete set of product testing process. In addition, our switching power adapter passed safety approvals, such as CETL, ETL CE ROHS. All the producing procedures are operated under strict ISO quality management system. our factory staffs are experienced and responsible on work. So we have the ability to ensure the quality of your products. You can visit our company’s website ( www.smarts-electronics.com) , and you are always welcome to visit our factory. We are waiting for you!
