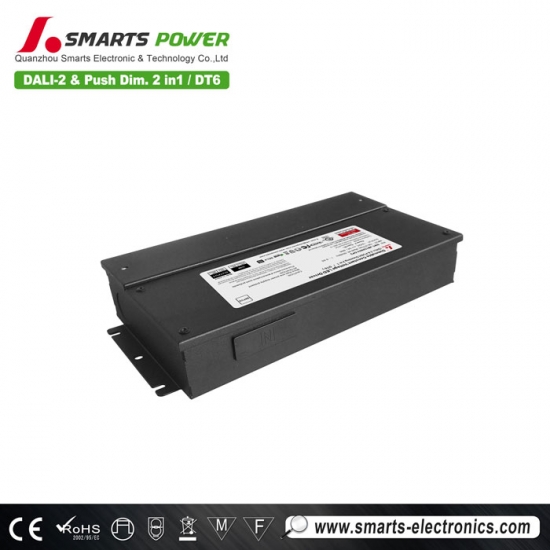

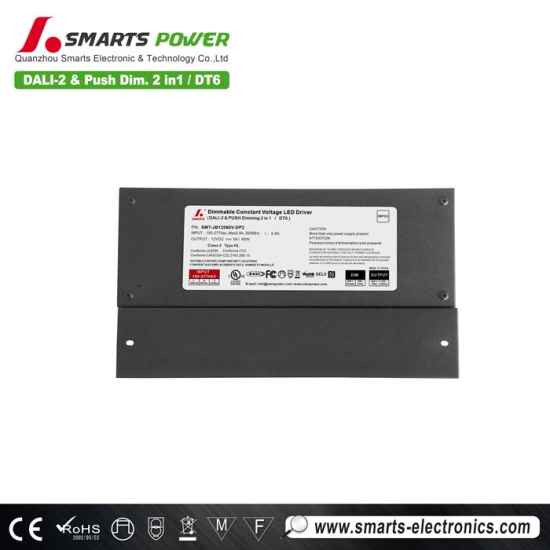

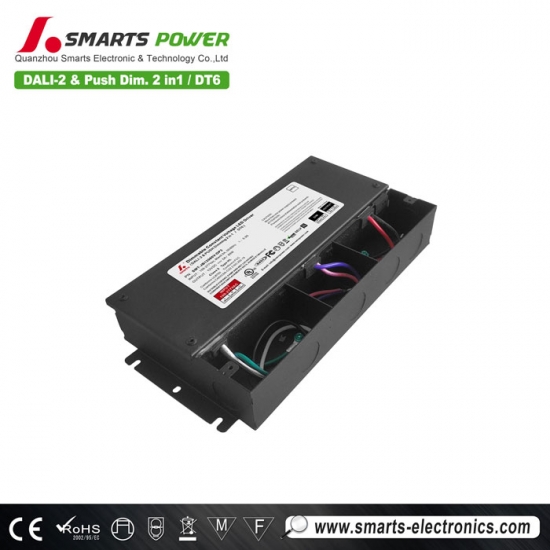

UL 277VAC constant voltage 12v 60W dali 2 & push dimmable led driver DT6
The SMT-JB12060V-DP2 is a dali-2 & push 60W dimmable led power supply with built-in NFC capability to set the ID code and fine-tune the output voltage through the NFC application. Dimming range is 0-100%, suitable for installation and use of intelligent lighting projects
Specification
| Model | SMT-JB12060V-DP2 | SMT-JB24060V-DP2 | SMT-JB36060V-DP2 | SMT-JB48060-DP2 | |
| Certificate | UL/cUL/ FCC/ SELV / CE | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Voltage range(adjust by NFC) | 12-13.5V | 24-26V | 36-38V | 48-50V | |
| Voltage Tolerance | ±0.5V | ||||
| Voltage Regulation | ±0.5% | ||||
| Rated current | 5A | 2.5A | 1.67A | 1.25A | |
| Rated power | 60W | ||||
| Load Regulation | ±2% | ±1% | ±1% | ±1% | |
| Input | Voltage Range | 100-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor (Typ.) @ full load | PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.92@277VAC | ||||
| Efficiency(Typ.) @ full load | 86%@120VAC 88%@230V/277VAC |
86%@120VAC 88%@230V/277VAC |
86%@120VAC 88%@230V/277VAC |
86%@120VAC 88%@230V/277VAC |
|
| AC Current (Max.) | 0.8A | ||||
| Total harmonic value | ≤15% | ||||
| Surge current | 20A, 50%, 220us @120VAC; 45A, 50% , 175us @230VAC 37A, 50% ,302us @277VAC | ||||
| Leagkage current | <0.5mA | ||||
| Protection | Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | |||
| Over temperature | Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops. | ||||
| Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||||
| Environment | Working TEMP. | -40 ~ +70℃ (see below derating curve) | |||
| Working Humidity | 20 ~ 95%RH,non-condensing | ||||
| Storage TEM.,Humidity | -40 ~ +80℃,10 ~ 95%RH | ||||
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | ||||
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750(US) & UL1310 | |||
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US) |
||||
| Isolation resistance | I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH | ||||
| EMC Emission | EN55015 EN61000-3-2-3(EU)≥50% Load & FCC Part 15 B (US) | ||||
| Others | Net Weight | 0.375Kg | |||
| Dimension | 202.5*114.2*40mm (L*W*H) | ||||
| Packing | 280*210*160mm 20pcs /CTN | ||||
| Notes |
1.All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. 2.Under low input voltage, reduced output is required to ensure a long life. |
||||
 |
 |
 |
 |

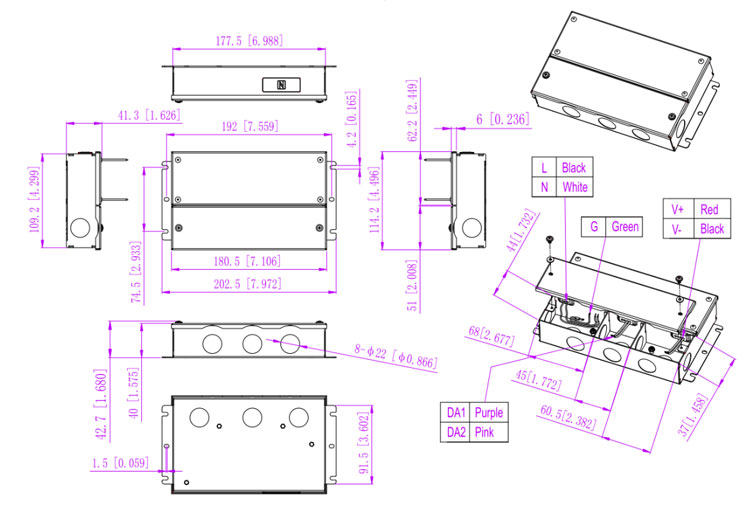

Mechanical Specification

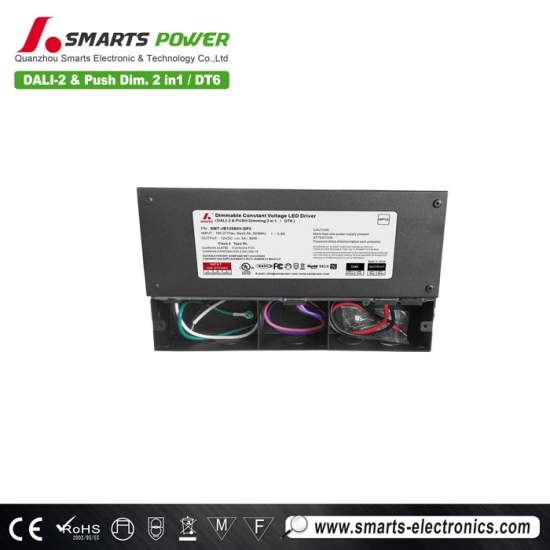

1. Input 3*18AWG,Black cable (L), White cable (N) and Green cable (G).
2. Output 2*16AWG (12V) 2*18AWG (24V, 36V,48V) Black cable (V+) connect to positive(+), Red cable(V-) connect to negative(-).
3. Dimming wire 2*18AWG Purple cable(L), Pink cable (N).
Warm tips: Any other requests for cable, we can customized.
※Dimming cable
※Dimming electronic cable 3*18AWG, Brown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.
Brown (N) is connected to AC (N) while Purple (L) and pink connected to Push dim switch dimmer( L) when use Push function.
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!
Dimming operation
※Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
DALI-2 address setting Operation
※The default address for the DALI-2 LED driver is 001.
※Address settings device:
※Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
■ Adjust output voltage Operation
※Adjust output voltage slightly for DALI-2 LED drivers
1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers.
2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1.
|
Rated Vol. |
Level 1 |
Level 2 |
Level 3 |
Level 4 |
Level 5 |
Level 6 |
Level 7 |
Level 8 |
Level 9 |
Level 10 |
|
12V |
12.00V |
12.16V |
12.32V |
12.48V |
12.64V |
12.80V |
12.96V |
13.12V |
13.28V |
13.50V |
|
24V |
24.00V |
24.22V |
24.44V |
24.66V |
24.88V |
25.1V |
25.32V |
25.54V |
25.66V |
26.00V |
|
36V |
36.00V |
36.22V |
36.44V |
36.66V |
36.88V |
37.10V |
37.32V |
37.54V |
37.66V |
38.00V |
|
48V |
48.00V |
48.44V |
48.44V |
48.66V |
48.88V |
49.10V |
49.32V |
49.54V |
49.66V |
50.0V |
■ How to set the DALI-2 CV LED driver address by the NFC app or NFC device ?
Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)
Related Products
|

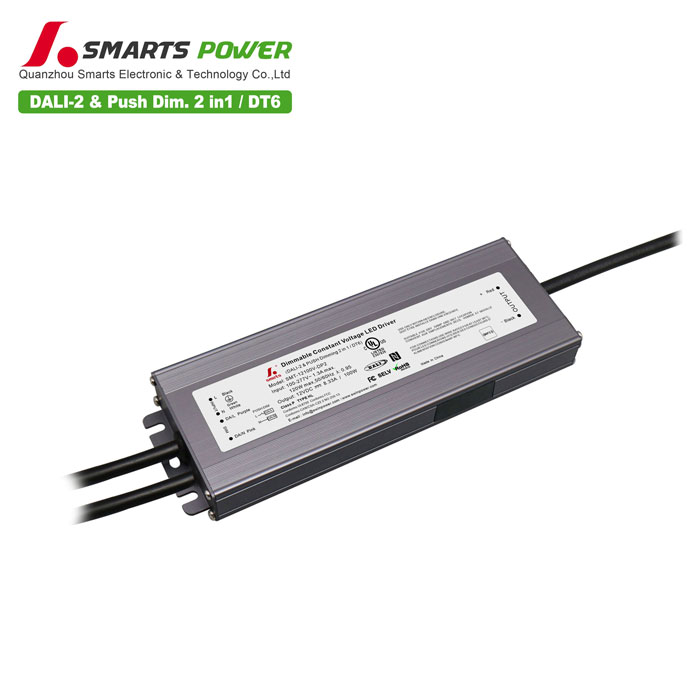

Mode：SMT-12100V-DP2 intput voltage：100-277VAC
