Non-dimmable LED Driver

277vac waterproof ip67 150w 12v/24v dali 2 & push dimmable led driver power supply

dali 2 &push dimming 150W waterproof ip67 constant voltage led driver, the input voltage is 100-277vac, has passed the UL certification, conforms to the dali protocol IEC62386, and can be compatible with the market dali dimmers, smooth and flicker-free dimming
  • item no.:

    SMT-12150V-DP2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC/24VDC/36VDC/48VDC
  • Working Mode:

    constant voltage
  • Certification:

    UL ROHS
  • Warranty:

    7 years
inquiry now
product details

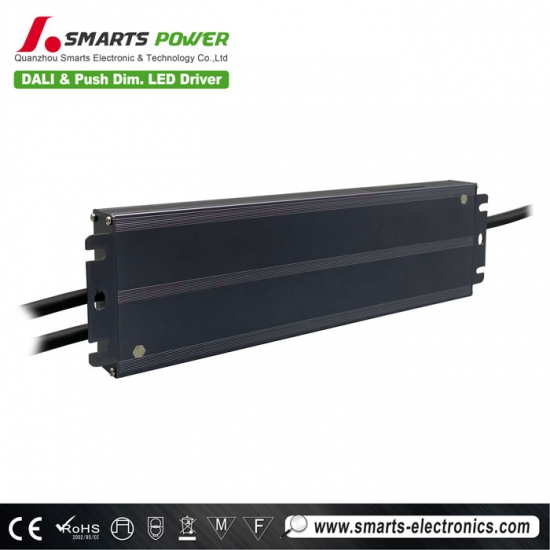

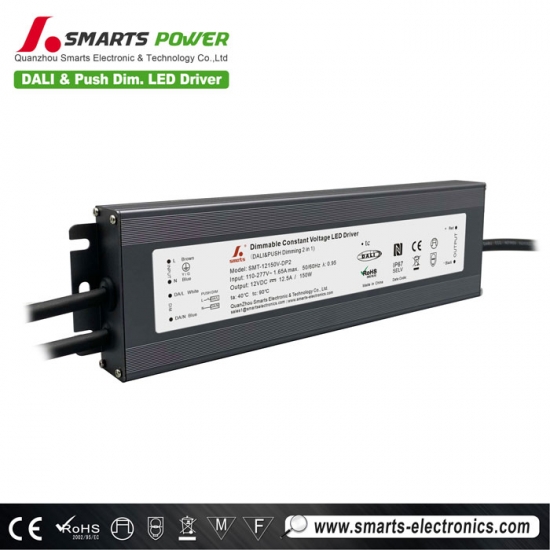

277vac waterproof ip67  150w 12v/24v dali 2 & push dimmable led driver power supply

This 150W led driver with NFC adjustment of output voltage function works in constant voltage mode, dali & push dimming, in accordance with dali protocol IEC62386, has active PFC function, work efficiency up to 91%, also comes with a 7-year warranty


  Specification

Model SMT-12150V-DP2 SMT-24150V-DP2 SMT-36150V-DP2 SMT-48150V-DP2
Output DC Voltage 12V (12-13.5Vadjust by NFC) 24V (24-26V adjust by NFC) 36V (36-38V adjust by NFC) 48V (48-50V adjust by NFC)
Voltage Tolerance ±0.2V
Rated current 12.5A  6.25A 4.17A  3.12A
Rated power 150W
Load Regulation ±2%
Input Standby power consumption  ≤0.5W ≤0.5W ≤0.6W ≤0.6W
Voltage Range 110-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.98@120VAC  PF≥0.96@230VAC  PF≥0.95@277VAC (Full loading)
THD(Typ.)@ full load ≤10%@120VAC ;  ≤10%@230VAC;  ≤15%@277VAC
Efficiency(Typ.)@ full load 89%@120VAC;   91%@230VAC;   91%@277VAC;
AC Current(Max.) 1.65A
Inrush Current (Typ.) 38.4A,510us@50%Ipeak(120VAC);88A,120us@50%Ipeak(230VAC)    48A,560us@50%Ipeak (277VAC)
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
Environment Working TEMP. -40~+70℃ (see below derating curve)
Working Humidity 20 - 95%RH,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1   EN61347-2-13 (EU)   &  UL8750  (US)
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (EU);   I/P-O/P:1.88KVAC (US)
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2  EN61000-3-3 (EU)≥50% Load  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6 ,11,  EN61547
Others Weight 1.05KG
Dimension 278*78*25.1mm (L*W*H)
packing 390*325*185mm/20PCS/CTN    G.W.:22KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


Input & Output wiring

※Input Rubber cable 3*1.0mm² , the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)

※Output rubber cable 2*1.0mm², Red is output ( V+) Positive, Black is output (V-) negative. Connected to LED Lamps

Dimming wiring

Dimming Rubber cable 2*1.0mm², Blue DA/N and White DA/L (No polar) connected to the DALI BUS when use DALI function .

Blue (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) when use Push function..

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.



Note:  there is external antenna at output side.  Don't disassemble!


  Dimming operation


Note: For DALI Dimming Wiring Diagram 3, please noted that

   only one DALI power is need in the DALI bus, so no extra DALI

   power is needed if the Master or Dimmer already includes the DALI

   Power.




  Related Products

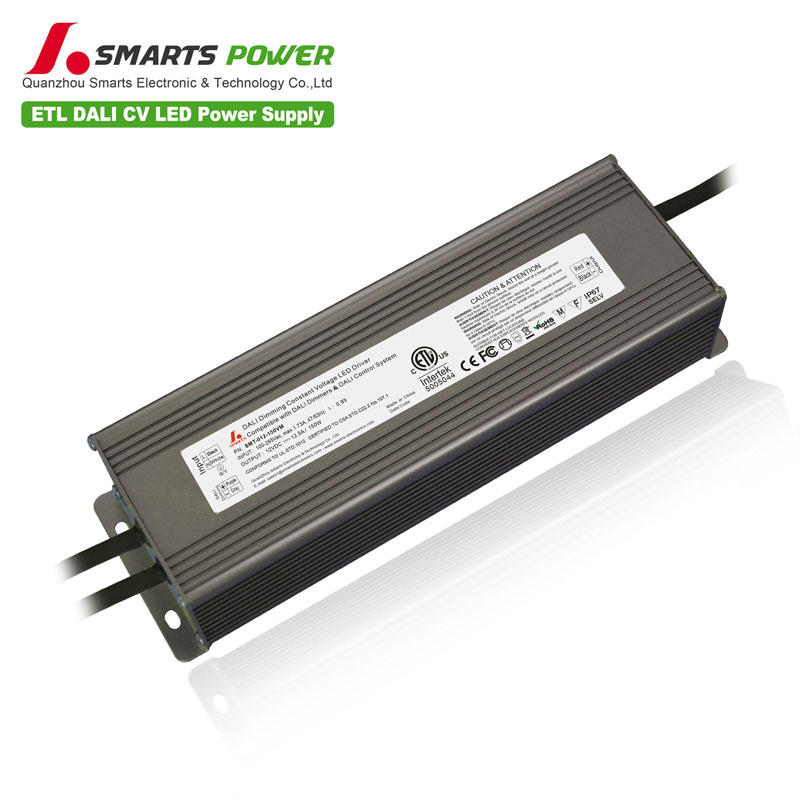

dali dimming led driver 150W waterproof constant voltage mode, input voltage 100-265VAC, CE and ETL certified, with a five-year warranty
