Non-dimmable LED Driver

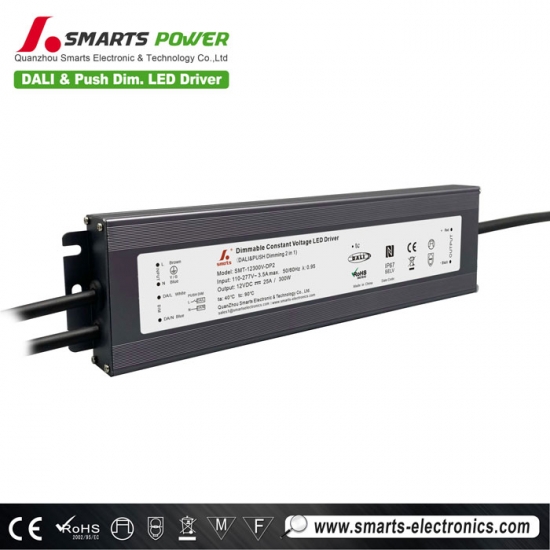

Waterproof ip67 300w DALI 2& PUSH dimmable 12/24 volt constant voltage led driver strip light replacement transformer

Intelligent led driver 300W dimming mode dali2&push dimmable, with NFC function, through the mobile phone software to adjust the output voltage and set the address, users more convenient to use, this product through the DALI protocol IEC62386, It is compatible with dali dimmer on the market to achieve smooth dimming
  • item no.:

    SMT-12300V-DP2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC/24VDC/36VDC/48VDC
  • Working Mode:

    constant voltage
  • Certification:

    UL ROHS
  • Warranty:

    7 years
inquiry now
product details

Waterproof ip67 300w DALI 2& PUSH dimmable 12/24 volt constant voltage led driver  strip light replacement transformer

300w high power constant voltage led driver dimming mode is dali2&push, size is 301*78*25.1mm, compared with normal led driver height is much lower, aluminum shell waterproof performance is good, built-in PFC function, power factor up to 0.98, smarts comes with a seven-year warranty


  Specification

Model SMT-12300V-DP2 SMT-24300V-DP2 SMT-36300V-DP2 SMT-48300V-DP2
Output DC Voltage 12V (12-13V adjust by NFC) 24V (24-25.5V adjust by NFC) 36V (36-38V adjust by NFC) 48V (48-50V adjust by NFC)
Voltage Tolerance ±0.2V
Rated current 25A  12.5A 8.34A  6.25A
Rated power 300W
Load Regulation ±2%
Input Standby power consumption  ≤0.5W ≤0.5W ≤0.6W ≤0.6W
Voltage Range 110-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.98@120VAC  PF≥0.95@230VAC  PF≥0.90@277VAC (Full loading)
THD(Typ.)@ full load ≤10%@120VAC ;  ≤10%@230VAC;  ≤15%@277VAC
Efficiency(Typ.)@ full load 88%@120VAC;    89%@120VAC;   91%@230VAC;   91%@277VAC
AC Current(Max.) 3.5A 3.5A 3.5A 3.5A
Inrush Current (Typ.) 60A,9us@50%Ipeak(120VAC);70A,188us@50%Ipeak(230VAC)    180A,4.4us@50%Ipeak (277VAC)
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
Environment Working TEMP. -40~+70℃ (see below derating curve)
Working Humidity 20 - 95%RH,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1   EN61347-2-13 (EU)   &  UL8750  (US)
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (EU);   I/P-O/P:1.88KVAC (US)
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2  EN61000-3-3 (EU)≥50% Load  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6 ,11,  EN61547
Others Weight 1.15KG
Dimension 301*78*25.1mm (L*W*H)
packing 390*325*185mm/20PCS/CTN    G.W.:24KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

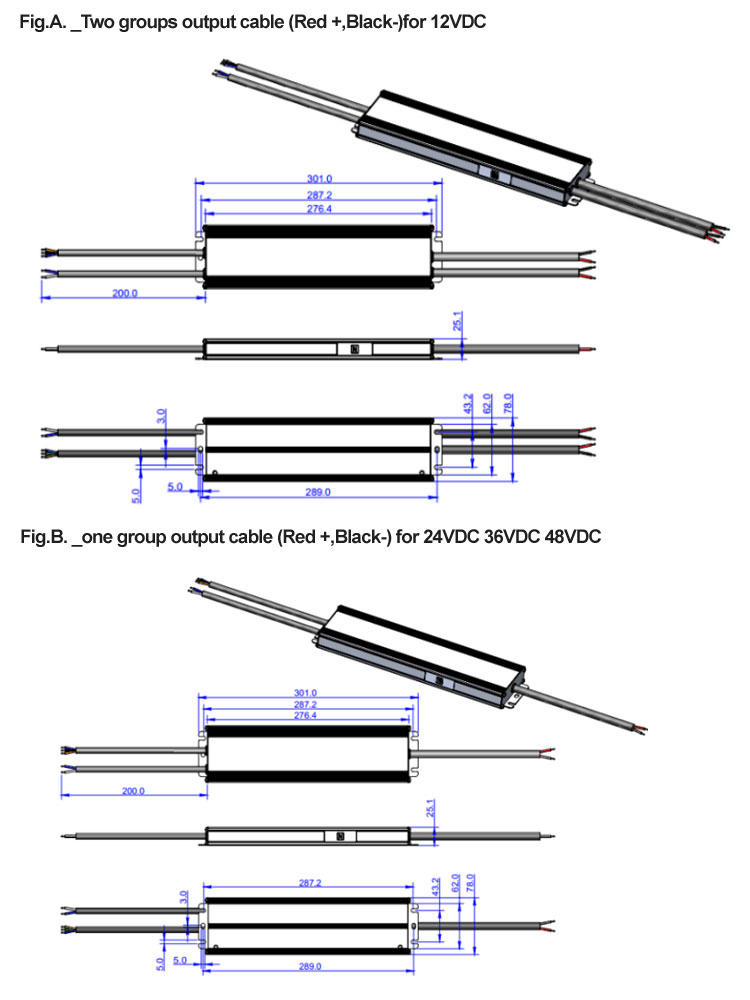

  Mechanical Specification


Input & Output wiring

※Input Rubber cable 3*1.0mm², the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)

※Output rubber cable 2*1.5mm² x2 groups for 12VDC model, Red is output ( V+) Positive, Black is output (V-) negative.

※Output rubber cable 2*1.5mm² one group for 24VDC, 36VDC, 48VDC models, Red is output ( V+) Positive, Black is output (V-) negative . Connected to LED Lamps



Dimming wiring

Dimming Rubber cable 2*1.0mm², Blue DA/N and White DA/L (No polar) connected to the DALI BUS when use DALI function .

Blue (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) when use Push function..

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.



Note:  there is external antenna at output side.  Don't disassemble!


  Dimming operation


Note: For DALI Dimming Wiring Diagram 3, please noted that

   only one DALI power is need in the DALI bus, so no extra DALI

   power is needed if the Master or Dimmer already includes the DALI

   Power.




  Related Products

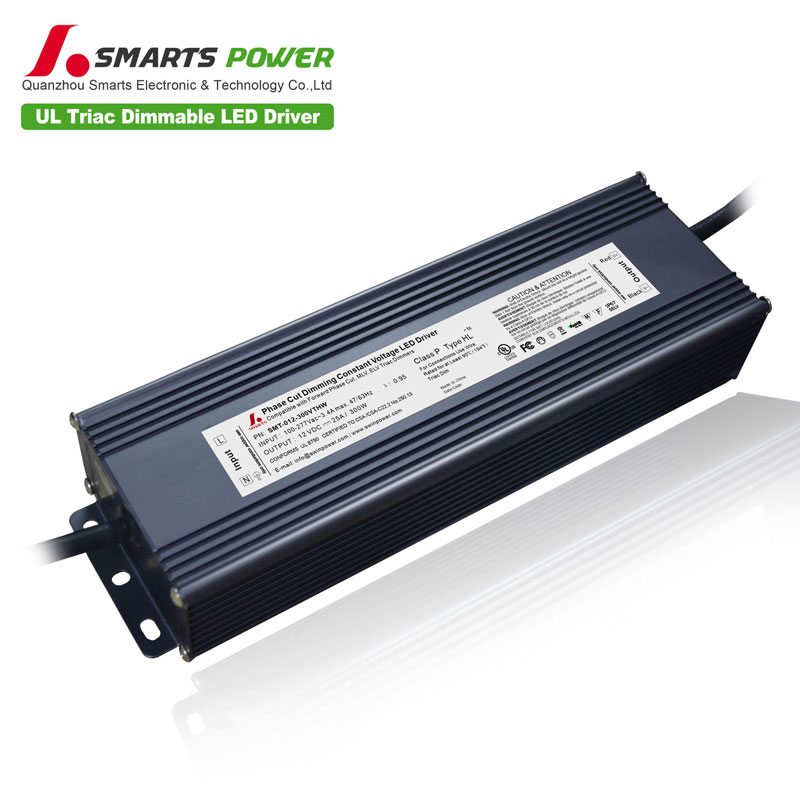

triac dimming led driver 300W UL certification, input voltage 100-277vac comply with international safety lighting regulations, suitable for outdoor lighting projects in North America
