Non-dimmable LED Driver

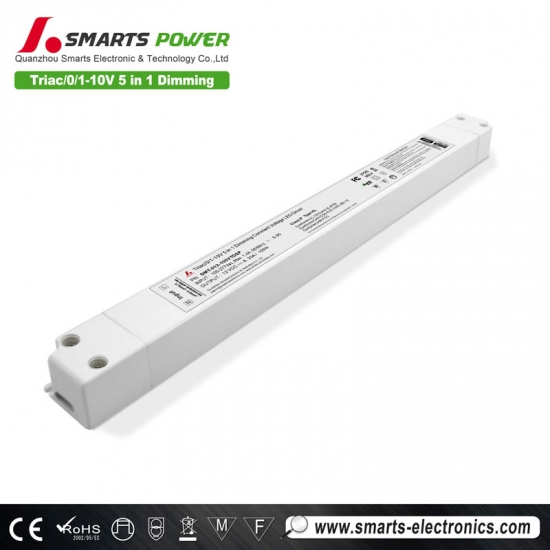

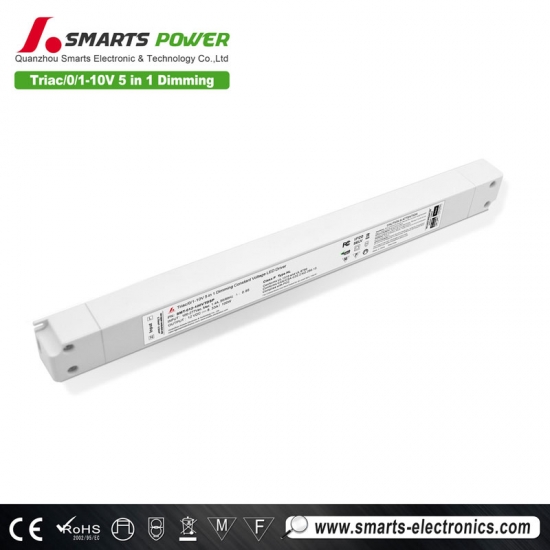

UL cUL PWM triac + 0 10v dimmable 12v 100watt dimmable led driver

This is a 100 watt led power supply with 12v 24v output. It shows strong compatibility when working with 12v 24v CV LED lights like LED strips. We recommend most LEVITON 100-130v dimmer if you are looking for a right dimmer.
  • item no.:

    SMT-012-100VTDSP
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC 24VDC
  • Output Current:

    8.33A; 4A
  • Working Mode:

    Triac + 0-10v dimming
  • Certification:

    UL cUL
  • Warranty:

    7 YEARS
inquiry now
product details

UL cUL PWM triac + 0 10v dimmable 12v 100watt dimmable led driver


Smarts 100w dimmable led driver (triac + 0-10v) is built-in PFC function. The power factor is over 0.9 and efficiency up to 85%.Except 100-130vac, LUTRON dimmer 277vac is also compatible.


  Specification:



model

SMT-012-100VTDSP

SMT-024-096VTDSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4Amp

Rated power

100W

96W (class 2)

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC

Power Factor ( Typ.)

0.98@120VAC   0.99@277VAC

Full Load Efficiency(Typ.)

82%@120VAC   86%@277VAC

85%@120VAC   88%@277VAC

AC Current(Typ.)

1.40A

Inrush Current(Typ.)

27.0A

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 ,CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.55Kg

Size

330*32*23mm (L*W*H)

packing

50PCS/CTN   Carton size:350*330*145mm



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

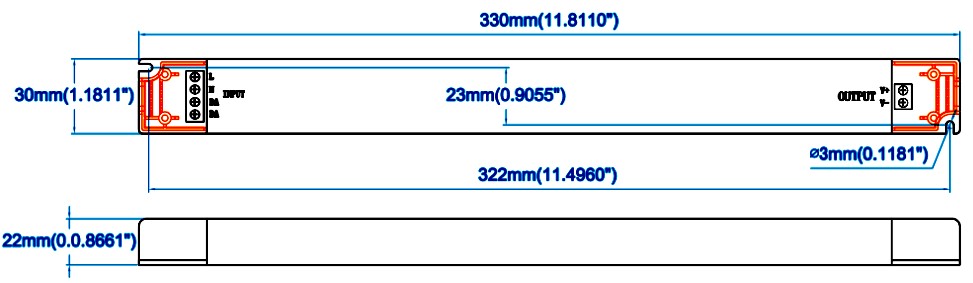

  ■ Mechanical Specification


100w dimmable led driver



Ø Input terminals "Black" and "White" to connect to AC L and N.

Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Ø Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

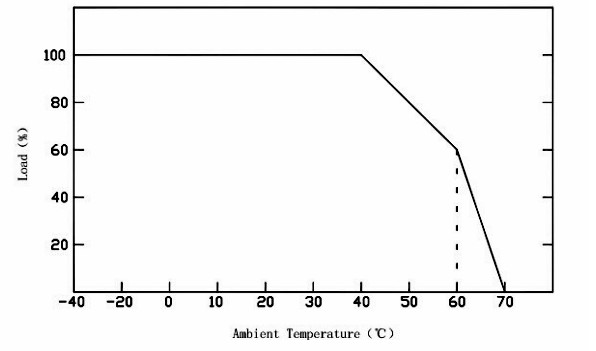

  ■Derating Curve


100w dimmable led driver

Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

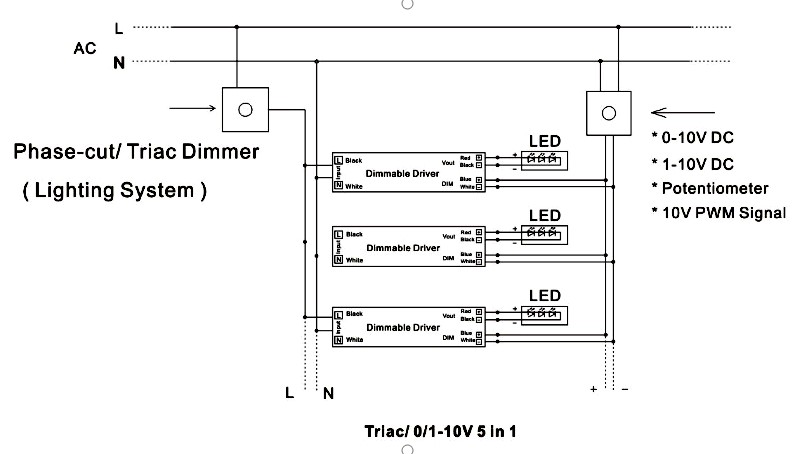

  ■ Dimming Operation and Connecting Diagram


Ø Using two ways of dimming at the same time,customers should be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

100w dimmable led driver

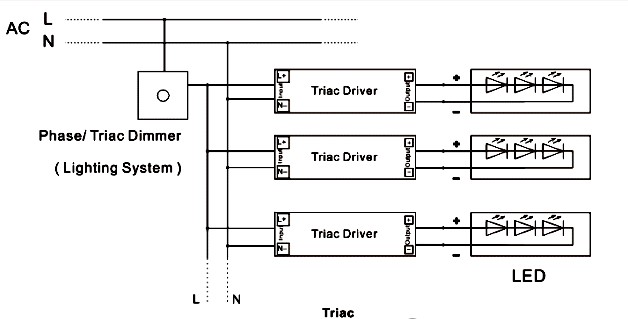

 Using one dimming ---TRIAC/Phase cut dimming

Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers

Ø Min loading is about 10%

Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.



100w dimmable led driver



  ■ Instruction:


※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;

※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com  Or take a phonecall: 0086-595-27256889

 For more details, pl. Login our official website: www.smarts-electronics.com



  Compatible Light Type


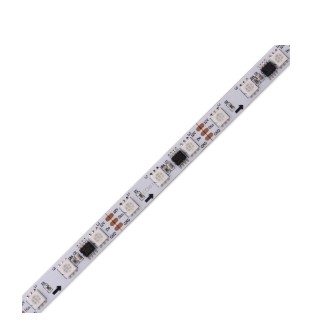

With plastic case and rated IP20, this LED power supply 100 watt is more recommended for indoors using. And coxotech led strips 12v works nice.




LED power supply 100 watt



  Related Products

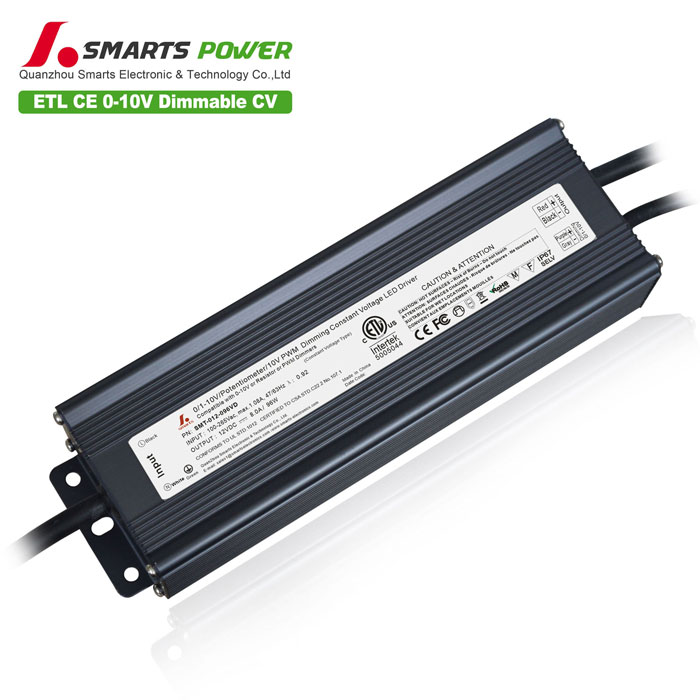

12 led power supply
