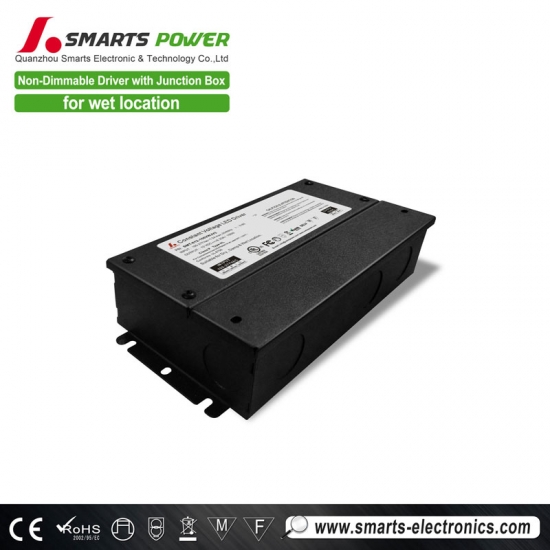

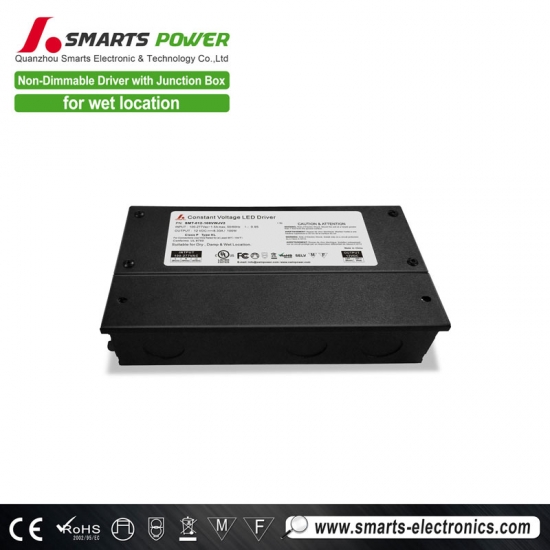

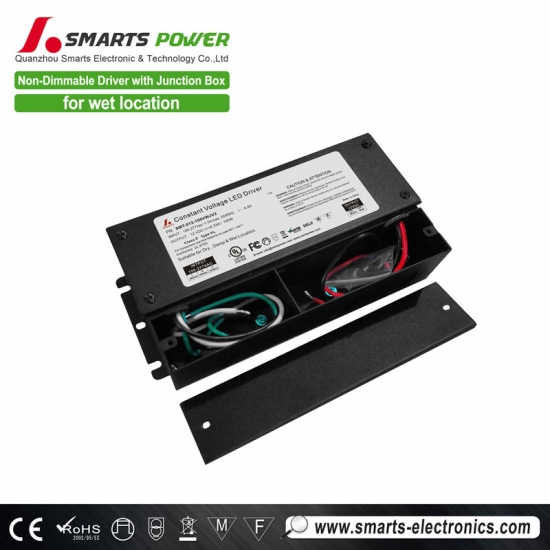

UL certificate 110v 277v input 12v 100watt led driver with junction box for led strip

model

SMT-012-100VWJ (1.0 version)

SMT-012-100VWJV2 (2.0 version)

SMT-024-096VWJ  (1.0 version)

SMT-024-100VWJV2 (2.0 version)

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

8.3A

4.0A

Rated power

100W

96W（Class 2）

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.99@120V ;0.97@230V ;0.95@277V

0.99@120V ;0.97@230V ;0.97@277V

THD(Typ.)@ full load

<15% @120V    <20%@230V      <20% @277V

Efficiency(Typ.)@ full load

81%@120V  85%@230V  85%@277V

83%@120V 88%@230V  87%@277V

AC Current(Max.)

1.5A (100VAC)

Inrush Current (Typ.)

20A,50% ,1.6ms@120V ; 30A,50% 200us@230V ;  25A 50% 1.2ms@277V

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault condition removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.

Environment

Working TEMP.

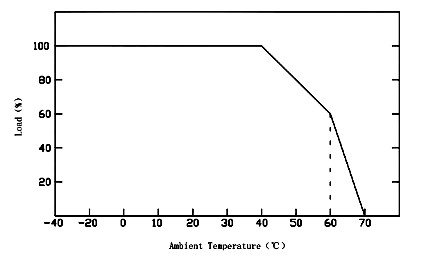

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 10min./1 cycle, period for60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

1.3Kg

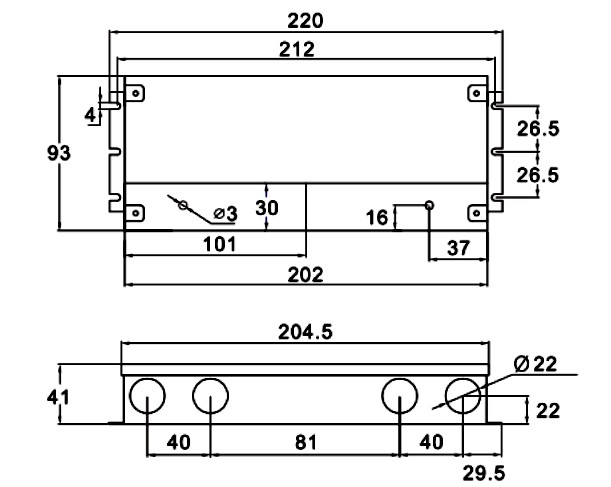

Size

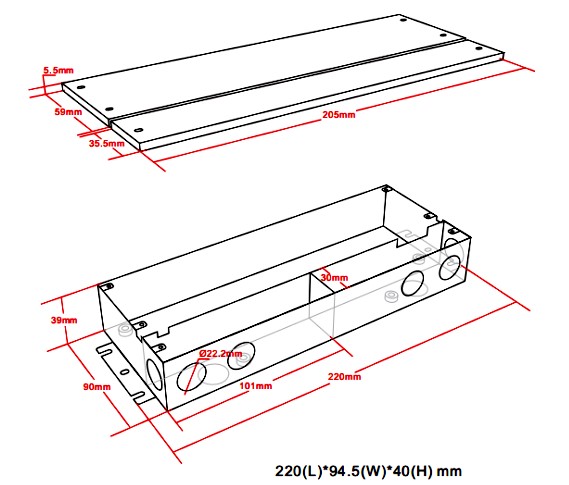

1.0 version: 220*93*40mm (L*W*H) / 2.0 version: 220*94.5*40mm

packing

10PCS/CTN 385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

1. 2. To extend the driver's using life ,please reduce the loading at lower input voltage.
