Non-dimmable LED Driver

Constant Voltage 90-305Vac Dimmable Outdoor LED Drivers

Our VTH Series line of Constant Voltage wide-input voltage (90-305Vac) ul controladores led is dimmable for indoor or outdoor lighting applications.
  • item no.:

    SMT-012-300VTH
  • lead time:

    about 7 working days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen port
  • Input Voltage:

    90-305vac
  • Output Voltage:

    12v & 24v dc
  • Output Current:

    25A
  • Working Mode:

    Constant Voltage
  • Certification:

    UL/cUL CE Rohs
  • Warranty:

    5 Years
inquiry now download
product details

Constant Voltage 90-305Vac Dimmable Outdoor LED Drivers

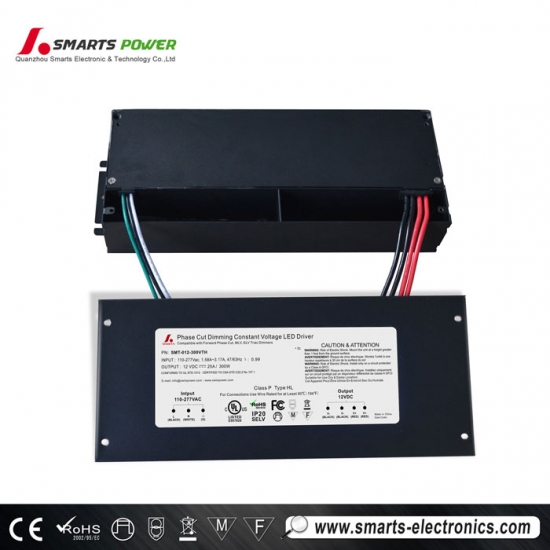

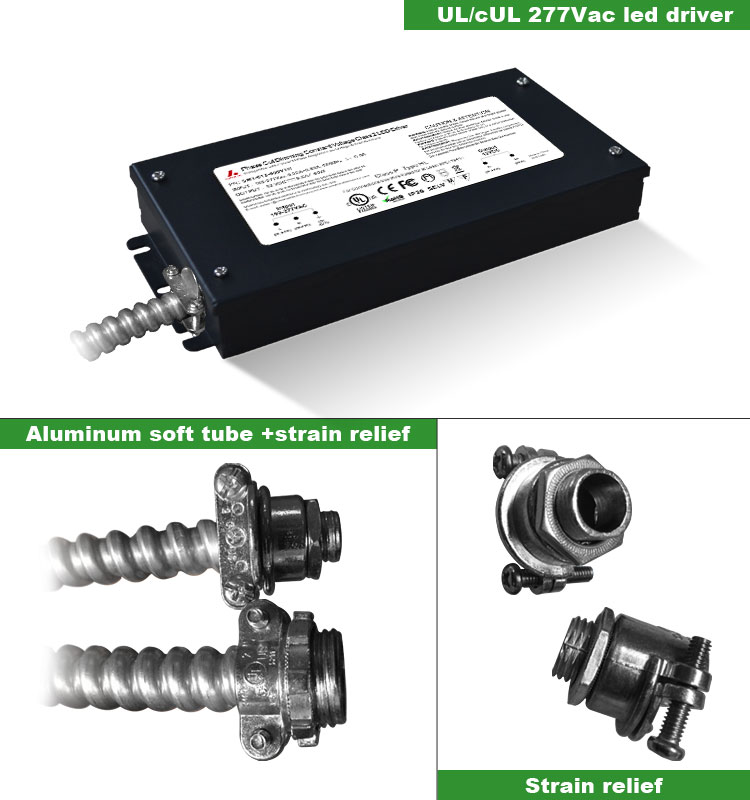

Our VTH Series line of Constant Voltage wide-input voltage (90-305Vac) UL Listed LED Drivers is dimmable for indoor or outdoor lighting applications.  This Dimmable LED Driver comes complete with distinct junction boxes for both the high and low voltage load. Furthermore, the Dimmable LED Driver includes two integrated mounting brackets, making it easy to securely screw it in place.



  Specifications for dimmable led driver


SMT-012-300VTH-(12v 25A 300w)

Physical Size:260*103*44.5mm

IP67 Design for Indoor or LED Outdoor Installations

Universal Input: 90-305 VAC
Bulit-in Active PFC Function

Free Air Convection
High Reliability
Constant Voltage Mode
LED Power Application
5-Years Product Warranty
High Efficiency up to 97%

high PFC> 0.98


Model

SMT-012-300VTH

SMT-024-300VTH

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

±1%



Rated current

25.0A

12.5A

Rated power

300W

Input

Voltage Range

100-277VAC

Frequency Range

4763HZ

Power Factor(Typ.)@ full load

0.98@120VAC  0.97@277VAC

0.98@120VAC  0.97@277VAC

THDTyp.@ full load

<20%

Inrush Current Typ.

20A, 50%, 1.4ms

Full Load

EfficiencyTyp.

>88%

>88%

AC CurrentTyp.

3.4A@110VAC

1.76A

1.76A

.A

1.74A

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz 2G 10min./1 cycleperiod for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P: 3.50KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (50%load) / FCC Part 15 B

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11Surge 4KV

Others

Weight

1.9Kg

Size

278*108*46mm (L*W*H)

packaging

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated

  load and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.

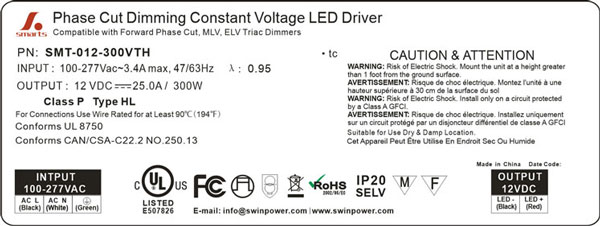

  Label
led driver suppliers



Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver


led driver suppliers


We have developed high PFC> 0.98 , high efficiency> 97% 277vac triac / dali / 0-10v dimmable led driver.They are:

--- triac dimmable LED drivers:   12VDC   &   24VDC      100W, 150W,  200W, 250W, 300W with junction boxes attached .. 5 years warranty

---  0-10V dimmable LED drivers:   12V & 24V  100W ,    24V  120W ,    12V & 24V   150W,      12V  & 24V  180W ,    24V   200W  3 years warranty

--- DALI dimmable LED drivers:   12V & 24V  100W ,    24V  120W ,    12V & 24V   150W,      12V  & 24V  180W ,    24V   200W  3 years warranty


Why choose Smarts Electronics' 12v led driver?

We are the manufacturer of high-tech research and development in LED control system.
2.Most of our LED controllers have got the ETL UC FCC CE,ROSH certificates.
3.Three warranty for LED controller products
4..OEM and ODM are welcome.
5.Professional team will follow the whole after-sale.
6.A variety of shipping methods for your choice.
7.Prompt delivery and professional after-sales service.



  Delivery information for high power led driver


Packing

Packing Way: 1 piece with one inner carton, 10 inner carton with one outer carton



Shipping
1. By air
Your order will be delivered by DHL, Fedex, UPS, TNT or EMS, It's up to you to choose your favorite express company. It normally takes 3~7 days to arrive at your destination.



2.By sea
Your regular orders will be shipped by vessel if total volume is large.

Shipments will be operated under FOB, EXW tradeterms


Payment
Western Union, Paypal is the first option for samples payment.
T/T is for regular order payment. (30% deposit in advance, 70% before shipment)
