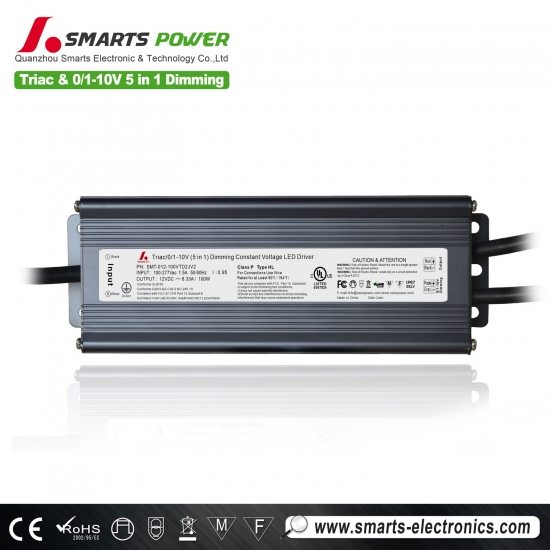

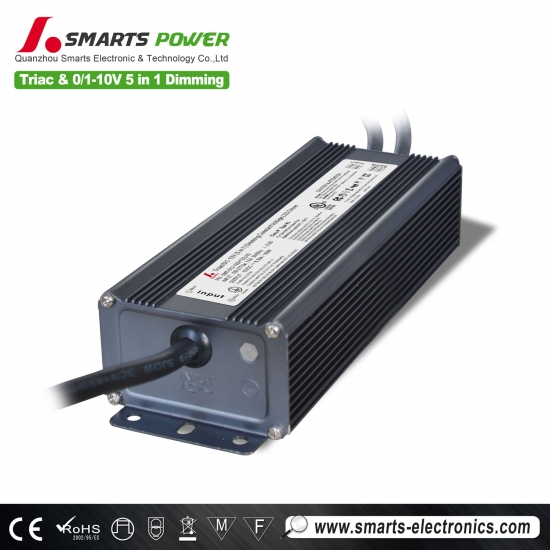

100w constant voltage led driver 5 in 1 dimmable transformer 12v
100w constant voltage led driver offer superior dimming performance for the widest selection of dimming switches. and provides the smoothest dimming from 100% down to 0%. They offer superior dimming performance when paired with Lutron TRIAC dimmer controls DV-600PR-WH.
Product parameters
|
model |
SMT-012-100VTD2JV2 |
SMT-024-096VTD2JV2 |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
|
|
|
Voltage Regulation |
±0.5% |
|
|
|
Rated current |
8.33A |
4.0A |
|
|
Rated power |
100W |
96W |
|
Input |
Voltage Range |
100~277V AC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
0.99@120VAC 0.96@277VAC |
0.98@120VAC; 0.95@277VAC |
|
|
THD(Typ. ) @ full load |
<20%@120VAC &277VAC |
|
|
|
Full Load Efficiency(Typ.) |
80%@120VAC 83%@277VAC |
83%@120VAC 86%@277VAC |
|
|
AC Current（Typ.） |
1.4A |
|
|
|
Inrush Current （Typ.） |
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC |
|
|
|
Leakage current |
<0.5mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
|
|
Working Humidity |
20 - 95%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40 - +80℃,10 - 95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃(0 - 50℃) |
|
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750 + UL1310, class 2 CAN/CSA-C22.2 No.250.13 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|
|
Others |
Net Weight |
1.1Kg |
|
|
|

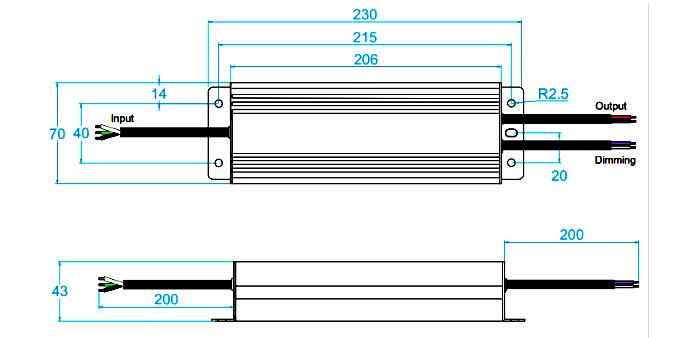

Size |
230*70*43mm（L*W*H） |
|
|
|
packing |
Carton size: 340*275*170mm , 10PCS/ctn |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
Mechanical Specification
Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC
Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Compatible Strip Lighting Type
Flexfire LEDs UL Listed strip lights with newly-designed solder pads for effortless soldering, thermally resistant 3M VHB 4930 adhesive for long-lasting bond, thick 4oz pure copper PCB for excellent thermal management, cpmtailble well with transformer 12v 100w.

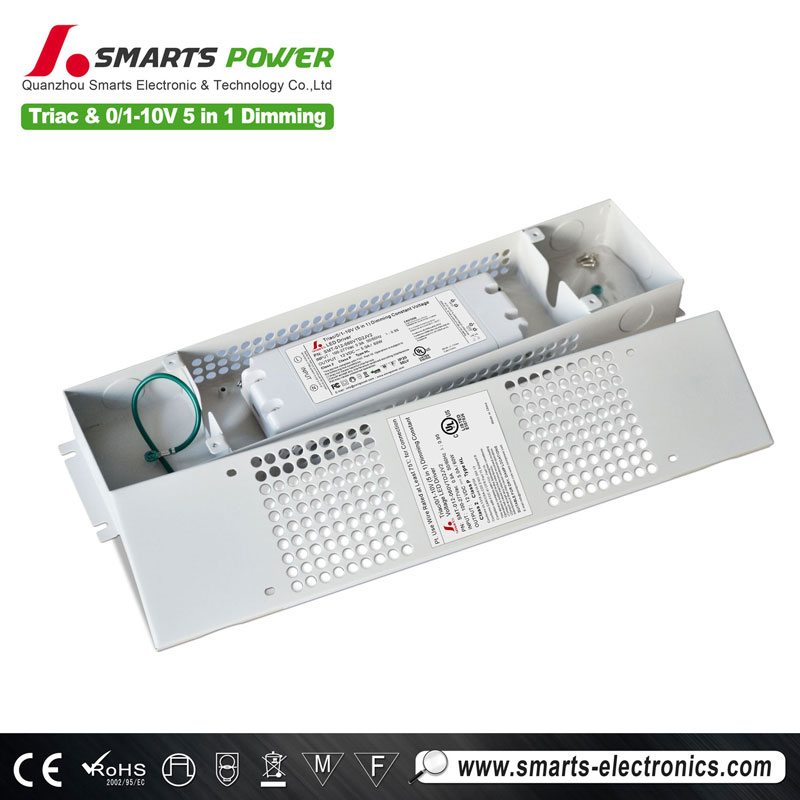

Related Products
|
Mode：SMT-012-060VTD2JV2 |
