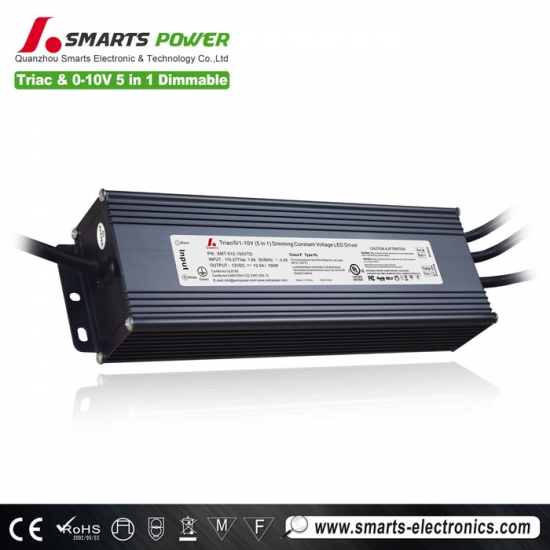

UL 150w led driver 12v dc 5 in 1 dimmable power supply IP67

model

SMT-012-150VTD

SMT-024-150VTD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

12.5A

6.25A

Voltage Regulation

±0.5%

Load Regulation

±2 %

±1 %

Rated power

150W

150W

Input

Voltage Range

100~277V AC

Frequency Range

47～63HZ

THD(Typ.) @full load

<20%

Power Factor ( Typ.）

0.98@120VAC  0.95@277VAC

0.97@120VAC  0.94@277VAC

Full Load Efficiency(Typ.)

85%@120VAC   86%@277VAC

85%@120VAC   87%@277VAC

AC Current（Typ.）

1.8A/110VAC

Inrush Current （Typ.）

15A, 50%, 1.4ms @120VAC;   30A, 50% 1.4ms @277VAC

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Loading

≤120% constant current limiting, auto-recovery

Environment

Working TEMP.

-40～+60℃

Working Humidity

20～90%RH,non-condensing

Storage TEM.,Humidity

-40～+80℃，10～95%RH

TEMP.coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz，2G 10min./1 cycle，period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750 , CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Net Weight

1.5Kg

Size

256*78*47mm(L*W*H)

packing

340*280*185mm    10pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
