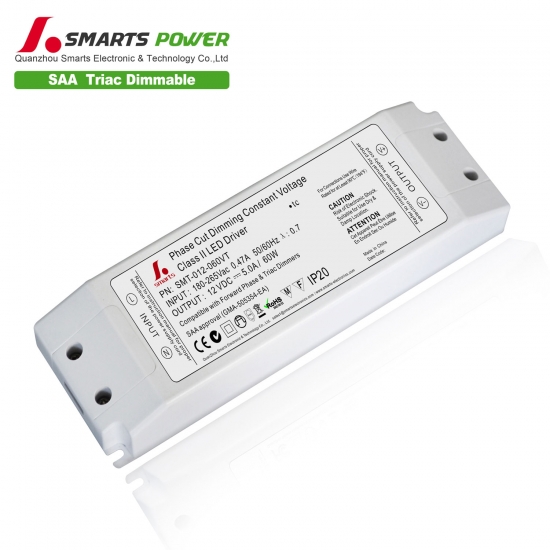

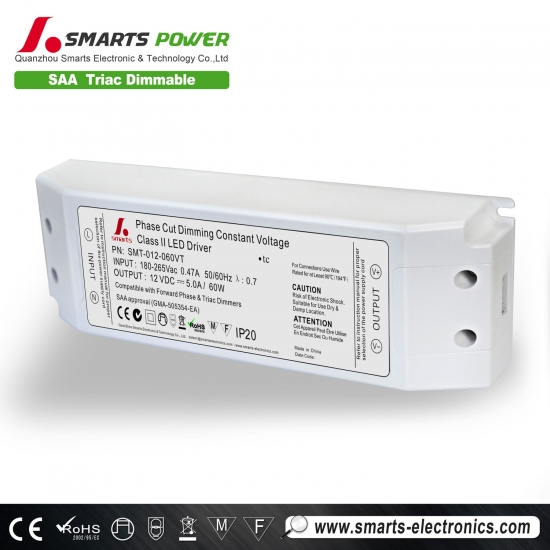

Wholesale LED panel light driver 12v 60w triac dimmable constant voltage led power supply
|
phase cut dimming power supply 12v 5a 60w triac dimmable driver are ETL ROHS FCC Certification, constant voltage working mode, aluminum cover, Compatible with Forward phase, Reverse phase, Triac, ELV Dimmers. Suitable for LED lighting and moving sign applications. |
Product Specification
T/T, Western Union, Paypal, Trade Assurance
Model
SMT-012-060VT
Output
DC Voltage
12V
Rated Current
5A
Rated Power
60w
Input
Voltage Range
100-130V AC/170-265V AC
Frequency Range
47-63Hz
PF
>0.95
Efficiency
>85%
Environment
Working Temp.
-40~+60℃
Storage Temp.,Humidity
-40~+80℃
Temp. coefficient
±0.03%/℃(0~50℃)
Others
Size
180*60*34mm
IP code
IP20
Packing
309*279*176,20pcs/ctns
Warranty
5 years
Certificate
CE/ROHS/ETL/FCC
Delivery
7 working days for sample order,12 working days for 500pcs
Payment terms
Problem analysis
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 10pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL
