0-10V,1-10V dimmalbe constant voltage dimmable 100w 12v led driver

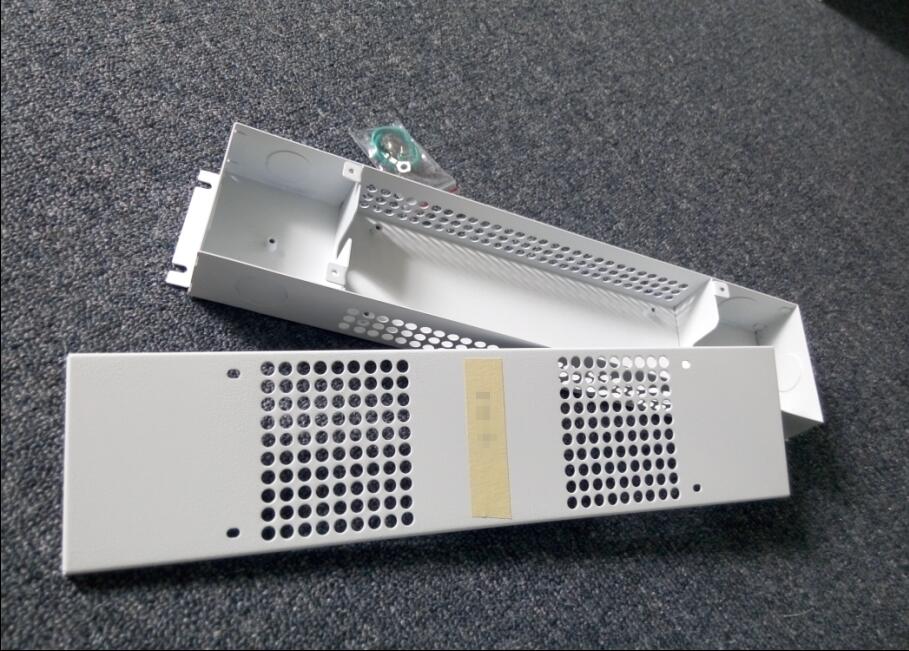

CE/ETL approval Dimmable LED Driver with Junction Box

item no.:
SMT-012-100VD
lead time:
about 7 working days
product orgin:
China
brand:
SMARTS
shipping port:
Xiamen
payment:
T/T Paypal Western Union
Input Voltage:
100-277VAC
Output Voltage:
12V
Output Current:
8.33A
Working Mode:
Constant Voltage
Certification:
CE ROHS
Warranty:
3 years

inquiry now

product details

Model		SMT-012-100VD	SMT-024-100VD
Output	DC Voltage	12V	24V
	Voltage Accuracy	±0.5V
	Rated current	0-8.3A	0-4.15A
	Rated power	100W	100W
	Ripple&noise Max.	200mVp-p 350mVp-p 350mVp-p	250mVp-p 400mVp-p
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor ( Typ.)	>0.92	>0.92
	Full Load Efficiency(Typ.)	88% 86% 87%	88% 88%
	AC Current(Typ.)	1.5A/120VAC 1.2A/170VAC 0.88A/220VAC 0.73A/265VAC
	Leakage current	<0.25mA/110V,220VAC
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	<280VAC
	Over temperature	100℃±10℃ shut down o/p voltage, re-power on to recover
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~95%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
Safety&EMC	Safety standards	EN61347-2-13.IP67
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (>50%Load)
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV)
Others	Weight	1.32Kg
	Size	2406653mm(LWH)
	packing	329279176mm/10pcs
	Notes	1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation .
Label

Feature

Output constant voltage

range :100~265VAC

Built-in PFC function

Efficiency >88% / PF>0.9

Protections:short circuit/over current/over voltage/over temperature

Cooling by free air convection

P67 design for indoor or outdoor installations .

Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .

Suitable for LED lighting and moving sign applications

Compliance to worldwide safety regulations for lighting

Suitable for dry/damp/wet locations

3 years warranty

100W dimmable driver Mechanical Specification

dimmable 100w 12v led driver ip67

Input 18AWG*3C,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)

Signal 18AWG*2C,Red is(DIM+),Black is(DIM-)

Output 18AWG*2C,Blown is output(V+),Blue is output(V-)

Note: Any other requests we can customized.

Dimming Operation

Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-

Reference resistance value for output current adjustment (Typical)

Resistance value	Signal driver	0Ω	10KΩ	20KΩ	30KΩ	40KΩ	50KΩ	60KΩ	70KΩ	80KΩ	90KΩ
Resistance value	Multiple drivers	0Ω/N	10KΩ/N	20KΩ/N	30KΩ/N	40KΩ/N	50KΩ/N	60KΩ/N	70KΩ/N	80KΩ/N	90KΩ/N
Percentage of rated current		0%	10%	20%	30%	40%	50%	60%	70%	80%	90%

1-10/0-10V dimmable function for output current adjustment(Typical)

Dimming value	0V	1V	2V	3V	4V	5V	6V	7V	8V	9V	10V	OPEN
Percentage of rated current	0%	10%	20%	30%	40%	50%	60%	70%	80%	90%	100%	102%-108%

10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ

Duty value	0%	10%	20%	30%	40%	50%	60%	70%	80%	90%	100%	OPEN
Percentage of rated current	0%	10%	20%	30%	40%	50%	60%	70%	80%	90%	100%	102%-108%

Derating Curve

Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
Our Constant Voltage Dimmable LED Drivers have been designed to meet the evolving and expanding lighting industry requirements. while delivering a reliable and constant performance for a wide portfolio of LED lighting applications.

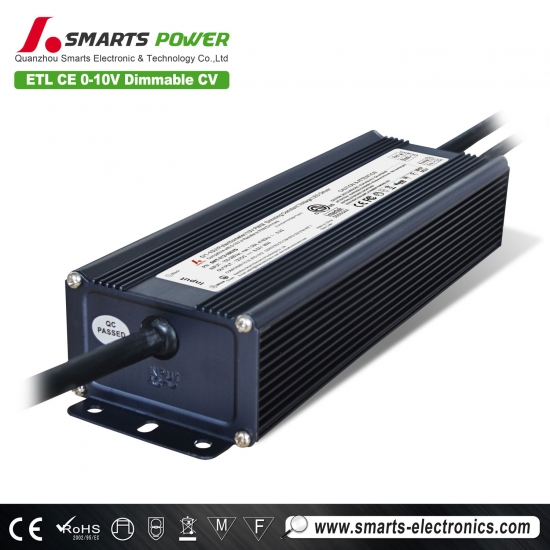

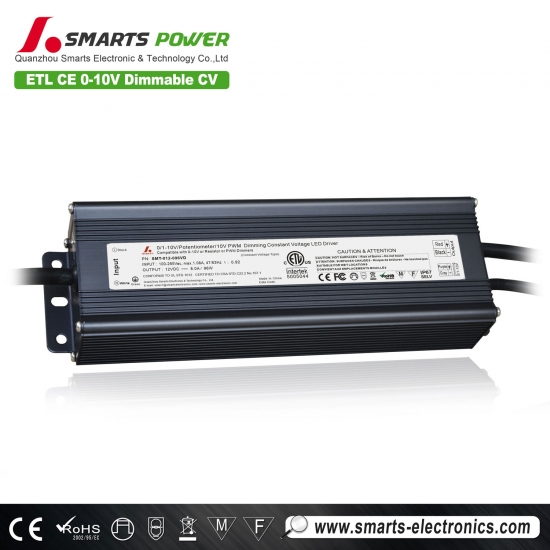

12v 100w 0-10v Dimmable LED Driver with Junction Box
