0-10v pwm dimmable constant voltage 12v 80w led driver for led driver lighting
SMT-012-080VDH is a constant voltage power supply of 0-10v pwm dimmable series. It is used for led driver lighting with an output voltage of 12v and an output power of 80W, and the net weight is 1.3Kg.
Specification
model
SMT-012-080VDH (1.0 version)
SMT-012-080VDHV2 (2.0 version)
SMT-024-080VDH (1.0 version)
SMT-024-080VDHV2 (2.0 version)
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
6.66A
3.33A (class 2 type)
Rated power
80W
80W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.95/110V , PF≧0.95/277V
THD（Typ.）@ full load
<20%
Full Load Efficiency(Typ.)
86%@120VAC 88%@277VAC
AC Current（Typ.）
1.3A @110VAC
Inrush Current （Typ.）
18A, 50%, 1.6ms
1.0A/120VAC 0.63A/170VAC 0.50A/220VAC 0.41A/277VAC
Leakage current
﹤0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.3Kg (1.0 version)
Size
1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm(L*W*H)
packing
330*280*176mm / 10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
Features
·Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations . ·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance . ·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Dimming Operation
Ø Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
Ø Reference resistance value for output current adjustment (Typical)
|
Resistance value |
Signal driver |
0Ω |
10KΩ |
20KΩ |
30KΩ |
40KΩ |
50KΩ |
60KΩ |
70KΩ |
80KΩ |
90KΩ |
100KΩ |
OPEN |
|
Multiple drivers |
0Ω/N |
10KΩ/N |
20KΩ/N |
30KΩ/N |
40KΩ/N |
50KΩ/N |
60KΩ/N |
70KΩ/N |
80KΩ/N |
90KΩ/N |
100KΩ/N |
—— |
|
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
|
Ø 1-10/0-10V dimmable function for output current adjustment(Typical)
|
Dimming value |
0V |
1V |
2V |
3V |
4V |
5V |
6V |
7V |
8V |
9V |
10V |
OPEN |
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |
Ø 10V PWM signal for output current adjustment (Typical): Frequency range:100Hz-3KHZ
|
Duty value |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
OPEN |
|
Percentage of rated current |
0% |
10% |
20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
102％-108％ |

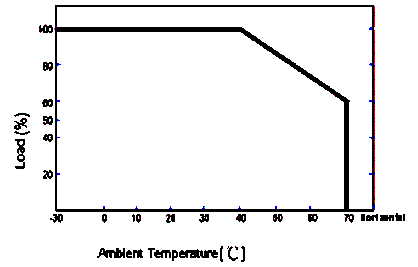

Derating Curve
