Non-dimmable LED Driver

UL led driver 60 watt 24v ac to dc constant voltage power supply for led lights

SMT-024-060VDH is a 24v power supply of the 0-10v dimmable series. Compared with other products, it has a junction box and another selling point is that it is also a seven-year warranty with UL certification.
  • item no.:

    SMT-024-060VDH
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24V
  • Output Current:

    2.5A
  • Working Mode:

    CV
  • Certification:

    UL
  • Warranty:

    7
inquiry now
product details

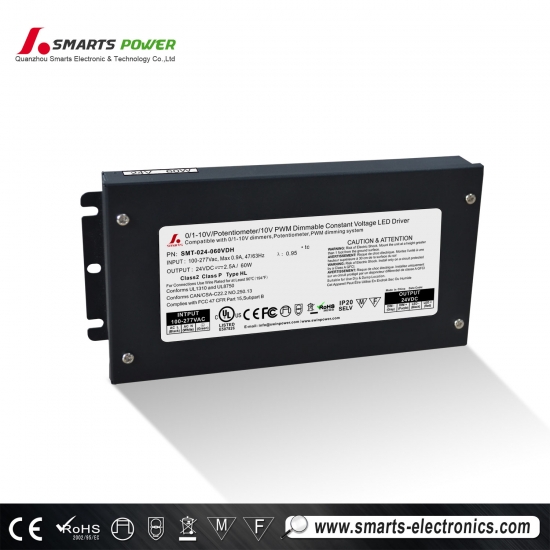

UL led driver 60 watt 24v  ac to dc constant voltage power supply for led lights

SMT-024-060VDH is a 24v power supply of the 0-10v dimmable series. Compared with other products, it has a junction box and another selling point is that it is also a seven-year warranty with UL certification. The waterproof rate is IP20.


  Specification


model

SMT-012-060VDH

SMT-024-060VDH

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

5.00A

2.50A

Load Regulation

±1%

Rated power

60W

60W

Input

Voltage Range

100-277V AC

Frequency Range

4763HZ

Power Factor ( Typ.

0.[email protected]  0.[email protected]

0.[email protected]  0.[email protected]



Full Load EfficiencyTyp.

>88%

>89%

AC CurrentTyp.

0.9A/110VAC

Inrush Current Typ.

14A, 50%, 780us

Leakage current

<0.50mA

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over voltage

140VAC(90~135V) , ≦285VAC(170~277V)

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV)

Others

Weight

About 1.1Kg

Size

188*92*26mmL*W*H

packing

10PCS/CTNL*W*H

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



0/1-10V / Potentiometer / 10V PWM (3 in 1) Dimmable LED Driver connecting solution:

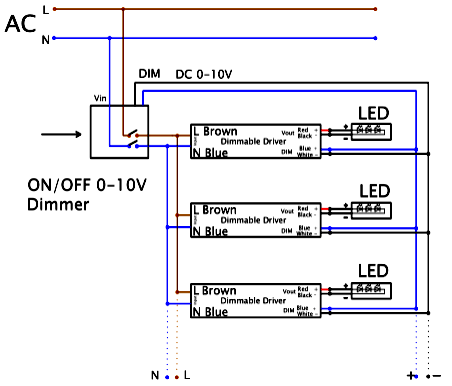

Diagram 1 as below:

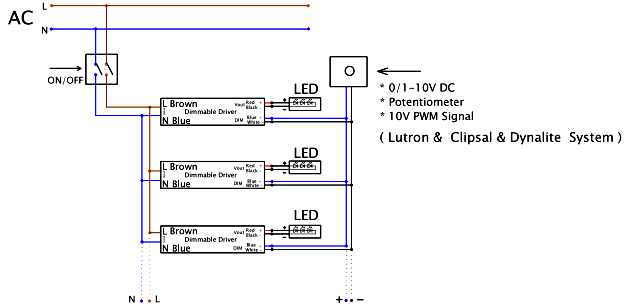

Diagram 2 as below:
