UL 0-10V led light power supply ip20 12v 60 watt power supply with junction box

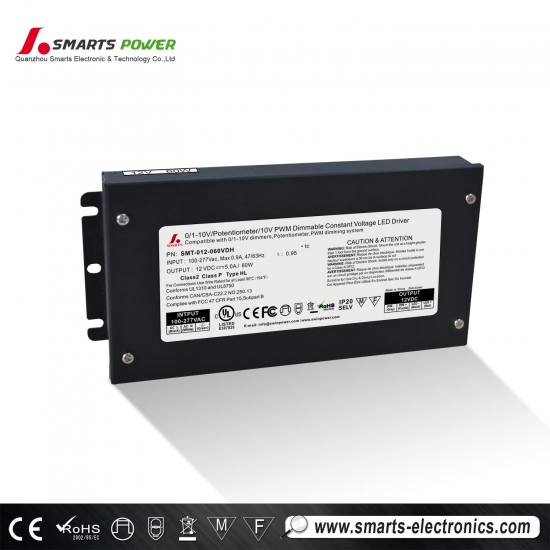

SMT-012-060VDH is 12v and 60w power supply with junction box. It is a 277v high voltage led driver and ObtainS UL certification.ItsIP20 is design for indoor or outdoor installations.
Features
·Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations . ·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance . ·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Specification
|
model |
SMT-012-060VDH (1.0 version) SMT-012-060VDHV2 (2.0 version) |
SMT-024-060VDH (1.0 version) SMT-024-060VDHV2 (2.0 version) |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
5.00A |
2.50A |
|
|
Load Regulation |
±1% |
||
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD（Typ.）@ full load |
<20% |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency（Typ.） |
>83% |
>86% |
|
|
AC Current（Typ.） |
0.9A/110VAC |
||
|
Inrush Current （Typ.） |
14A, 50%, 780us |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety& EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
About 1.1Kg |
|
|
Size |

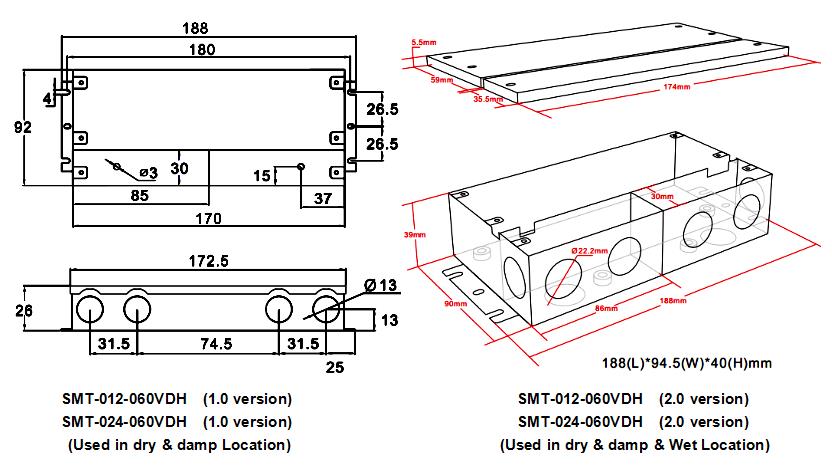

1.0 version: 188*92*26mm(L*W*H) / 2.0 version: 188*94.5*40mm(L*W*H) |
||
|
packing |
305*200*180mm / 10PCS/CTN （L*W*H）
|
||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
||
 |
 |
 |
 |
Mechanical Specification
(1) Input wire Black and White to be connected to AC L and N ,Green wire go ground,
(2) Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
(3) Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
(4) Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
