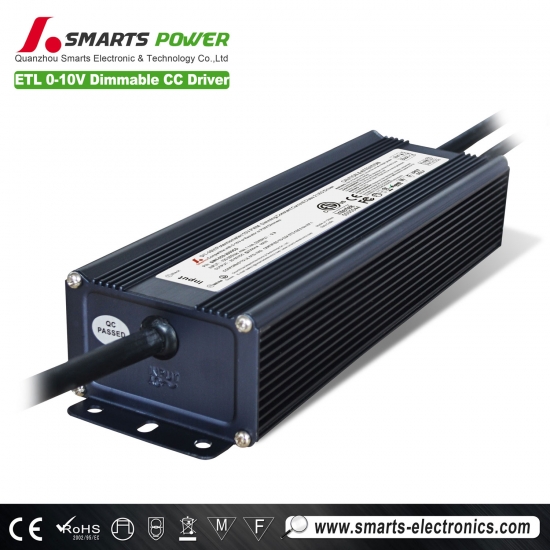

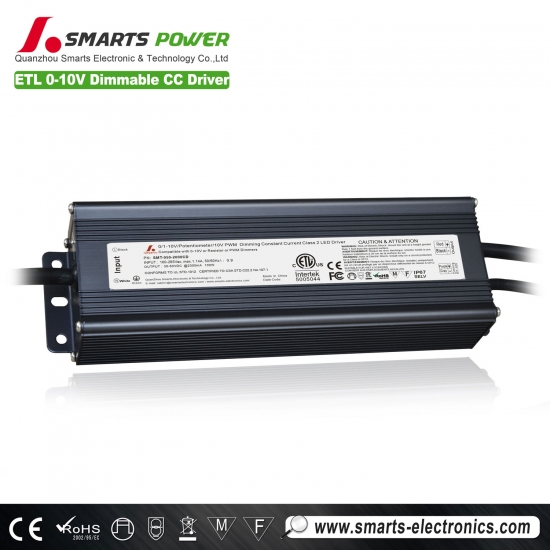

100W 2000mA dimmable led power driver constant current for led flooding light
Model
SMT-100-1050CD
SMT-071-1400CD
SMT-060-1750CD
SMT-050-2000CD
SMT-042-2400CD
Output
DC Current
1050mA
1400mA
1750mA
2000mA
2400mA
Current Accuracy
±5%
Voltage Range
55-100V
45-71V
40-60V
30-50V
25-42V
Rated power
105W
100W
100W
100W
100W
Input
Voltage Range
100～265VAC
Frequency Range
47～63HZ
PF
PF≧0.96/110V/PF≧0.98/220V
Full Load Efficiency（Typ））
>87%(110,220V)
>87%(110,220V)
>87%(110,220V)
>87%(110,220V)
>87%(110,220V)
AC Current (Typ.）
1.08A/220VAC
0.504A/220VAC
1.10A/110VAC
0.522A/220VAC
1.12A/110VAC
0.537A/220VAC
1.122A/110VAC
0.533A/220VAC
1.20A/110VAC
0.560A/220VAC
Leakage current
﹤3.5mA/110VAC, ﹤3.8mA/220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage
≦280VAC
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environmet
Working TEMP.
-40～+60℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 IP67
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Others
Weight
1.2Kg/pcs
Size
230*68.5*43mm（L*W*H）
packing
329*279*176mm/10pcs /CTN inner box size:245*80*58mm
Notes
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
Feature
- VoltageRange: 100-265VAC
- Built-in PFC function, PF>09
- Efficiency>87%
- Protections:short circuit/over current/over voltage/over temperature
- Cooling by free air convection
- IP67 design for indoor or outdoor installation .
- Dimming function:0-10V/10V PWM or potentiometer dimming.
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Suitable for dry/damp/wet locations
- 3 years warranty
Dimming Operation
- Built-in 3 in 1 dimming function, IP67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 0/1-10V DC or 10V PWM signal between DIM+ and DIM-
- Reference resistance value for output current adjustment (Typical)
