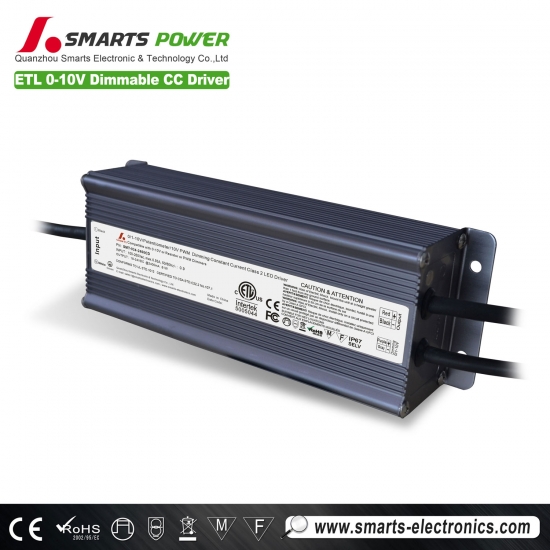

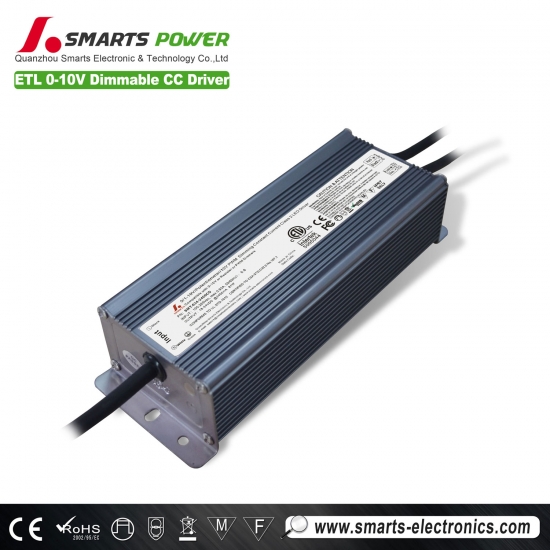

OEM supplier 2400mA 81w dimmable led power supply
|
Model |
SMT-057-1400CD |
SMT-040-2000CD |
SMT-038-2100CD |
SMT-034-2400CD |
|
|
Output |
DC Current |
0-1400mA |
0-2000mA |
0-2100mA |
0-2400mA |
|
Current Accuracy |
±5% |
||||
|
Voltage Range |
35-57V |
20-40VV |
20-38V |
18-34V |
|
|
Rated power |
80W |
80W |
79W |
81W |
|
|
Input |
Voltage Range |
100~265VAC |
|||
|
Frequency Range |
47~63HZ |
||||
|
PF |
PF≧0.9/110V, PF>0.93/220V |
||||
|
Full Load Efficiency(Typ)) |
>89% |
>90% |
>90% |
>90% |
|
|
AC Current (Typ.) |
0.352A/110V-220VAC |
0.349A/110V-220VAC |
0.370A/110-220VAC |
0.370A/110-220VAC |
|
|
Leakage current |
﹤0.75mA/220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Over voltage |
≦280VAC |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40~+60℃ |
|||
|
Working Humidity |
20~95%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||||
|
Others |
Weight |
1.1Kg |
|||
|
Size |
200*68.5*45mm(L*W*H) |
||||
|
packing |
Carton: 329*279*176mm, 10pcs /CTN inner box: 245*80*58mm |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110-220VAC input , rated load and 25℃ of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
 |
 |
 |
 |
|
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage
(vDC) |
Output Current |
power (Watt) |
Working.
Temp |
Protection grade |
|
SMT-034-2400CD |
100-265V |
47~63Hz |
18-34V |
2400mA |
81W |
-40~50°C |
IP67 |
Features
- Input range :100-265VAC
- Built-in PFC function
- Efficiency > 84% / PF>0.9
- Protections:Short circuit/over Voltage
- Fully isolated aluminum housing
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 3 years warranty
- Lifespan:(MTBF)50,000 hours
Protection
- Short Circuit: Hiccup mode, recovers automatically after fault condition
- Over voltage: <270VAC 0r =270VAC
Environment parameter
- Working temperature: -40~+60℃
- Working humidity:20~90%RH,non-condensing
- Storage TEM.,Humidity: -40~+80℃,10~95%RH
- TEMP.coefficient: ±0.03%/℃(0~50℃)
- Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
- EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
Packaging & Shipping
| OEM supplier 2400mA 81w dimmable led power supply | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 1100 g | 13.2kg | 10pcs | 324*298*176mm |
