Non-dimmable LED Driver

high power 230w 6500mA constant current dimmable led driver

high power 200w 6500mA led driver ; 200w 6500mA constant current dimmable led driver
  • item no.:

    SMT-036-6500CD
  • lead time:

    15 working days for 500pcs
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T; Paypal; Western Union
inquiry now
product details

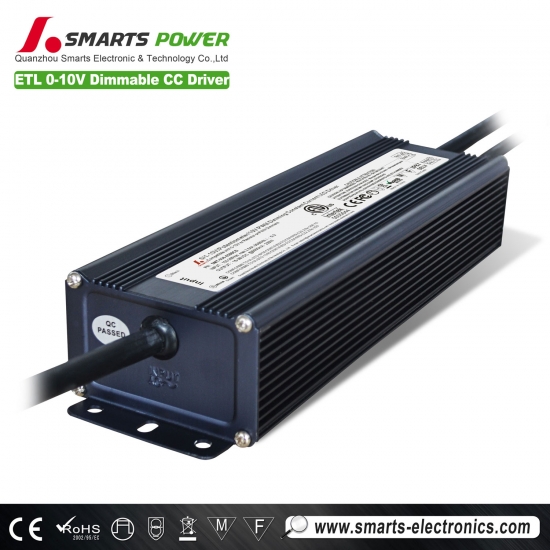

high power 230w 6500mA constant current dimmable led driver

Product Description



0-10v dimmable 6500mA 230W ELV dimming led driver

Product parameters:

Model No.

Input

voltage(vAC)

Working

Frequency (Hz)

Output

voltage (vDC)

Output

Current (mA)

Output

power
(Watt)

Working

Temp.

IP rate



SMT-114-1750CD



100-265vAC 47~63Hz 980-114V 0-1750mA 200W -25~50°C IP67



SMT-080-2400CD



100-265vAC 47~63Hz 50-80V 0-2400mA 192W -25~50°C IP67



SMT-064-3300CD



100-265vAC 47~63Hz 40-64V 0-3300mA 210W -25~50°C IP67



SMT-045-4500CD



100-265vAC 47~63Hz 20-45V 0-4500mA 200W -25~50°C IP67



SMT-036-6500CD



100-265vAC 47~63Hz 15-36V 0-6500mA 230W -25~50°C IP67
  • wire requirements:18AWG*20CM
  • 3 years warranty(We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  • Constant current design with high accuracy.
  • International wide input voltage.
  • Wattage: 15w-200w
  • 8Hrs and 100% full load burn-in test.
  • High reliability designing solution
  • Cooling by free air convection
  • Suitable for LED lighting and moving sign applications
  • High efficiency,save energy ,protected environment
  • High stability and low ripple, increase light efficiency and decrease light attenuation
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant current
  • Passed high ,low temperature testing.
  • Integrity protection,over loading, over voltage over current

Environment:

  • Working Temperature : -40 ~ +50°C
  • Working Humidity : 20 ~ 95% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes

Safety:

  • Safety Standards :   EN61347-1 EN61347-2-13. IP40
  • Withstand Voltage :   I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
  • Isolation Resistance :  I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
  • EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
  • EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level

Application:

  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

0-10v dimmable 6500mA 230W ELV dimming led driver

Packaging & Shipping
Packing
N.W./pcs G.W/ctn Qty/ctn Carton Size(mm)
high power 230w 6500mA constant current dimmable led driver
1800g/pcs 19kg/ctn 10pcs 414*308*174mm

 Packing:
0-10v dimmable 6500mA 230W ELV dimming led driver




Company Information
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes...View this Supplier's Website

Our team

0-10v dimmable 6500mA 230W ELV dimming led driver

Factory & Equipments view

0-10v dimmable 6500mA 230W ELV dimming led driver

Our Services

  • Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial  experience. It will guarantee your order 100% safe
  • Price is negotiable if you have large quantity demand
  • 100% QC inspection Before Shipping
  • Best Quality & Best Service with Competitive price
  • Shipping will be the most economical for you and freight cost is informed in advance
  • consideration.decision for the shipping terms will be made according to your requirements
  • We have our engineer team, if you have any question about your LED applications, let  us know freely, we will give you the best solution
  • Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
  • OEM design & OEM packing welcome
  • Samples will be ready within 7 working days
FAQ

Q1. What's type power supply do you have?

A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI

       dimmable led drivers, enclosure power suppliers, power adapters.



Q2. What's shipping mode can we choose?

A2:1.FedEx/DHL/UPS/TNT/Express for samples;

      2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

      3. Customers specifying freight forwarders or negotiable shipping methods!



Q3. What's the MOQ?

A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4. What can you do if the product is broken?

A4: We promise to replace new ones to you if there is any defective happen during

      the warranty period, but we need pictures or video to prove the defective comes

      from our quality problem.



Q5. How about the protection of product?

A5: Most of our products have protection of short-circuit, overload, over voltage,

       over current and reserve polarity. About the specific product, please consult

       our sales stuff.



Q6. How about the transportation?

A6: For small order,express will be best.And for bulk order,sea ship way is best but

       take much time. For urgent orders,we suggest via air to airport plus our ship partner

       send to your door. We will cooperate with your choice.



Q7. What's the Payment do you have?

A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via

        T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the

        near future.
