Non-dimmable LED Driver

waterproof 2000mA 100w 0-10v dimmable led driver

waterproof 2000mA dimmable led driver; 2000mA 100w 0-10v dimmable led driver
  • item no.:

    SMT-050-2000CD
  • brand:

    SMARTS
inquiry now
product details

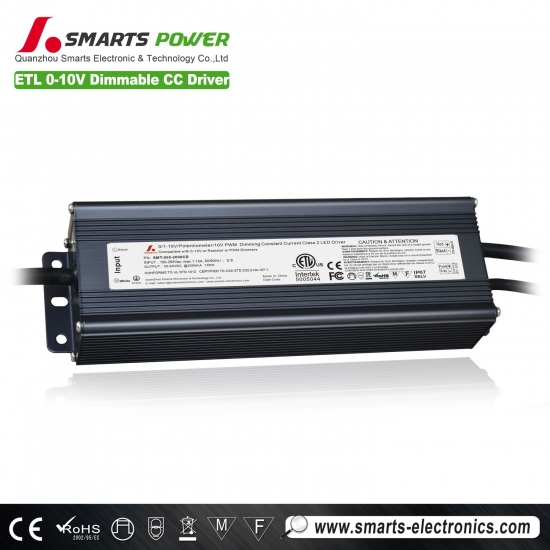

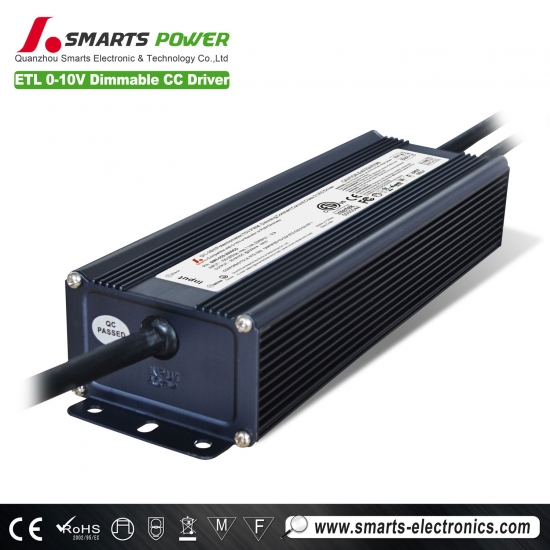

waterproof 2000mA 100w 0-10v dimmable led driver


Model

SMT-100-1050CD

SMT-071-1400CD

SMT-060-1750CD

SMT-050-2000CD

SMT-042-2400CD

Output

DC Current

1050mA

1400mA

1750mA

2000mA

2400mA

Current Accuracy

±5%

Voltage Range

55-100V

45-71V

40-60V

30-50V

25-42V

Rated power

105W

100W

100W

100W

100W

Input

Voltage Range

100265VAC

Frequency Range

4763HZ

PF

PF≧0.96/110V/PF≧0.98/220V

Full Load EfficiencyTyp))

>87%(110,220V)

>87%(110,220V)

>87%(110,220V)

>87%(110,220V)

>87%(110,220V)

AC Current (Typ.

1.08A/220VAC

0.504A/220VAC

1.10A/110VAC

0.522A/220VAC

1.12A/110VAC

0.537A/220VAC

1.122A/110VAC

0.533A/220VAC

1.20A/110VAC

0.560A/220VAC

Leakage current

3.5mA/110VAC, 3.8mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

≦280VAC

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environmet

Working TEMP.

-40+60℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level

Others

Weight

1.2Kg/pcs

Size

230*68.5*43mmL*W*H

packing

329*279*176mm/10pcs /CTN   inner box size:245*80*58mm

Notes

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top




  Product Description



0-10v Dimmable LED Driver.png

Model

Input voltage(vAC)

Working

Frequency

 (Hz)

Output voltage

(vDC)

Output

Current

power

(Watt)

Working.

 Temp

Protection

grade

SMT-050-2000CD

100-265V/170-375v

47~63Hz

30-50V

2000mA

100W

-40~50°C

IP67


  Features


  • Input range :100-265VAC / 170-375VAC
  • Built-in PFC function
  • Efficiency > 84%  / PF>0.9
  • Protections:Short circuit/over Voltage
  • Fully isolated aluminum housing
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Lifespan:(MTBF)50,000 hours



  Protection


  • Short Circuit:  Hiccup mode, recovers automatically after fault condition
  • Over voltage: <270VAC 0r =270VAC


  Environment parameter


  • Working temperature: -40~+60℃
  • Working humidity:20~90%RH,non-condensing
  • Storage TEM.,Humidity:  -40~+80℃,10~95%RH
  • TEMP.coefficient:  ±0.03%/℃(0~50℃)
  • Vibration:  10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes


  Safety &EMC


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  • EMC EMISSION:   Compliance toEN55015,EN61000-3-2 (> or=50%load)
  • EMC IMMUNITY :  Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)


  Application


  • Outdoor LED illuminating lights, LED Neon
  • LED City Decoration, LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels






  Packaging & Shipping


waterproof 2000mA 100w 0-10v dimmable led driver
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
1300    g 15 kg 10 pcs 414*308*174mm
