Non-dimmable LED Driver

900mA 81w dimmable led driver for 0-10v dimming

OEM 900mA dimmable led driver; 0-10v dimmable constant current led driver
  • item no.:

    SMT-090-0900CD
  • brand:

    SMARTS
inquiry now
product details

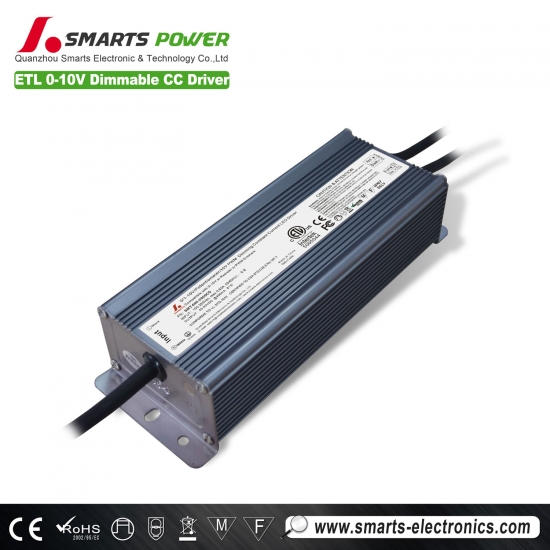

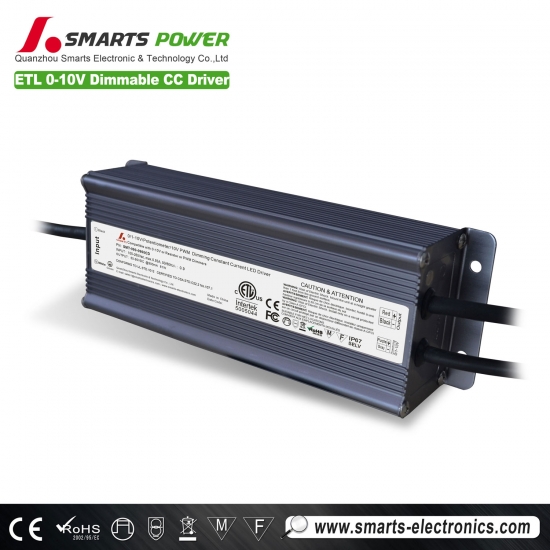

900mA 81w dimmable led driver for 0-10v dimming




  Product Description




Model

Input voltage(vAC)

Working

Frequency

 (Hz)

Output voltage

(vDC)

Output

Current

power

(Watt)

Working.

 Temp

Protection

grade

SMT-090-0900CD

100-265V

47~63Hz

50-90V

900mA

81W

-40~50°C

IP67



  Features


  • Input range :100-265VAC
  • Built-in PFC function
  • Efficiency > 84%  / PF>0.9
  • Protections:Short circuit/over Voltage
  • Fully isolated aluminum housing
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Lifespan:(MTBF)50,000 hours



  Protection


  • Short Circuit:  Hiccup mode, recovers automatically after fault condition
  • Over voltage: <270VAC 0r =270VAC


  Environment parameter


  • Working temperature: -40~+60℃
  • Working humidity:20~90%RH,non-condensing
  • Storage TEM.,Humidity:  -40~+80℃,10~95%RH
  • TEMP.coefficient:  ±0.03%/℃(0~50℃)
  • Vibration:  10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes


  Safety &EMC


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  • EMC EMISSION:   Compliance toEN55015,EN61000-3-2 (> or=50%load)
  • EMC IMMUNITY :  Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)



  Application


  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels





  Packaging & Shipping


900mA 81w dimmable led driver for 0-10v dimming
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
1100 g 13.2kg 10pcs 324*298*176mm
