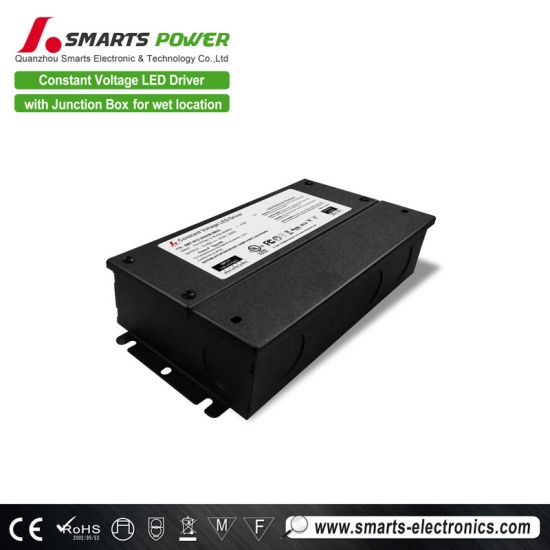

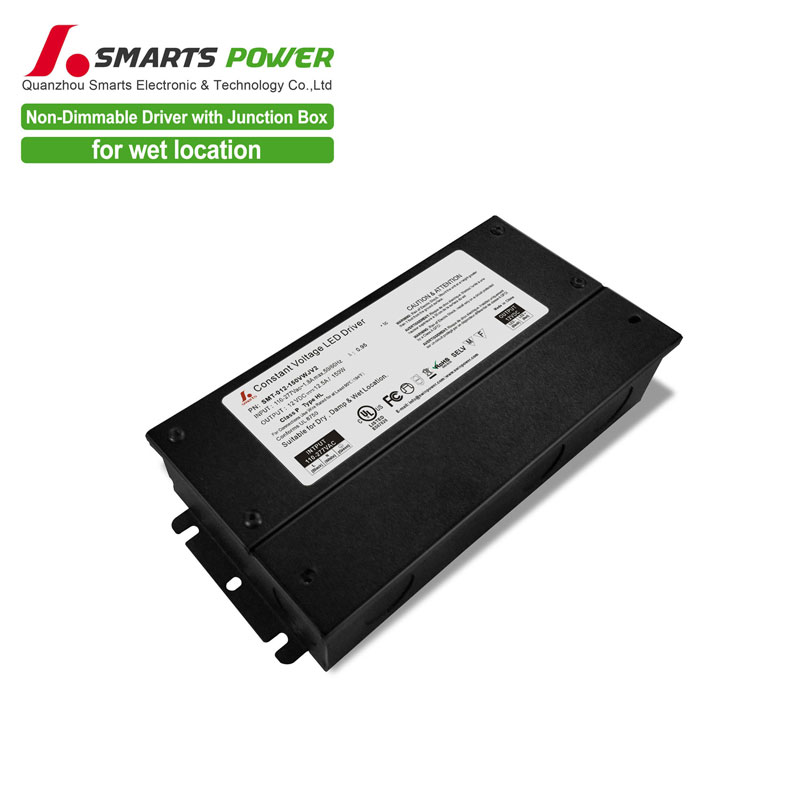

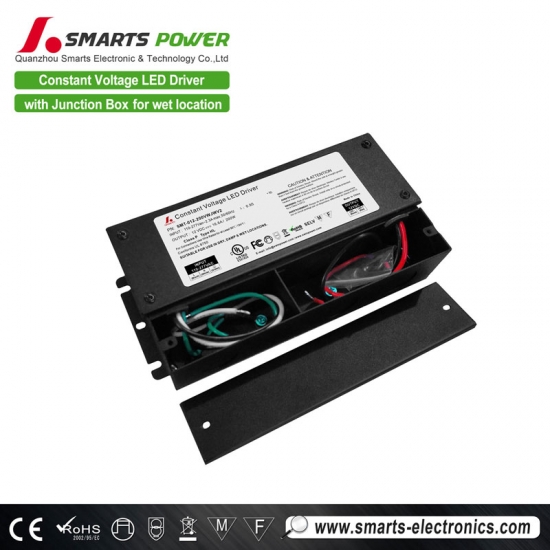

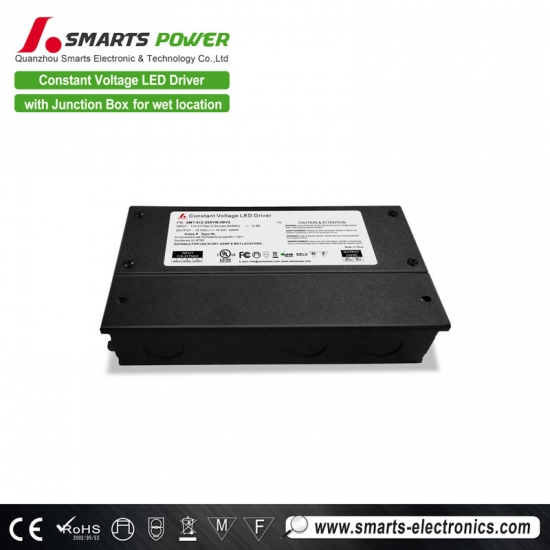

waterproof transformer 200w 12v low voltage for outdoor lighting
The waterproof transformer 12v low voltage 200-watt universal power supply works equally well whether powering a FlexFireLED Waterproof Strip Lights for architectural, residential, and commercial applications. Connect up to 100% of the maximum load.
Product parameters
Model
SMT-012-200VWJ (1.0 version)
SMT-012-200VWJV2 (2.0 version)
SMT-012-200VWJWV2 (3.0 version)
SMT-024-200VWJ (1.0 version)
SMT-024-200VWJV2 (2.0 version)
SMT-024-200VWJWV2 (3.0 version)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Voltage Tolerance
±0.5V
Load Regulation
±2%
±1%
±1%
Rated current
16.67A
8.33A
Rated power
200W
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor(Typ.)@ full load
0.99@120V ;0.98@230V ;0.97@277V
0.99@120V ; 0.97@230V ;0.96@277V
THD(Typ.)@ full load
<10% @120V <20%@230V <20% @277V
Efficiency(Typ.)@ full load
85%@120V 88%@230V 87%@277V
85%@120V 89%@230V 88%@277V
AC Current(Max.)
2.3A (100VAC)
Inrush Current (Typ.)
15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle, period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.5Kg
Size
1.0 version: 260*103*46mm / 2.0 version:260*105*45mm /3.0 version:260*125*45mm
packaging
10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

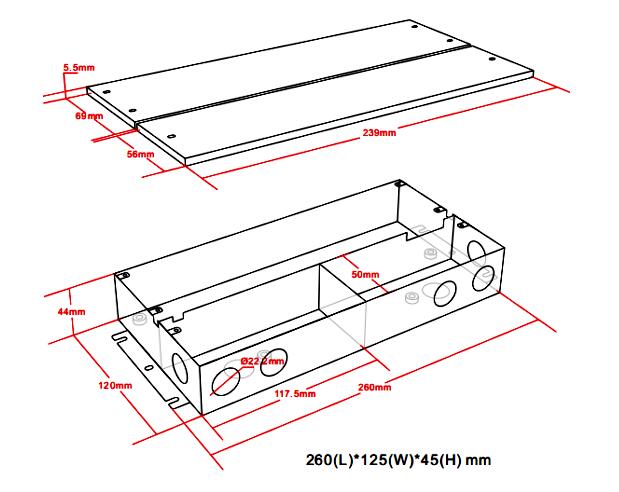

Mechanical Specification

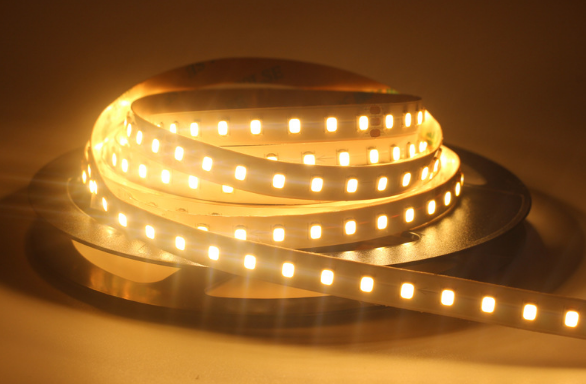

Compatible strip lighting Type
ColorBright™ LED strip lighting are UL Listed and use top quality LED chips, PCB, and resistors, it is a preferred provider together with waterproof transformer 12v low voltage for building contractors, renowned architects.
