Non-dimmable LED Driver

30W 12 Volt Dimmable LED Power Supply for LED Strips Lights

dimmable 12v led power supply with DALI Dimmable function from Smarts Electronics are compatible with the widest range of LED arrays from 20w up to 200Watt.dimmable 12v led power supply with DALI funtionc fromSmartscan matche well with BeveLED Cross Baffle Downlight from usailighting.
  • item no.:

    SMT-012-030VM
  • brand:

    SMARTS
  • Input Voltage:

    100-265VAC
  • Output Voltage:

    12VDC & 24VDC
  • Output Current:

    0-2500mA & 0-1250mA
  • Working Mode:

    DALI Dimming Constant Voltage
  • Certification:

    CE,ETL ,FCC,RoHS
  • Warranty:

    5 Years
inquiry now
product details

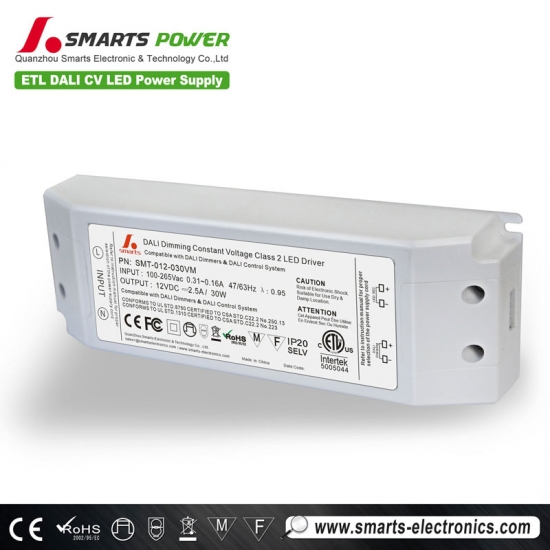

30W 12 Volt Dimmable LED Power Supply for LED Strips Lights


12 volt dimmable led power supply from Smarts Electronics offers flexibility in designing dimmable LED lights, this driver supports lighting applications up to 30watt, and  can be used under ambient temperature from -20℃ to +60℃.


  Specifications



Model

SMT-012- 030VM

SMT-024-030VM

SMT-036-030VM

SMT-048-030VM

output

DC Voltage

12V

24V

36V

48V

Voltage Tolerance

±0.5V

Rated current

0~2.5A

0~1.25A

0~0.833A

0~0.625A

Rated power

30W

input

Voltage Range

100~130VAC, 170~265VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF≧0.90/110V  / PF≧0.90/220V

Efficiency(Typ.)

>88%

>88%

>88%

>88%

AC Current(Typ.)

         [email protected]

        [email protected] 0.15A

Leakage current

﹤0.40mA/110VAC / ﹤0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Loading

≦120%

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes





Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015,EN61000-3-2,3 (≧50%loading)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Net.Weight

0.55Kg

Size

180*60*34mm(L*W*H)

packing

355*215*215mm/20pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load

and  25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

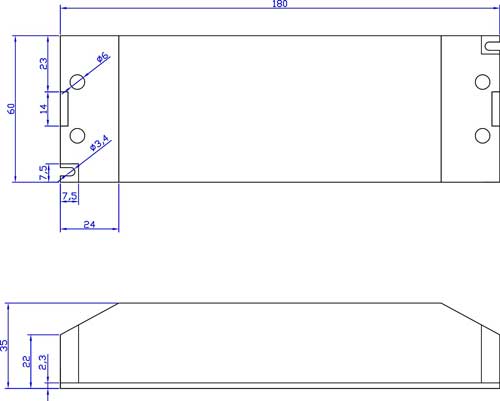

  Mechanical Specification


12 volt dimmable led power supply

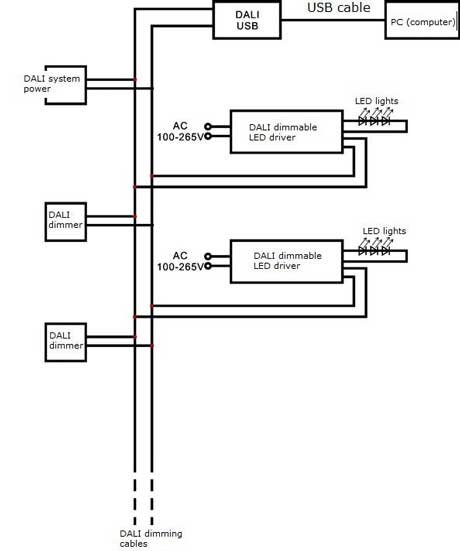

  Connection Diagram 1

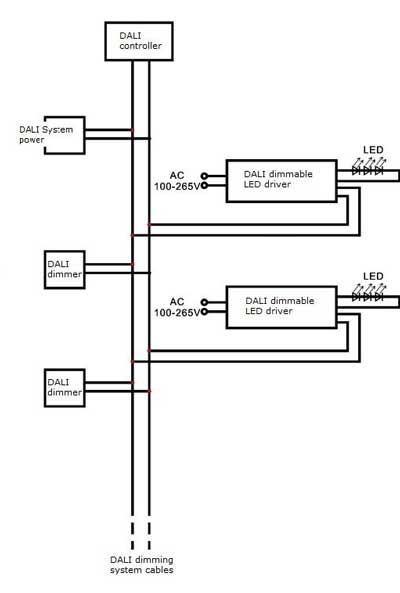

  Connection Diagram 2
12 volt dimmable led power supply
12 volt dimmable led power supply


  Compatible Lighting Type


30w led power supply are divided in to categories constant current and constant voltage,SMT-012-030VM has advantages over osram 30w power supply in the certificate, complete certificate can meet the needs of major markets. NanoLED Cylinder Downlight from usailighting brand can be matched well with 12v dc power supply for led lights.


LED driver 120W


  Related Products

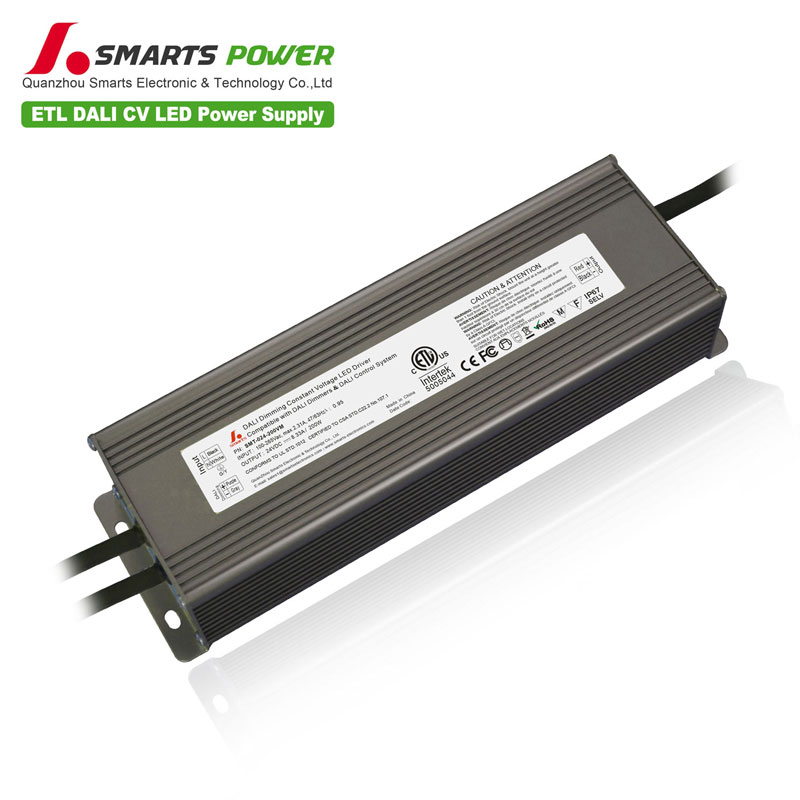

12 volt dimmable led power supplyDALI (Digital Addressable Lighting Interface) is internally recognized as the premier
