Non-dimmable LED Driver

DALI LED Driver 230v 12V 30w

Product Item: DALI Dimmable LED driver
  • item no.:

    SMT-012-030VM
  • lead time:

    15 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-265Vac
  • Output Voltage:

    12VDC
  • Output Current:

    0-3000mA
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL/cETL, CE, Rohs certifications
  • Warranty:

    5 Years
inquiry now
product details

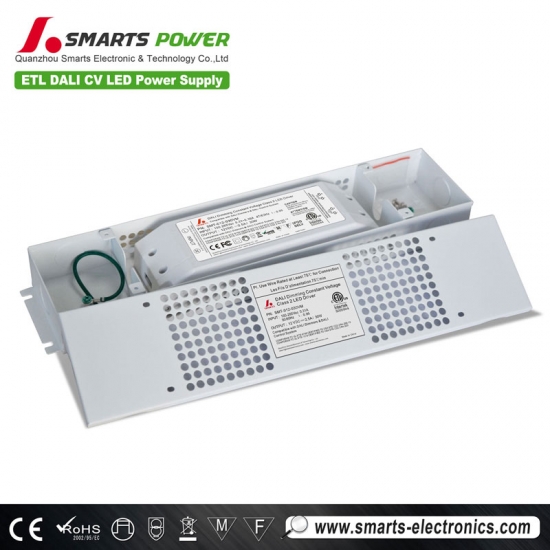

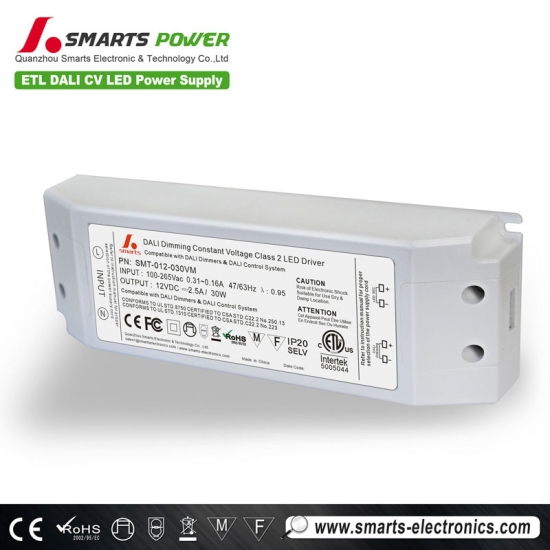

DALI LED Driver 230v 12V 30w



 Specification


Model

SMT-012-030VM

SMT-024-030VM

SMT-036-030VM

SMT-048-030VM

output

DC Voltage

12V

24V

36V

48V

Voltage Tolerance

±0.5V

Rated current

02.5A

01.25A

00.833A

00.625A

Rated power

30W

input

Voltage Range

100~130VAC, 170~265VAC

Frequency Range

4763HZ

Power Factor Typ.

PF≧0.90/110V  / PF≧0.90/220V

EfficiencyTyp.

>88%

>88%

>88%

>88%

AC CurrentTyp.

         0.34A@110VAC





        0.17A@220VAC

0.15A

Leakage current

0.40mA/110VAC / 0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Loading

120%

Environment

Working TEMP.

-40+60

Working Humidity

2090%RH, non-condensing

Storage TEM.,Humidity

-40+80℃,1095%RH

TEMP.coefficient

±0.03%/℃(050℃)

Vibration

10500Hz2G 10min./1 cycle,period for 60min. each along X,Y,Z axes







Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25/70%RH

EMC EMISSION

EN55015,EN61000-3-2,3 (50%loading)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV

Others

Net.Weight

0.55Kg

Size

180*60*34mmL*W*H

packing

355*215*215mm/20pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load

and  25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again

  Label   DALI LED Driver 230v 12V 30w
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


 Product parameters


working mode: constant voltage

dimming mode: DALI dimmable

produt cord:connecting terminal(IP20) / 18AWG*20CM

3 years warranty

(We promise to replace new ones to you if there is any defective happen during the warranty period)


 Product Features:


Universal AC input (100~265V)

Suitable for LED lighting and moving sign applications

designing standard: Class 2 power unit

Built-in active PFC function

High efficiency,save energy ,protected environment.

High stability and low ripple, increase light efficiency and decrease light attenuation.

Meet to safety standard and EMC

Assure LED stability long lift and light efficiency by constant voltage.

Integrity protection,over loading, over voltage ,over current.

Protections:Short circuit/Overload/Over temperature

Cooling by free air convection

100% full load burn-in test


 Environment parameter:


Working temperature:-40 -80°C

Store temperature:-40 -85°C

Working humidity:10-90%

Lifespan:(MTBF)50,000 hours

Case machine specifications

Case: plastic case


 Safety


Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529

Withstand Voltage : I/P-O/P: 3000KVAC

Isolation Resistance : I/P-O/P:100M Ohms/500VDC


 Applications


indoor LED illuminating lights

LED Neon, LED urban Decoration

LED Lighting Advertising,LED Display

Safety Protection Apparatus

Telecommunications, Networks

Vehicle Lights, Controller Panels

LED Driver/Power Supply


 F&

Q1. What's type power supply do you have?

A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI
dimmable led drivers, enclosure power suppliers, power adapters.

Q2. What's shipping mode can we choose?
A2:1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

Q3. What's the MOQ?
A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during
the warranty period, but we need pictures or video to prove the defective comes
from our quality problem.

Q5. How about the protection of product?
A5: Most of our products have protection of short-circuit, overload, over voltage,
over current and reserve polarity. About the specific product, please consult
our sales stuff.

Q6. How about the transportation?
A6: For small order,express will be best.And for bulk order,sea ship way is best but
take much time. For urgent orders,we suggest via air to airport plus our ship partner
send to your door. We will cooperate with your choice.

Q7. What's the Payment do you have?
A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via
T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the near future.
