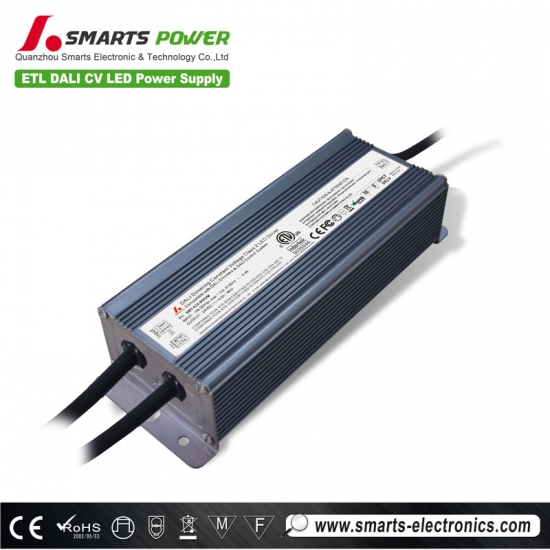

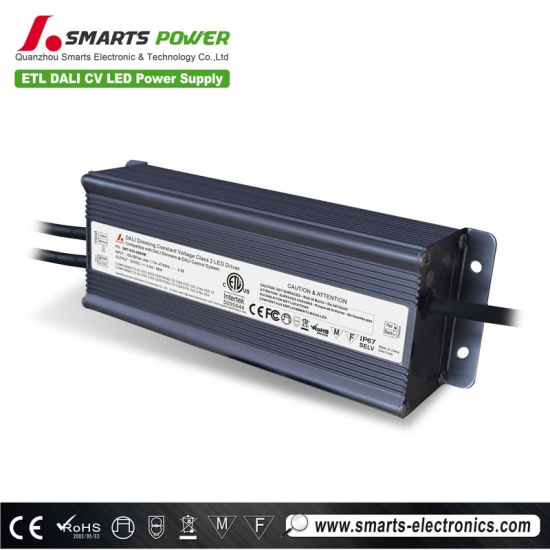

single output led dali dimming driver 100w waterproof 220v 24v dc power supply



Model

SMT-012-100VM

SMT-024-100VM

SMT-036-100VM

Output

DC Voltage

12VDC

24VDC

36VDC

Voltage Accuracy

±0.5V

Rated current

0~8.33A

0~4.16A

0~2.77A

Rated power

100W

100W

100W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.95/100V, 220V

Full Load Efficiency(Typ.)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

AC

Current(Typ.)

0.950A(110,220V)

1.030A(110,220V)

1.023A(110,220V)

Leakage current

<0.70mA/110, <0.72mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

is removed

Over Current

<1.4*I out

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13, IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level (surge4KV)

Others

Weight

1.3Kg

Size

230*69*45mm(L*W*H)

packing

355*215*215mm/10pcs/CTN    240*70*50 mm for inner box

Not

es

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and

   25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .











































































































Mechanical Specification

single output led dali dimming driver 100w waterproof 220v 24v dc power supply

  • Input Rubber cable  H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown or Black with AC (L),Blue or White with AC(N)
  • Input with Live Wire(L)  Neutral Wire (N)
  • Output LED SEC (LED+),(LED-)
  • Signal Dimming (DA1), (DA2)

Dimming Operation

  • Connect DALI driver signal cable with DALI dimmers, then dim after controller scan and assign address

Derating Curve

  single output led dali dimming driver 100w waterproof 220v 24v dc power supply

  • Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

Wire connecting diagram

Connecting solution 1:

single output led dali dimming driver 100w waterproof 220v 24v dc power supply

Connecting solution 2:


single output led dali dimming driver 100w waterproof 220v 24v dc power supply

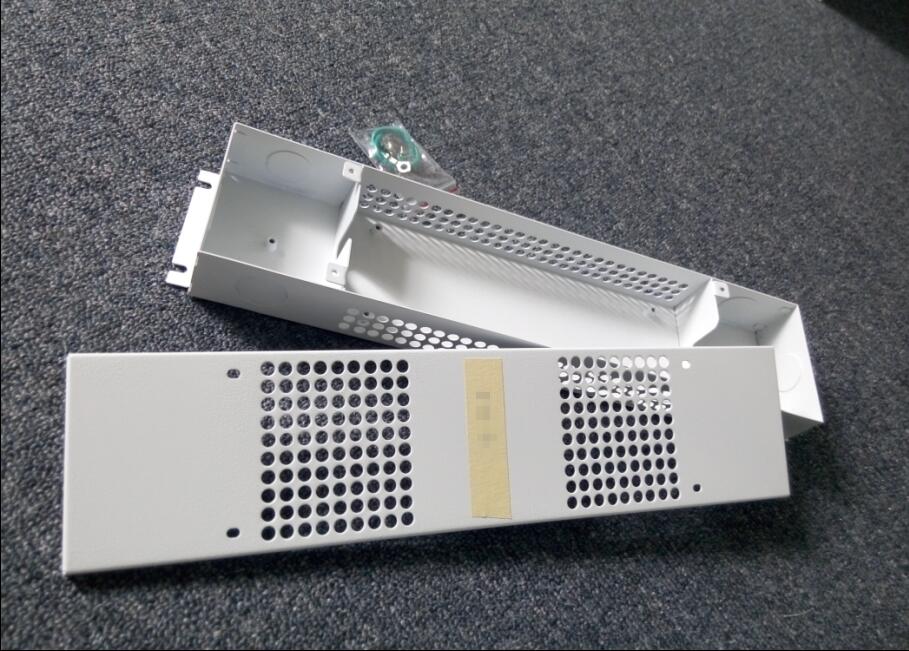

24v 100w Dali Dimmable LED Driver with ETL Junction Box
