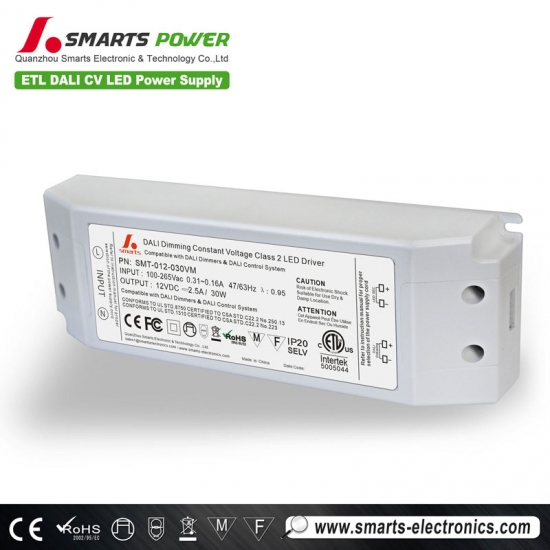

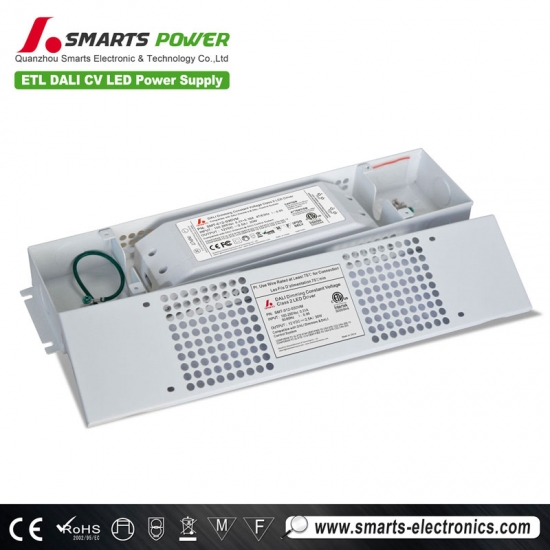

SMT-012-030VM is the 3 year warranty ETL FCC CE 12V 30W DALI & Push-Dim 2 in 1 dimmable LED driver whcih Compliance to worldwide safety regulations for lighting and Suitable for dry/damp/wet locations.
Specification
Model
SMT-012-030VM
SMT-024-030VM
SMT-036-030VM
SMT-048-030VM
output
DC Voltage
12V
24V
36V
48V
Voltage Tolerance
±0.5V
Rated current
0～2.5A
0～1.25A
0～0.833A
0～0.625A
Rated power
30W
input
Voltage Range
100~130VAC, 170~265VAC
Frequency Range
47～63HZ
Power Factor （Typ.）
PF≧0.90/110V / PF≧0.90/220V
Efficiency（Typ.）
>88%
>88%
>88%
>88%
AC Current（Typ.）
0.34A@110VAC
0.17A@220VAC
0.15A
Leakage current
﹤0.40mA/110VAC / ﹤0.50mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed
Over Loading
≦120%
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH, non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
EN55015,EN61000-3-2,3 (≧50%loading)
EMC IMMUNITY
EN61000-4-2,3,4,5,6,11(Surge 4KV）
Others
Net.Weight
0.55Kg
Size
180*60*34mm（L*W*H）
packing
355*215*215mm/20pcs/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
Label
Features for dali led driver
NOTE for waterproof dali driver 30w
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
Mechanical Specification for constant voltage led driver
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
※Signal Dimming （DA1）, (DA2） DALI Non polar！Connected to the BUS of the DALI Master.
※ When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming Operation
※Connect the Dali signal line to the Dali bus of the controller (the Dali Master).
After Dali Master scanning and address assignment, the driver can be successfully dimmed.
Please refer to Diagram 1
※Notice:In the market, some DALI controllers has bus-powered functions .If not,please add an extra power supply.(DALI Power).
※Any incorrect connecting of signal line and output line would damage the master.
