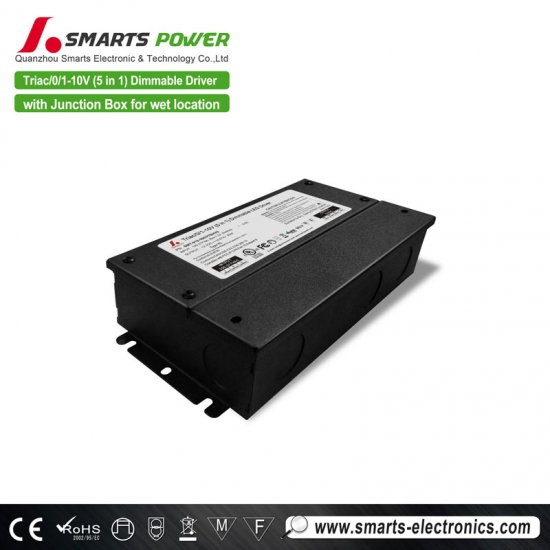

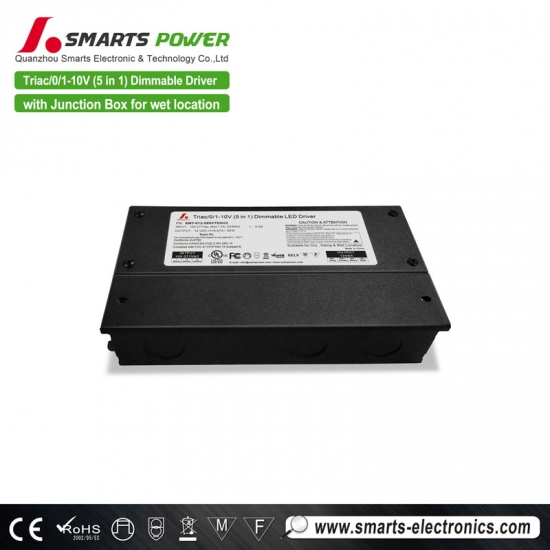

12 volt led dimmable transformer 80w triac 0-10v PWM led driver


The dimmable led transformer is designed for your LED outdoor lights for parking lots, plaza and campus for Lithonia Lighting.


  Specification


model

SMT-012-080VTDHV2

SMT-024-080VTDHV2

Output

DC Voltage

12V

24V

Rated Current

6.67A

3.33A

Rated Power

80W

80W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.98@120VAC  0.95@277VAC

0.98@120VAC  0.95@277VAC

THD(Typ.)@ full load

<20%

Efficiency(Typ.)@ full load

80% @120Vac      82%@277Vac

79%

82% @120Vac      85%@277Vac



AC Current(Max.)

1.15A@100Vac

Inrush Current (Typ.)

20A, 50%, 1.6ms @120Vac     25A, 50%, 1.2m,s @277Vac

Leakage current

<0.50mA

protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes



Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

About 1.3Kg

Size

220*94.5*40mm  (L*W*H)

packing

10PCS/CTN

 (L*W*H)

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

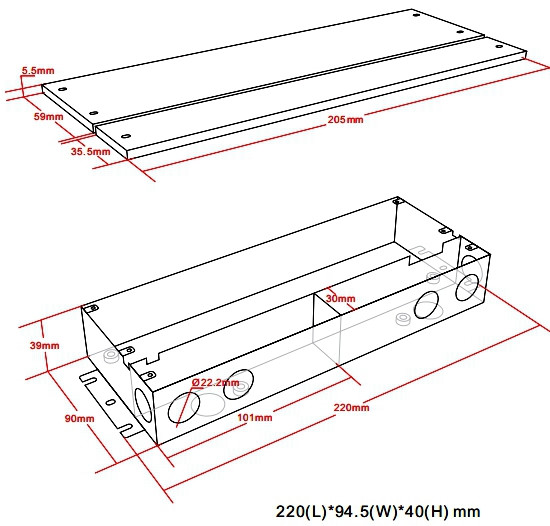

  Mechanical Specification


dimmable led transformer

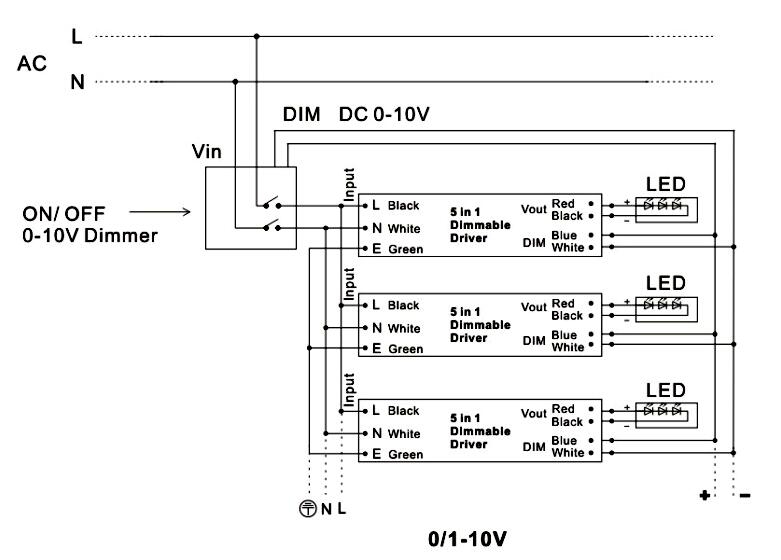

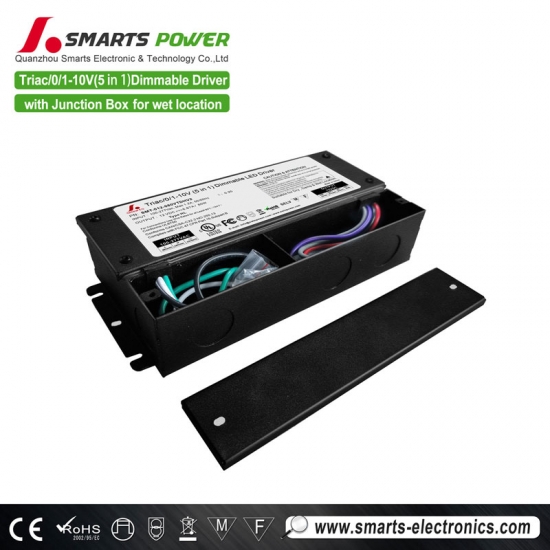

Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.



  Dimming operation


dimmable led transformer 12v


  Compatible Architectural Linear Lights


With 4600- 5500 lumens of output, it consumes only in the range of 40W- 80W dimmable led driver transformer, running more efficiently than traditional fluorescent lights.

Optional dimmer to hanging LED linear light to transition from bright to dark as per your mood.

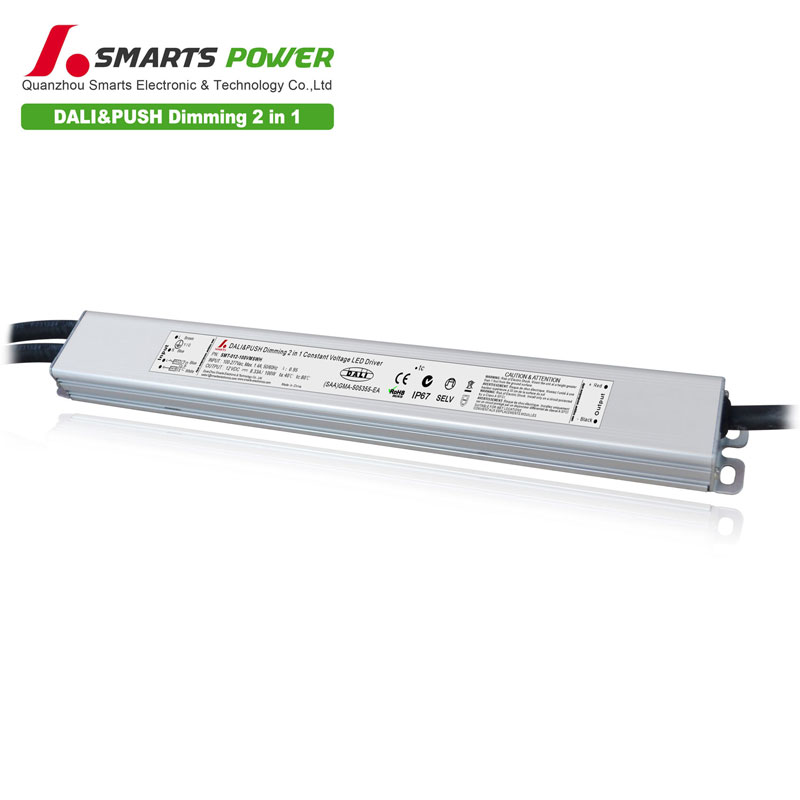

https://www.smarts-electronics.com/slim-type-dali-dimmable-100-watt-12-volt-transformer-for-led-strip_p946.html
