Non-dimmable LED Driver

UL approval 277v power supply 12volt 60w led triac 0 10v dimmable

Smarts led driver 60w is suitable for 110vac and 277vac. Combine triac dimming with  0-10v dimming. Phase cut dimmers such as LEGRAND 100-130v performs perfect after we tested.
  • item no.:

    SMT-012-060VTDHV2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc; 24vdc
  • Output Current:

    5A; 2.5A
  • Working Mode:

    constant voltage
  • Certification:

    UL cUL
  • Warranty:

    7 years
inquiry now
product details

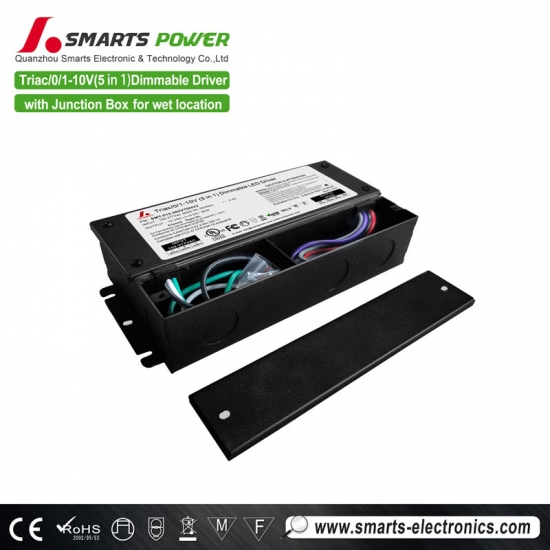

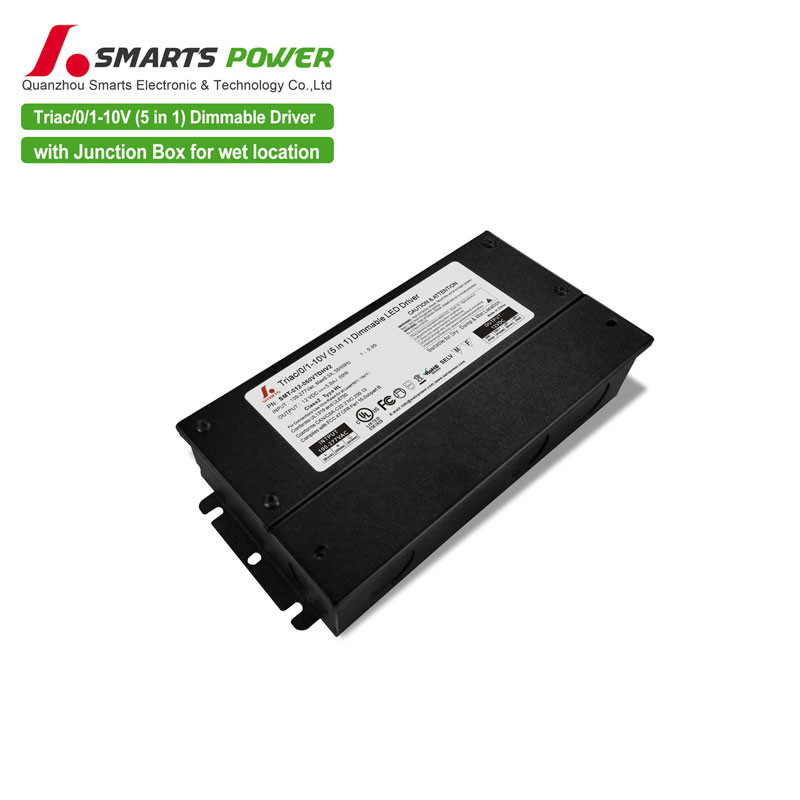

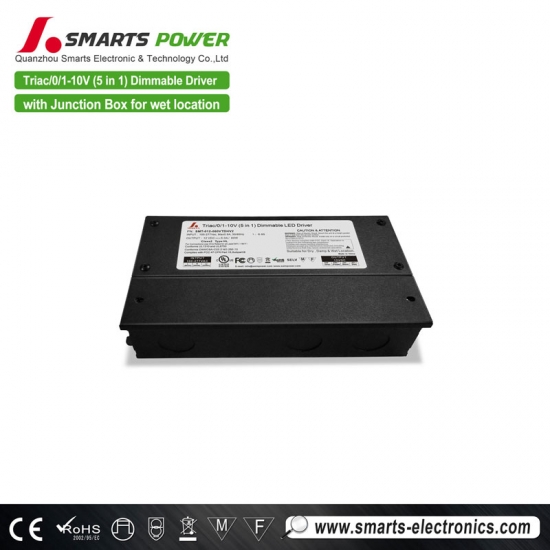

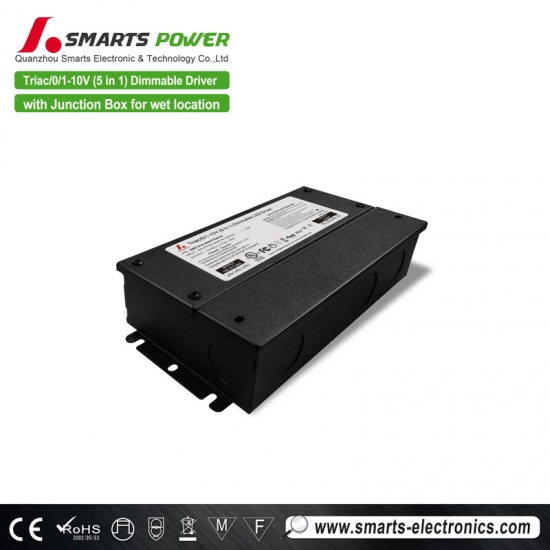

UL approval 277v power supply 12volt 60w led triac 0 10v dimmable


This 277v power supply 60w led  is growing in popularity in North American because of safe design and high quality. Class 2, Class P, type HL is conformed. 0-10v LUTRON dimmer 120-277v won't let you down if you do the testing.


  Specification



model

SMT-012-060VTDHV2

SMT-024-060VTDHV2

Output

DC Voltage

12V

24V

RatedCurrent

5A

2.5A

RatedPower

60W

60W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.98@120VAC  0.95@277VAC

0.98@120VAC  0.95@277VAC

THD(Typ.)@ full load

<20%

Efficiency(Typ.)@ full load

83% @120Vac      85%@277Vac

79%

83% @120Vac      84%@277Vac



AC Current(Max.)

0.5A@100Vac

Inrush Current(Typ.)

14A, 50%, 780us @120Vac     15A, 50%, 660us @277Vac

Leakage current

<0.50mA

protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault conditionisremoved

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

About 1.1Kg

Size

188*94.5*40mm(L*W*H)

packing

10PCS/CTN

 (L*W*H)

Notes

1. All parameters NOT specially mentioned are measured at110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

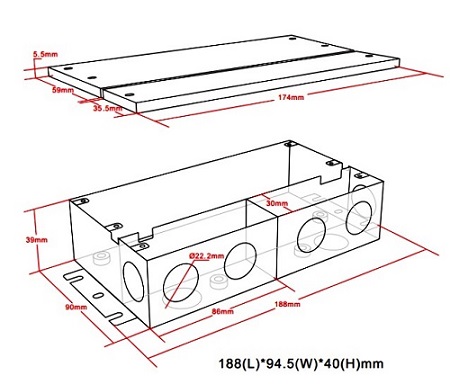

  ■ Mechanical Specification





277v power supply 60w led



l Input wire Black and White to be connected to AC L and N ,Green wire go ground,

l Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).

l Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

l Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.



  ■Connecting Diagram

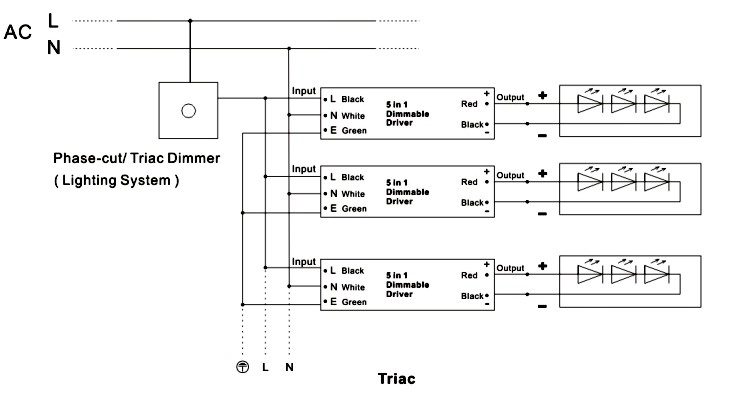

Ø Using TRIAC/Phase cut dimming

1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

2.Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.

3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

277v power supply 60w led

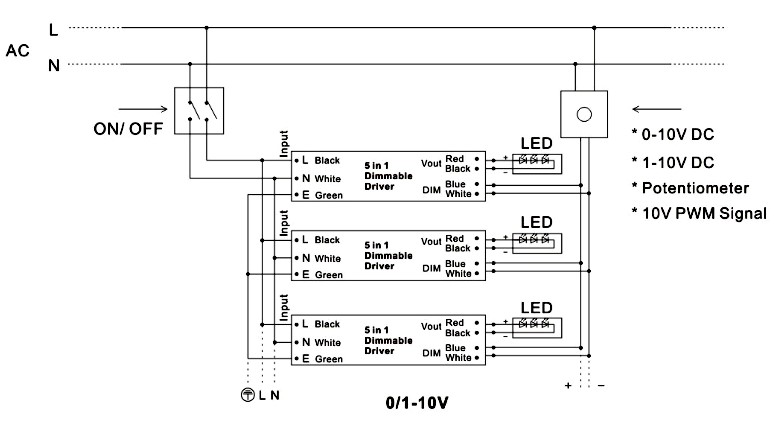

Ø Using 0-10/1-10V dimming

277v power supply 60w led

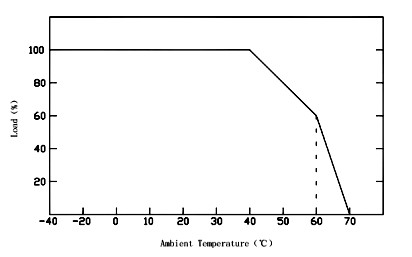

  ■Derating Curve


  277v power supply 60w led

l Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.



  ■ Instruction:


l This driver should be installed by qualified and professional person;

l Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

l Ensure that wiring is correct before test in order to avoid light and power supply damage;

l If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com  Or take a phonecall: 0086-18016688251

Our official website: www.smarts-electronics.com  or www.swinpower.com



  Compatible Dimmer Type


With an update version, the UL led driver dimmable led 60w meet T24 standard, PWM output 20KHZ and starting time>0.5s.  Smarts type is s superior than Magnetic dimmable led driver in quality.


UL led driver dimmable led 60w
