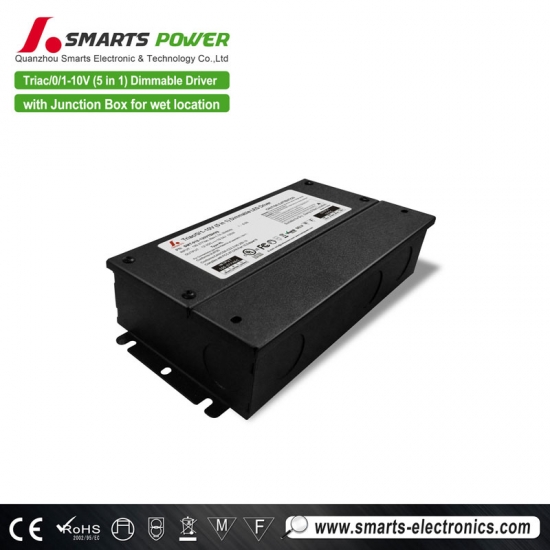

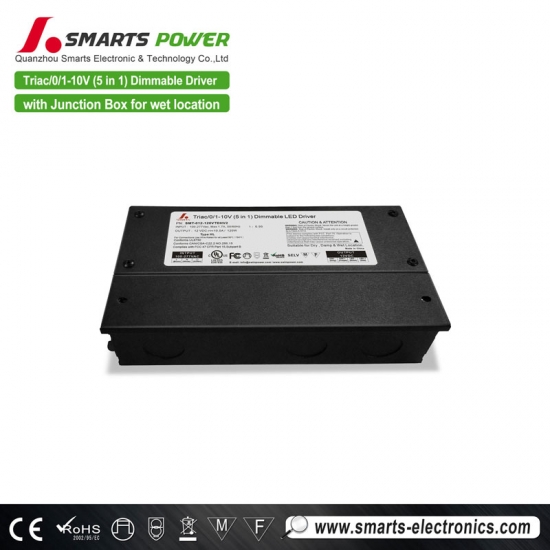

Non-dimmable LED Driver

120w Triac and 3 in 1 12v 24v constant voltage dimmable led driver pwm led driver

This dimmable led driver 120v is made for north American with high safe standard. The knockouts is 22mm that meet North American demand. It operates well with Lutron dimmer 277v or 110v.
  • item no.:

    SMT-012-120VTDHV2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12vdc 24vdc
  • Output Current:

    10A 5A
  • Working Mode:

    5 in 1 dimming
  • Certification:

    UL cUL
  • Warranty:

    7 YEARS
inquiry now
product details

120w Triac and 3 in 1 12v 24v constant voltage dimmable led driver  pwm led driver


Smarts 120w led driver is T24/JA8 standard. Starting time less than 0.5 mins. If you have a high requirement for that, this drivers won't let you down. Certainly it shows perfect compatibity with 0-10v dimmer like Eaton 120-277VAC.


  Specification



model

SMT-012-120VTDHV2

SMT-024-120VTDHV2

Output

DC Voltage

12V

24V

Voltage Regulation

±0.5%

Rated current

10.0A

5.0A

Voltage Tolerance

±0.5V

Load Regulation

±2%

±1%

±2%



Rated power

120W

120W

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor@ full load

0.99@120VAC  0.96@277VAC

0.98@120VAC  0.95@277VAC

THD(Typ.)@ full load

<20%

Efficiency(Typ.)@ full load

82% @120Vac    83%@277Vac

79%

82% @120Vac   84%@277Vac



AC Current(Max.)

1.7A@100Vac

Inrush Current(Typ.)

20A, 50%, 1.6ms @120Vac     25A, 50%, 1.2m,s @277Vac

Leakage current

<0.50mA

protection

Short Circuit

shut down o/p voltage, re-power on to recover afterfault conditionisremoved

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage,automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes



Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

About 1.3Kg

Size

220*94.5*40mm  (L*W*H)

packing

10PCS/CTN

 (L*W*H)

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

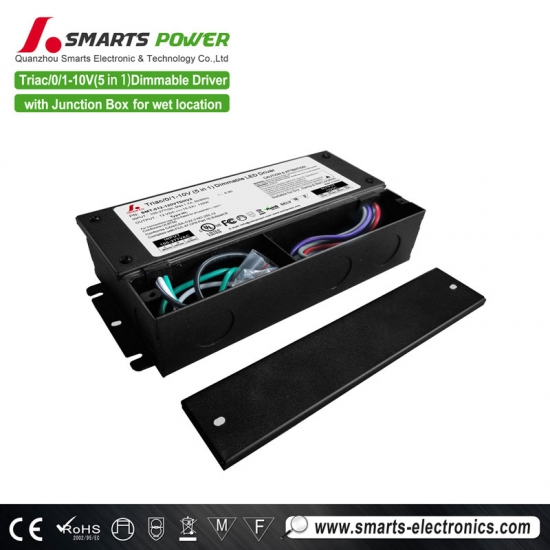

  ■ Mechanical Specification



120w led driver



Ø Input wire Black and White to be connected to AC L and N ,Green wire go ground,

Ø Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).

Ø Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

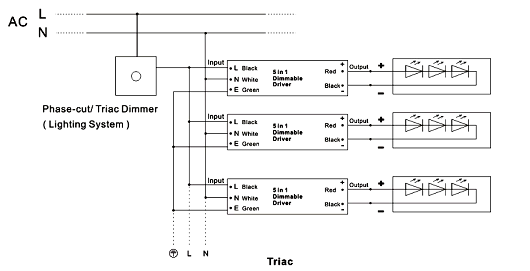

  ■ Connecting Diagram



Ø Using TRIAC/Phase cut dimming

1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

2. Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.

3. Please try to use dimmers with power at least 1.5 times as the output power of the driver.

120w led driver

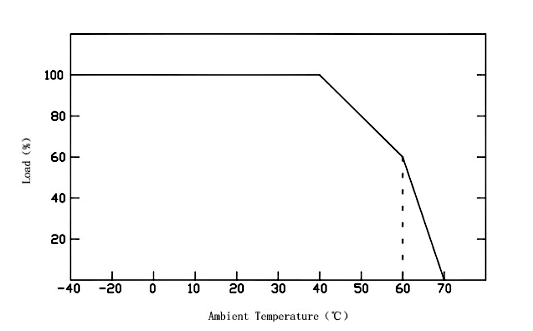

  ■Derating Curve


  120w led driver



Ø To extend their life, please refer to the Derating Curve and derate according to the temperature.



  ■ Instruction:


Ø This driver should be installed by qualified and professional person;

Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;

Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com  Or take a phonecall: 0086-595-27256889



Our official website: www.smarts-electronics.com  or www.swinpower.com



  Compatible Light Type


The driver is not only a 3 in 1 dimming mode, but can be work well with triac LEDs.  The output range varies from 30w to 384w. All of them got UL certificates ans provide 7 years warranty. 12v 24v led strips are recommended, like ustellar tech strips lights.





3 in 1 dimming mode


  Related Products

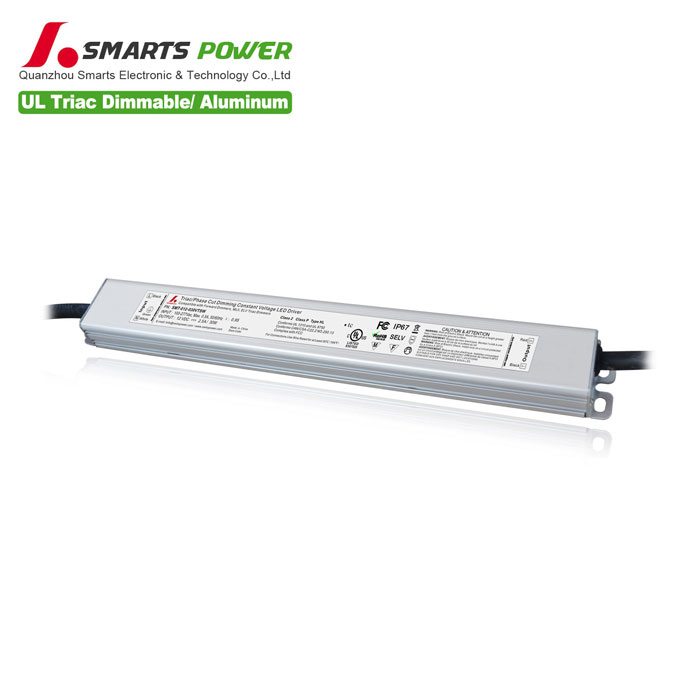

triac dimming driver
