Non-dimmable LED Driver

277v led driver dimmable power supply UL triac 0-10v dimmable 150w

Constant voltage 5 in 1 dimming 150 watt led power supply are the driver of choice to pair with 120V switches, low voltage LUTRON DVELV-300P-WH dimmers.
  • item no.:

    SMT-012-150VTDHV2
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12v
  • Output Current:

    12.5A
  • Working Mode:

    CV
  • Certification:

    UL, FCC, CE, ROHS
  • Warranty:

    7 years
inquiry now
product details

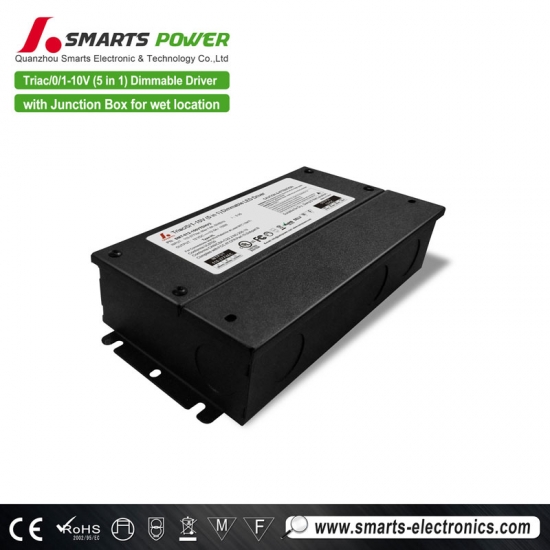

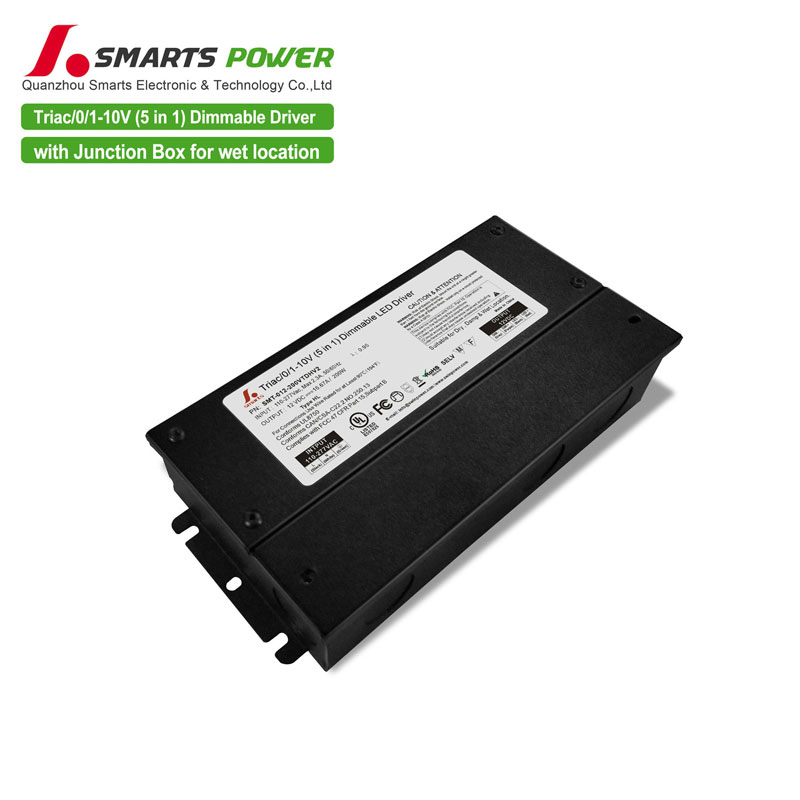

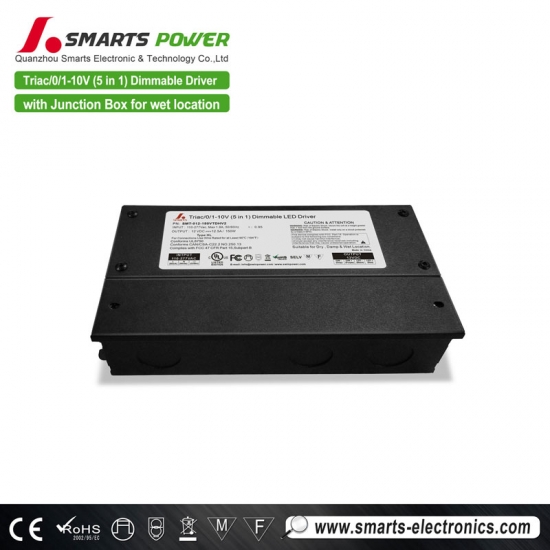

277v led driver dimmable power supply UL triac 0-10v dimmable 150w

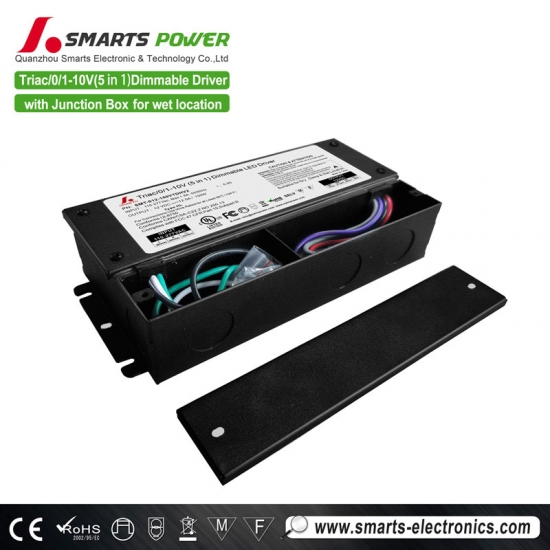

Constant voltage 150 watt led power supply can effectively power Aspect dimmable strip lights, light bars, and more, up to 150-watts. It has an integrated junction box, as well as short-circuit, overload, and over-temperature protection.


  Product parameters


model

SMT-012-150VTDHV2 (1.0 version)

SMT-012-150VTDHWV2 (2.0 version)

SMT-024-150VTDHV2 (1.0 version)

SMT-024-150VTDHWV2 (2.0 version)

Output

DC Voltage

12V

24V



Voltage Regulation

±0.5%



Rated current

12.5A

6.25A



Voltage Tolerance

±0.5V



Load Regulation

±2%

±1%

±2%





Rated power

150W

150W

Input

Voltage Range

110-277VAC



Frequency Range

47-63Hz



Power Factor@ full load

0.[email protected]  0.[email protected]

0.[email protected]  0.[email protected]



THDTyp.@ full load

<20%



Efficiency @ full load

85% @120Vac      86%@277Vac

79%

85% @120Vac      87%@277Vac





AC CurrentMax.

1.8A@100Vac



Inrush Current Typ.

15A, 50%, 1.4ms @120Vac     30A, 50%, 1.4m,s @277Vac



Leakage current

<0.50mA

protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed



Over Loading

≤120% constant current limiting, auto-recovery



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40+60℃ (see below derating curve)



Working Humidity

2090%RH, non-condensing



Storage TEMP. Humidity

-40+80℃1095%RH



TEMP .coefficient

±0.03%/℃050℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:1.88KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B

Others

Weight

About 1.8Kg



Size

1.0 version: 260*105*45mm / 2.0 version: 260*125*45mm




packing

10PCS/CTNL*W*H

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

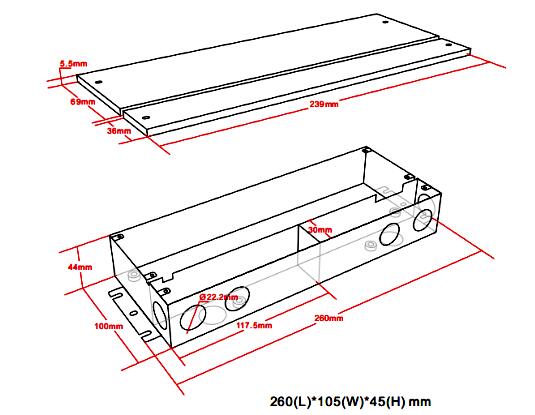

  Mechanical Specification


150 watt led power supply


Input wire Black and White to be connected to AC L and N ,Green wire go ground,

Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).

Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

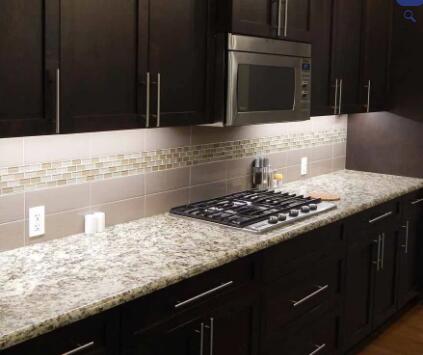

  Compatible strip lighting Type


Waterproof IP65 LED World Inc Strip lights are perfect for lighting professionals as well as home owners with a do-it-yourself attitude.The strips can be quickly cut down to size and come with double-sided 3M adhesive tape, adding to the ease of installation. They can be powered from constant 12VDC 277v led driver dimmable power supply.


150 watt led power supply


  Related Products


277v led driver dimmable power supplyThe 277v led driver dimmable power supply with dimming capability can dim the LED light output over the full range from 100% to 0%.


Mode:SMT-012-200VTDHV2
intput voltage:100~277V AC
Size :  260*105*45mm
100% full load burn-in test
