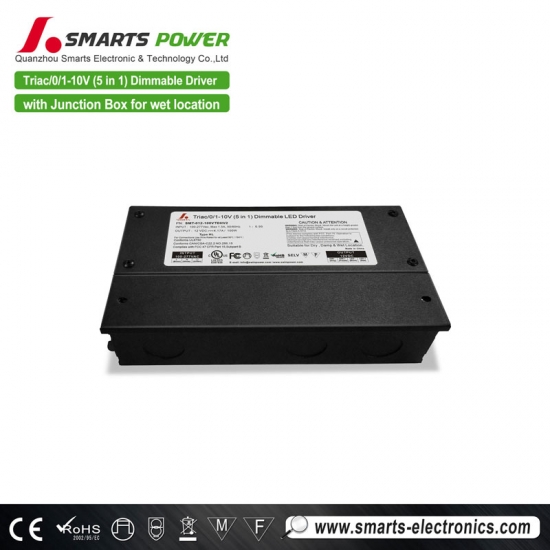

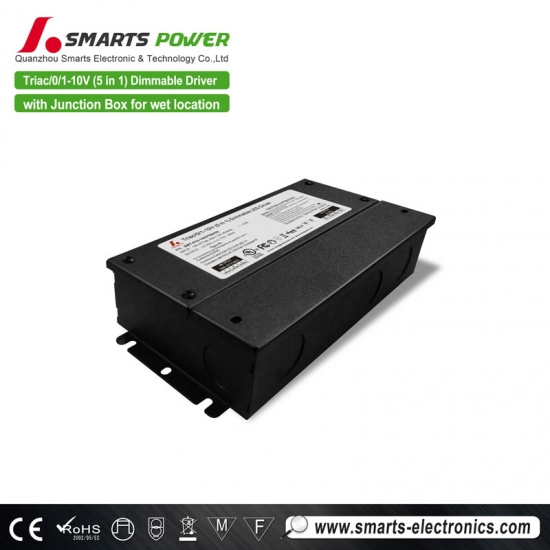

110v 100w 277v 0 10v triac dimmable led driver 12v 24v with junction box
This 277v led driver has wide input range from 100v-277v. Meet T24 standard, PWM output 20KHZ, and the starting time is less than 0.5s. If you have any requirement of the T24 standard, this driver is quite suitable. 0-10v dimmer such as Eaton 100-130v can also work well.
Specification
|
model |
SMT-012-100VTDHV2 |
SMT-024-096VTDHV2 |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
8.33A |
4.0A |
|
|
Voltage Tolerance |
±0.5V |
||
|
Load Regulation |
±1%
|
||
|
Rated power |
100W |
96W |
|
|
Input |
Voltage Range |
100-277VAC |
|
|
Frequency Range |
47-63Hz |
||
|
Power Factor(Typ.)@ full load |
0.98@120VAC 0.95@277VAC |
||
|
THD（Typ.）@ full load |
<20% |
||
|
Efficiency（Typ.）@ full load |
83% @120Vac 86%@277Vac 79% |
||
|
AC Current（Max.） |
1.3A@100VAC |
||
|
Inrush Current（Typ.） |
20A, 50%, 1.6ms |
||
|
Leakage current |
<0.50mA |
||
|
protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault conditionisremoved |
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
|
|
Working Humidity |
20～90%RH, non-condensing |
||
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP .coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
About 1.3Kg |
|
|
Size |
220*94.5*40mm (L*W*H) |
||
|
packing |
10PCS/CTN （L*W*H） |
||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
||
 |
 |
 |
 |

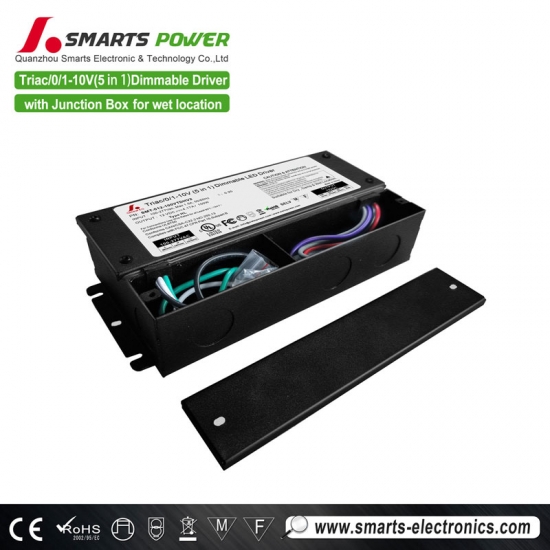

■Mechanical Specification:
Ø Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Ø Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Ø Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
■Connecting Diagram

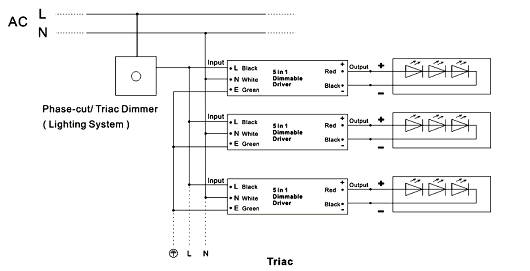

Ø Using TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2. Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3. Please try to use dimmers with power at least 1.5 times as the output power of the driver.

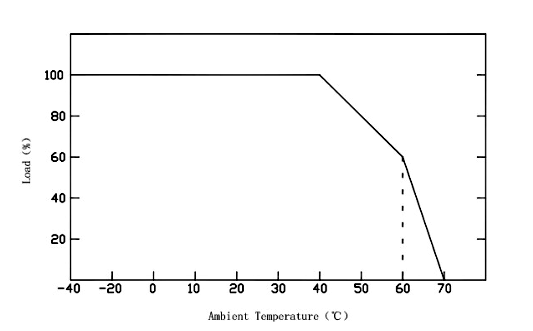

■Derating Curve
Ø To extend their life, please refer to the Derating Curve and derate according to the temperature.
■ Instruction:
Ø This driver should be installed by qualified and professional person;
Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;
Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 0086-595-27256889
Our official website: www.smarts-electronics.com or www.swinpower.com
Compatible light Type
The pwm dimming led driver shows two dimming mode. According to your needs and select triac dimming or 0-10v dimming. Mostcoxotech 12v 24v LED modules can achieve smooth dimming in principle.
Related Products

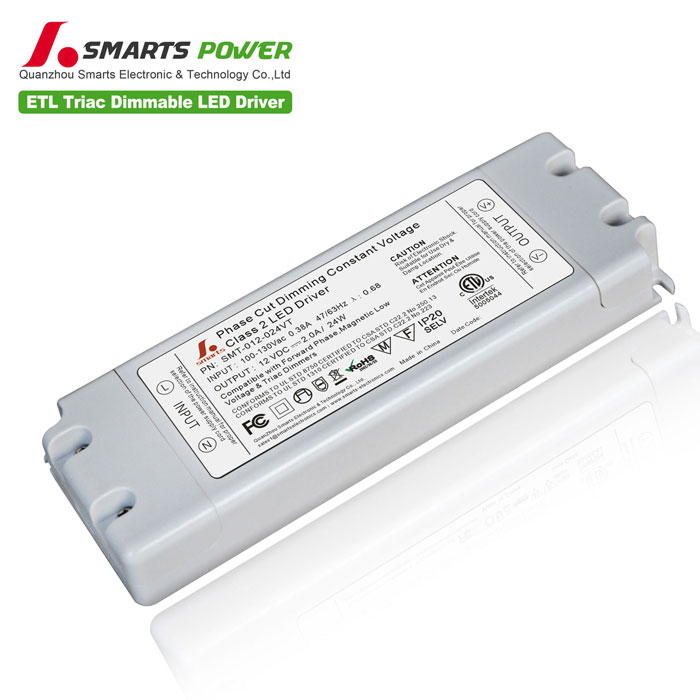

The triac dimmable led driver 12v is 24watt and without the limit of minimum load. ETL, cETL listed and given 5 years warranty. Smooth dimming and no flicker.
