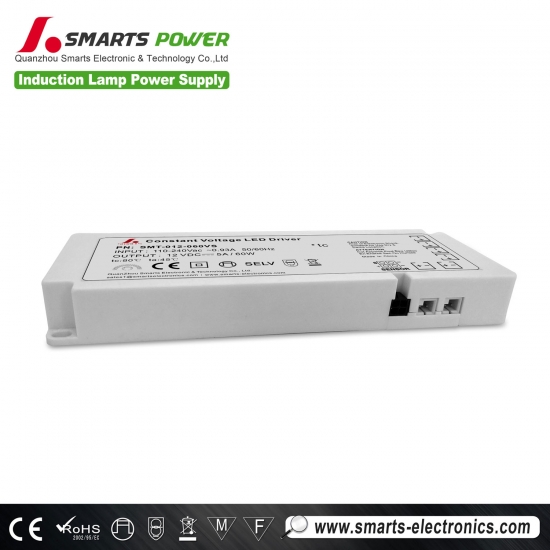

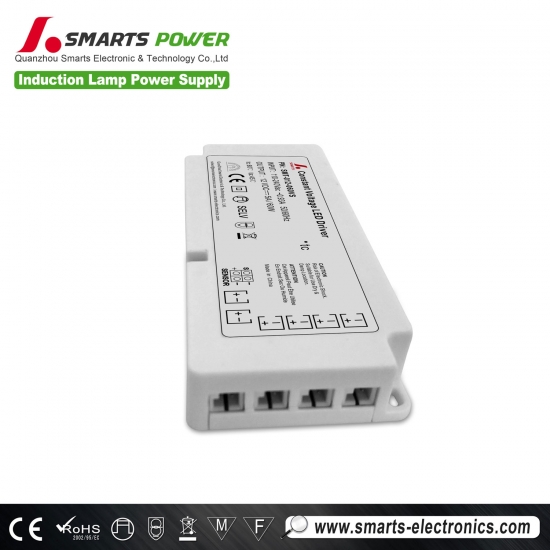

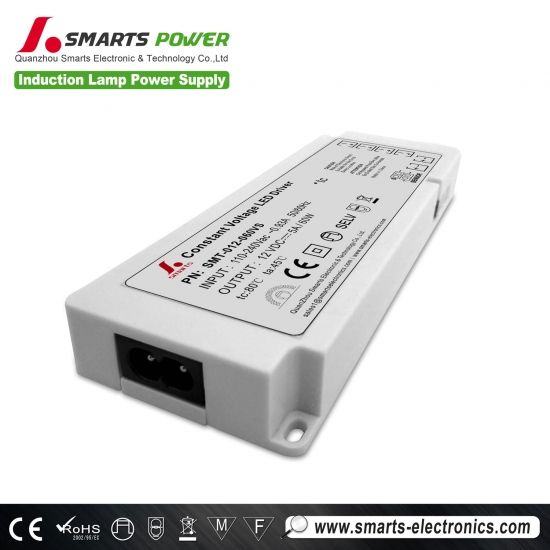

12 volt plug in transformer 60w led transformer
The 60w led transformer are used Commercial Grade Weatherproof string lights and can be used for permanent installations of LED strings from Bioluz LED.
Specification
SPECIFICAION
MODEL
SMT-012-060VS
OUTPUT
DC VOLTAGE
12V
RATED CURRENT
5A
CURRENT RANGE
0-3A
RATED POWER60
W
RIPPLE&NOISE(max)
＜150mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
100-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
>84%
AC CURRENT(Typ.)
0.2A/220VAC
PROTECTION
Short circuit
Protection type:Hiccpe mode,recovers automatically after condition is removed
Overload
5.5A
ENVIRONMENT
WORKING TEMP.
-10~+40℃ (Refer to output load derating curve)
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;SAA approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
NOTE
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
 |
 |
 |
 |

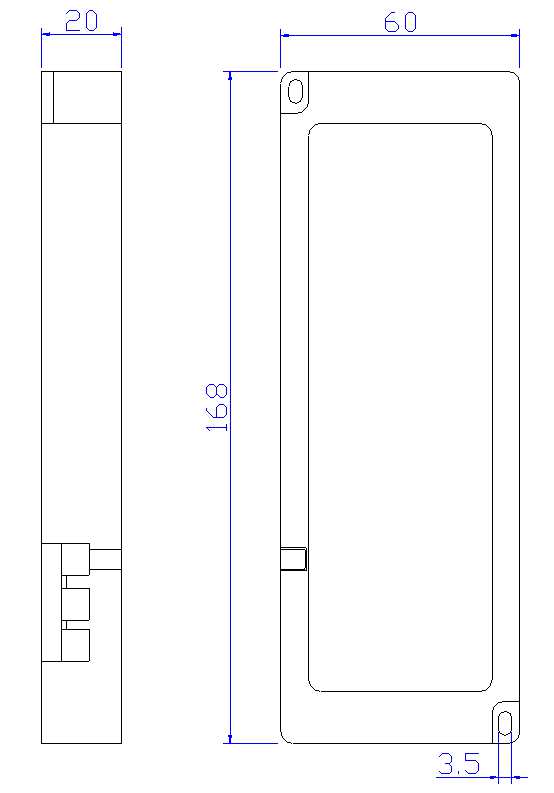

Mechanical Specification
① AC socket:DB-8
② Sensor switch socket:5557-3.0-2*2AW
③ DC socket:TCJ8H 6PCS
Cable Model of input : 2 pins plug power cord (VDE 18AWG wires)
output cord suggestion: H03VV-F 2*0.75mm2(red, black)
Compatible LED UP and DOWN square light Type

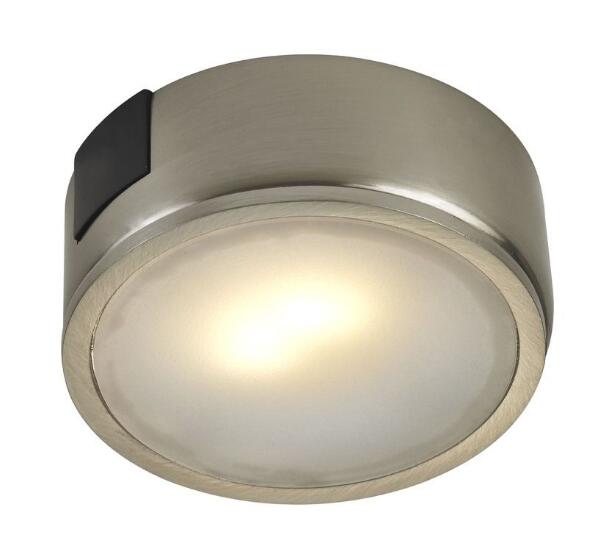

As a professional led transformer manufacturers, we are delicated to provide with high quality led driver with your LED lighting. The following picture is detailed specifications about the 120 Volt Satin Nickel LED Puck Light Surface Mount 3000K 260 Lumens.
Related Products
|

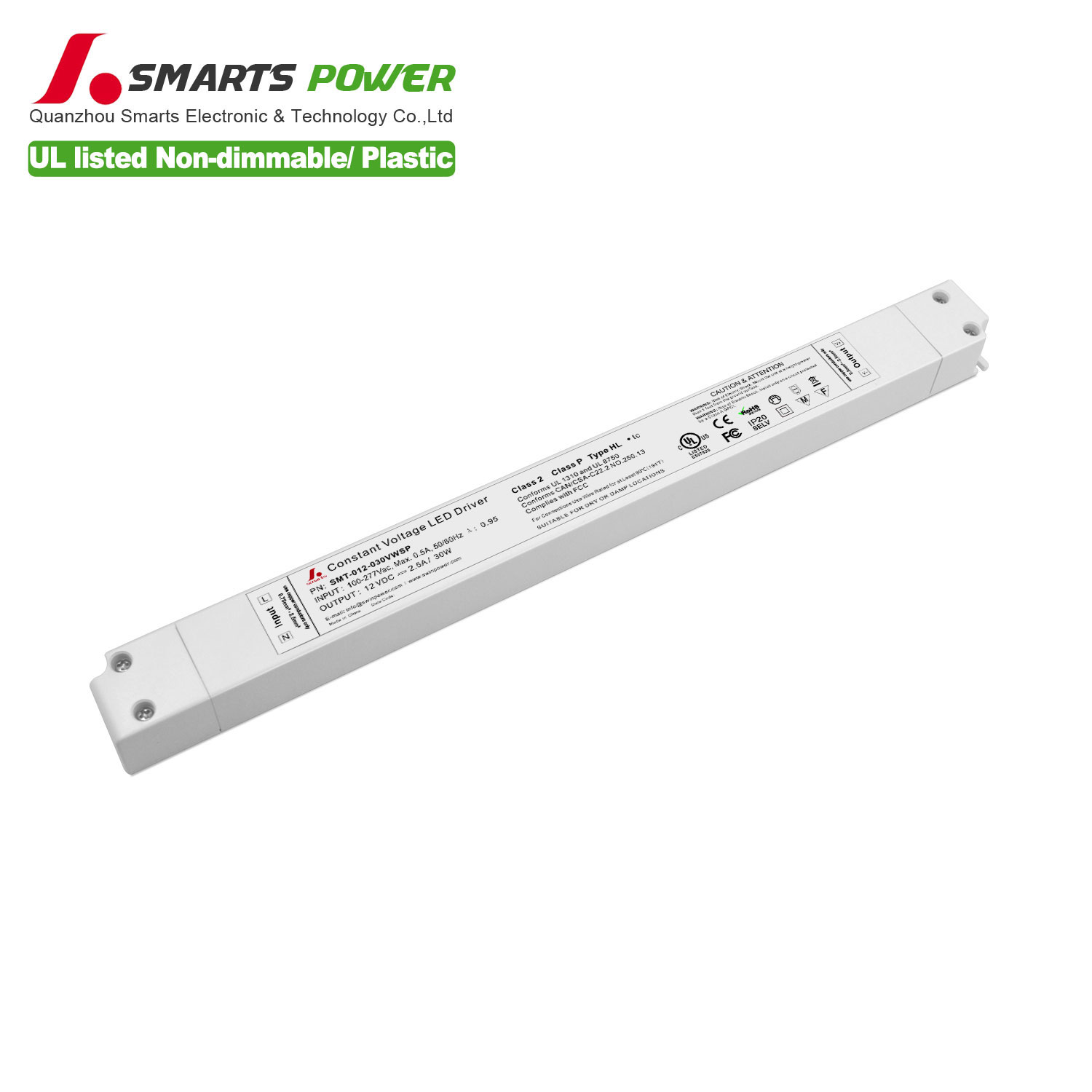

Mode：SMT-012-030VWSP |
